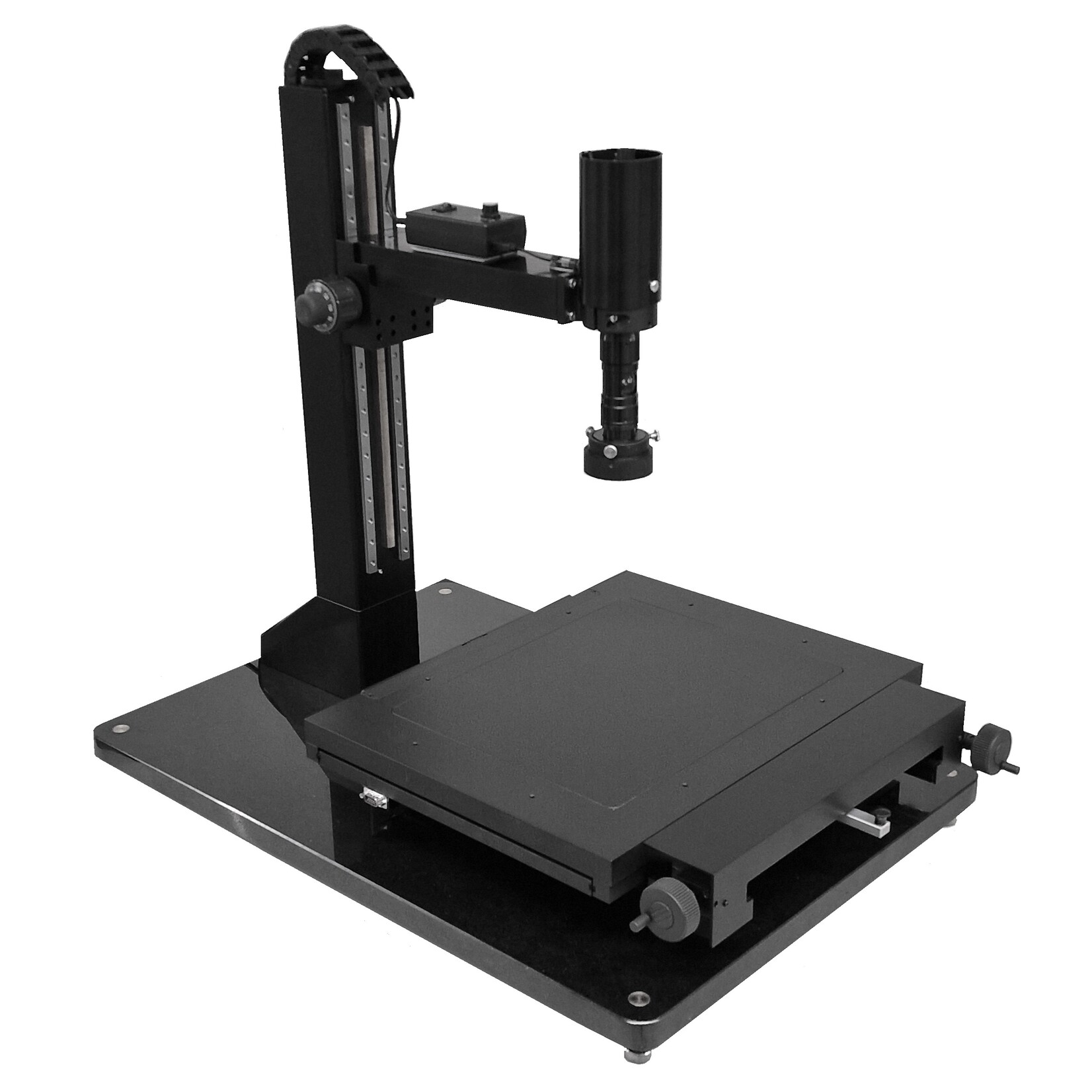

Discover our high-precision video measuring microscope with motorized zoom system, which has been specially developed for demanding measuring tasks in quality assurance, production, and laboratories. The combination of state-of-the-art optics, precise mechanics, and intelligent lighting enables reliable and efficient measurement—even with frequently changing magnifications.

Main features of the system:

KITO-MOT USB 3.0 motorized zoom system for reliable measurements

The integrated KITO-MOT USB 3.0 motorized zoom system offers exceptionally high repeatability and guarantees stable measurement results even with frequent zooming. With ten precisely graduated zoom levels, it allows flexible fields of view and magnifications from 34x to 406x. The 5.6-megapixel USB 3.0 camera included in the scope of delivery ensures high-resolution image processing.

Manual cross-measurement table with large measuring range

The high-quality cross-measurement table allows manual adjustments with high smoothness and precision in a measuring range of 300 x 200 mm. Ideal for large or multiple measurement objects at the same time. Optionally available with motorized cross-measurement table.

Parallel bottom light & high-quality LED top light

Thanks to the special parallel bottom light and the extremely powerful LED top light with sequence switching, even the finest structures and surface contours can be optimally illuminated and measured with precision.

Stable granite base plate & precise Z-axis

The system is built on a solid granite base – low-vibration and dimensionally stable. Vertical adjustment is via a high-precision Z-axis with coarse and fine adjustment, ideal for quick focusing and sensitive depth measurements.

Powerful Metric measurement software

The Metric measurement software included in the scope of delivery enables convenient 2D measurements, evaluations, documentation, and data export – intuitive and time-saving. It offers functions such as distance, radius, circle, and angle measurements as well as special circle measurements, layer thickness measurement, DXF overlay, and automatic edge detection.

Your advantages at a glance:

• High-quality motorized zoom system – ideal for changing zoom levels
• Manual measurement adjustment to 300 x 200 mm – precise and stable
• Intelligent LED lighting (incident light & underlight)
• Robust granite construction for maximum stability
• Sensitive Z-axis for precise focusing
• Includes powerful Metric measurement software
• Areas of application
• Quality assurance & incoming goods inspection
• Production & manufacturing
• Research & development
• Micromechanics, electronics, plastics technology, medical technology
