  • Cross measuring table MTM-300 and MTM-300

Cross measuring table MTM-300 and MTM-300

Order number: MTM-200
€5.400,00 *

* Price without VAT - plus Shipping costs

Cross table MTM-200 and MTM 300 mit 200 x 200 and 300 x 300 mm measuring range and high-precision measuring systems and the SCD display unit

On backorder (Delivery time: 8 weeks after order)

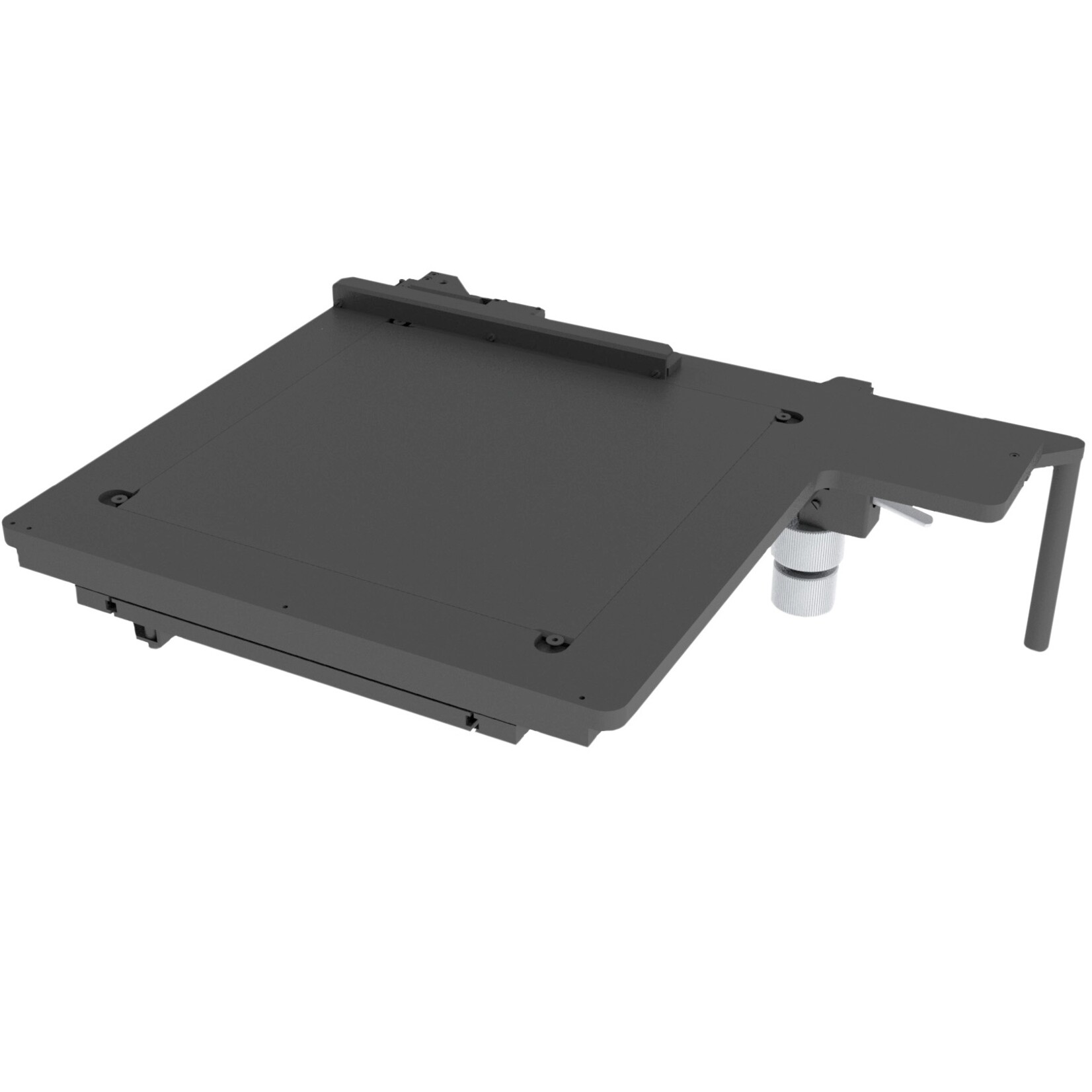

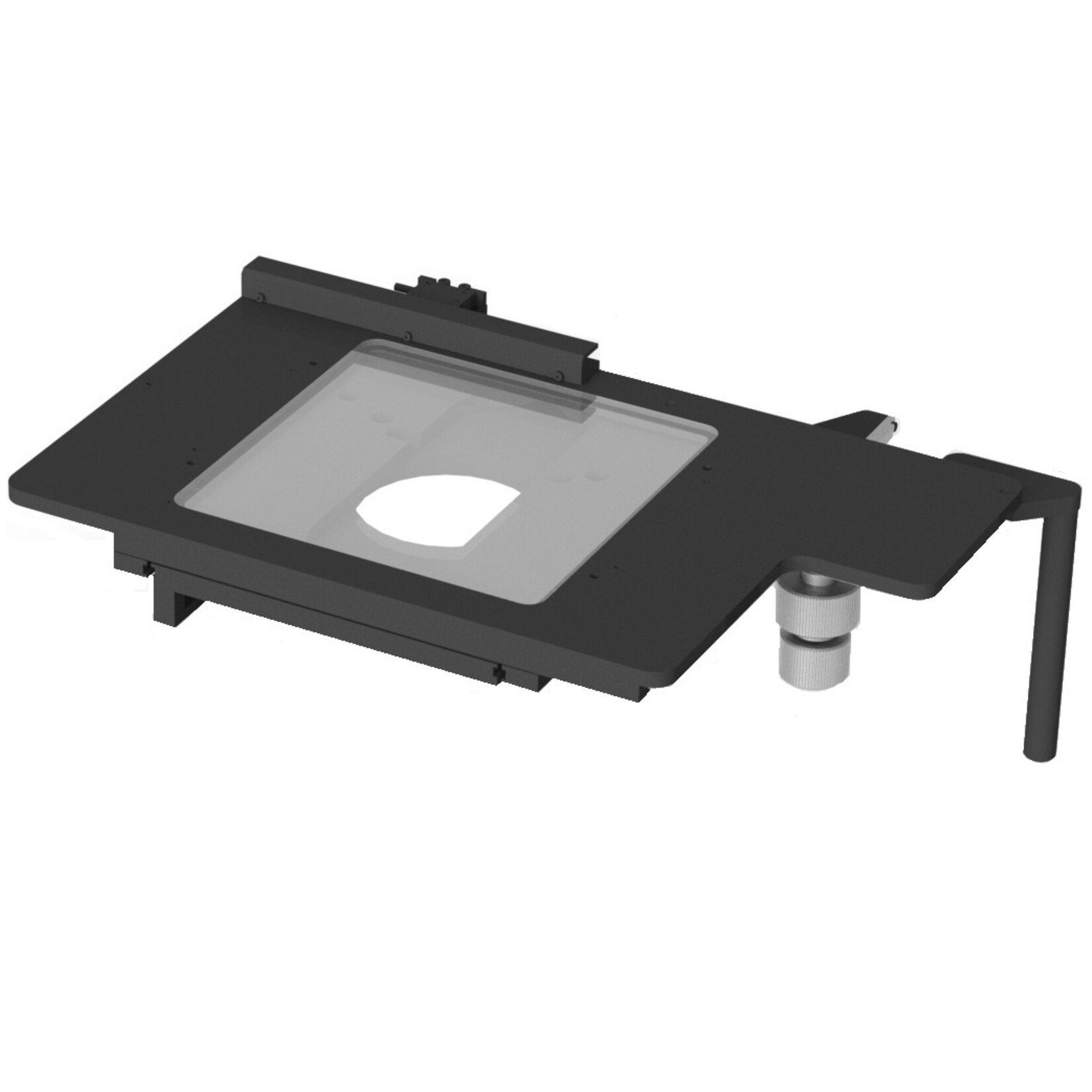

The MTM-200 and MTM-300 with a measuring range of 200 x 200 and 300 x 300 mm. Especially designed for use on upright microscopes, these measuring tables have a 3-plate structure. Highly precise measurements are guaranteed through the use of the MR measuring system. The position definition in a maximum of four measuring axes is carried out by the SCD Plus display device. This can also be read out using Metric MT measuring software via a connection with the USB cable, thus enabling the calculation of the XY coordination in the measuring software. Depending on use (reflected or transmitted light), the measurement table is supplied with a glass or metal insert plate (please specify when ordering). Veuillez noter que le MTM-300 est uniquement livré avec une plaque d'appui fermée. Please note that the MTM-300 is only supplied with the support plate closed.

MTM-200:

Measuring range 200 × 200 mm
Accuracy ±1 μm
Resolution 0.05 µm (smallest increment)
Drive Coaxial drive, rack and pinion
with patented quick adjustment
Material Aluminium
Surface anodised,
black lacquered
Load capacity 3.0 kg
Weight 7.8 kg

MTM-300:

Measuring range 300 × 300 mm (12" × 12")
Accuracy ±5 µm
Resolution 0.05 µm (smallest increment)
Drive Coaxial drive / rack - pinion
with patented quick adjustment
Material Aluminium
Surface anodised, black lacquered
Load capacity 5.0 kg
Weight 18.6 kg

MTM-200-GB

MTM-300-GB
