  • LED Ring Lights RL5 in six colours and two clamping ranges

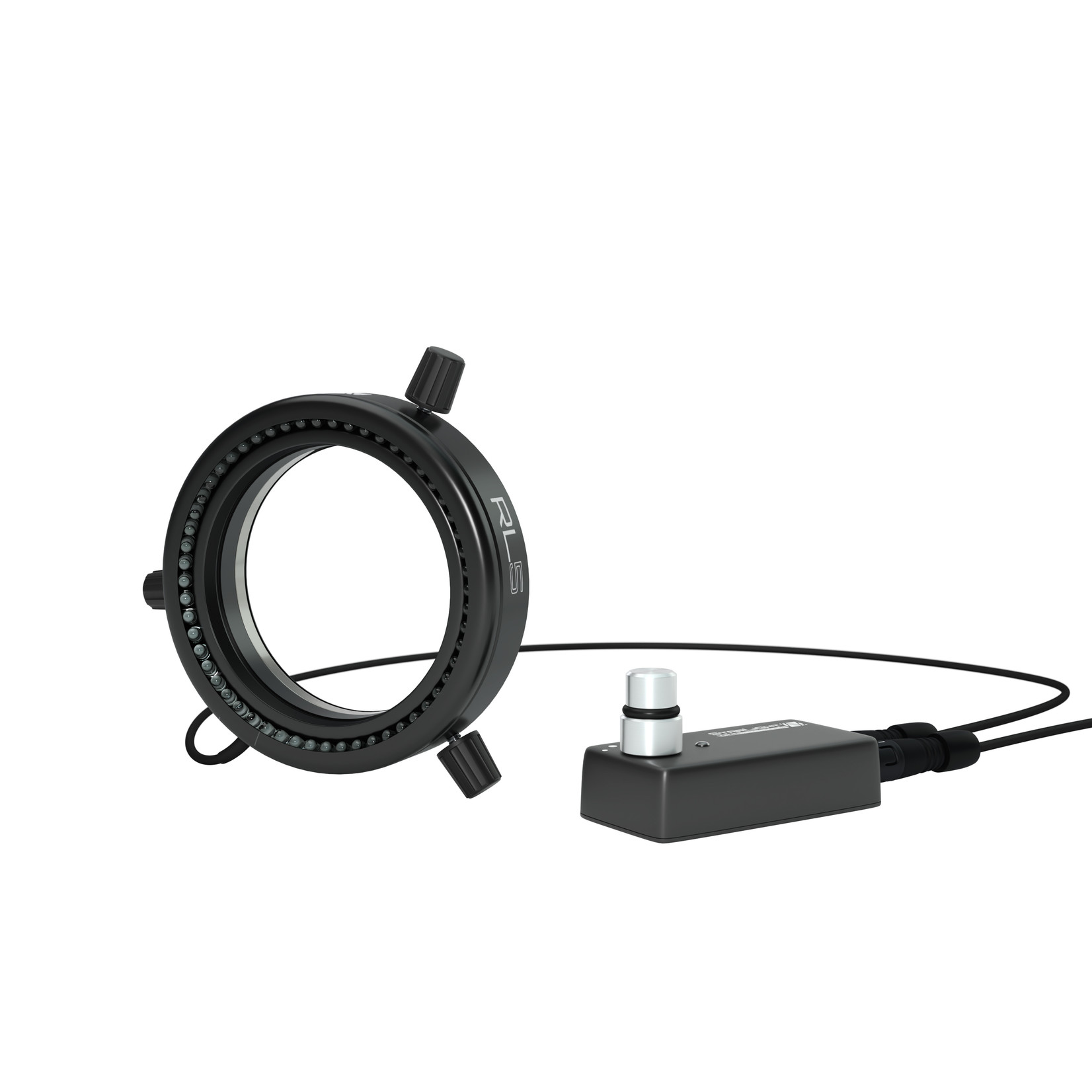

LED Ring Lights RL5 in six colours and two clamping ranges

Order number: 100-010156
€460,00 *

* Price without VAT - plus Shipping costs

LED ring lights of the RL-5 series are available in six different light colours with dimming and in two clamping diameters. Working distance 50 - 140 mm (optimum approx. 75 mm)

On backorder (Delivery time: 5 - 7 days)
  •     photometric values: depending on model selected
  •     number of LEDs: 56
  •     maximum power consumption: 8 W
  •     Working distance: Approx. 50 mm - 140 mm
  •     Optimum working distance: Approx. 75 mm
  •     Control unit dimensions (LxWxH): 78 mm × 38 mm × 21 mm
  •     Thread: M82 × 0.75
  •     Length of supply cable: Approx. 0.8 m
  •     Outer Ø ring light: 110 mm
  •     Height ring light: 25,5 mm
  •     Inner diameter ring light: 80 mm
  •     Clamping Ø: max. 81 mm
  •     LED service life: 50,000 h (manufacturer's specification)
  •     Material: anodised aluminium
  •     Colour: titanium
  •     Weight of light control: Approx. 50 g
  •     Weight ring light: Approx. 220 g
  •     Input power supply (EU|UK|US): 100 - 240 V AC, 50/60 Hz
  •     Output power supply unit: 24 V DC, 1 A
  •     Power supply cable length: Approx. 1.4 m
  •     Dimensions with packaging: 255 mm × 155 mm × 90 mm
  •     Weight with packaging: Approx. 570 g

  •     Photometric values: depending on model selected
  •     Number of LEDs: 56
  •     Maximum power consumption: 8 W
  •     Working distance: Approx. 50 mm - 140 mm
  •     Optimum working distance: Approx. 75 mm
  •     Dimensions control unit (LxWxH): 78 mm × 38 mm × 21 mm
  •     Thread: M82 × 0.75
  •     Length of supply cable: Approx. 0.8 m
  •     Outer Ø ring light: 110 mm
  •     Height ring light: 25,5 mm
  •     Inner diameter ring light: 80 mm
  •     Clamping Ø: max. 88 mm
  •     LED service life: 50,000 h (manufacturer's specification)
  •     Material: anodised aluminium
  •     Colour: titanium
  •     Weight of light control: Approx. 50 g
  •     Weight ring light: Approx. 180 g
  •     Input power supply (EU|UK|US): 100 - 240 V AC, 50/60 Hz
  •     Output power supply unit: 24 V DC, 1 A
  •     Cable length power supply unit: Approx. 1.4 m
  •     Dimensions with packaging: 255 mm × 155 mm × 90 mm
  •     Weight with packaging: Approx. 530 g
