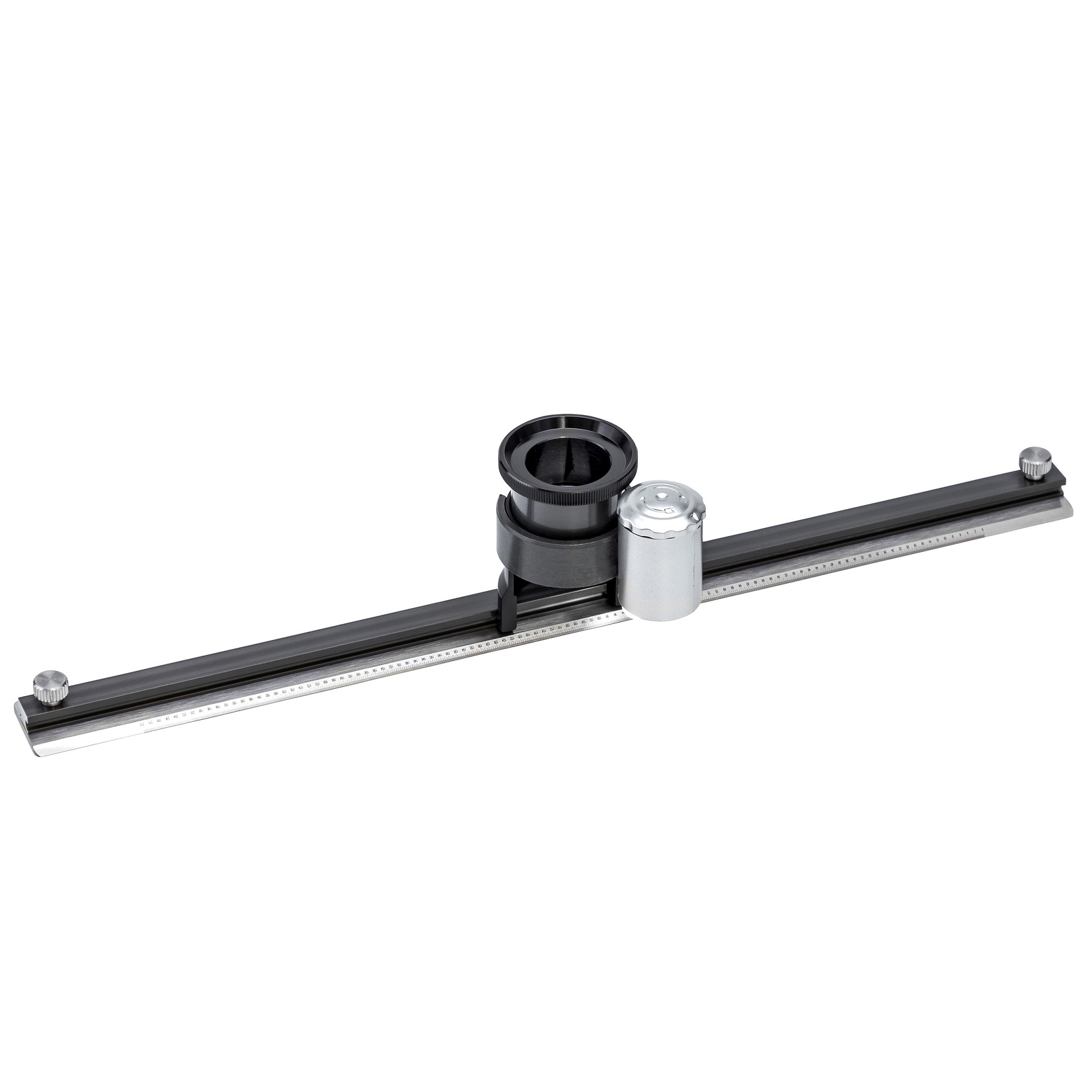

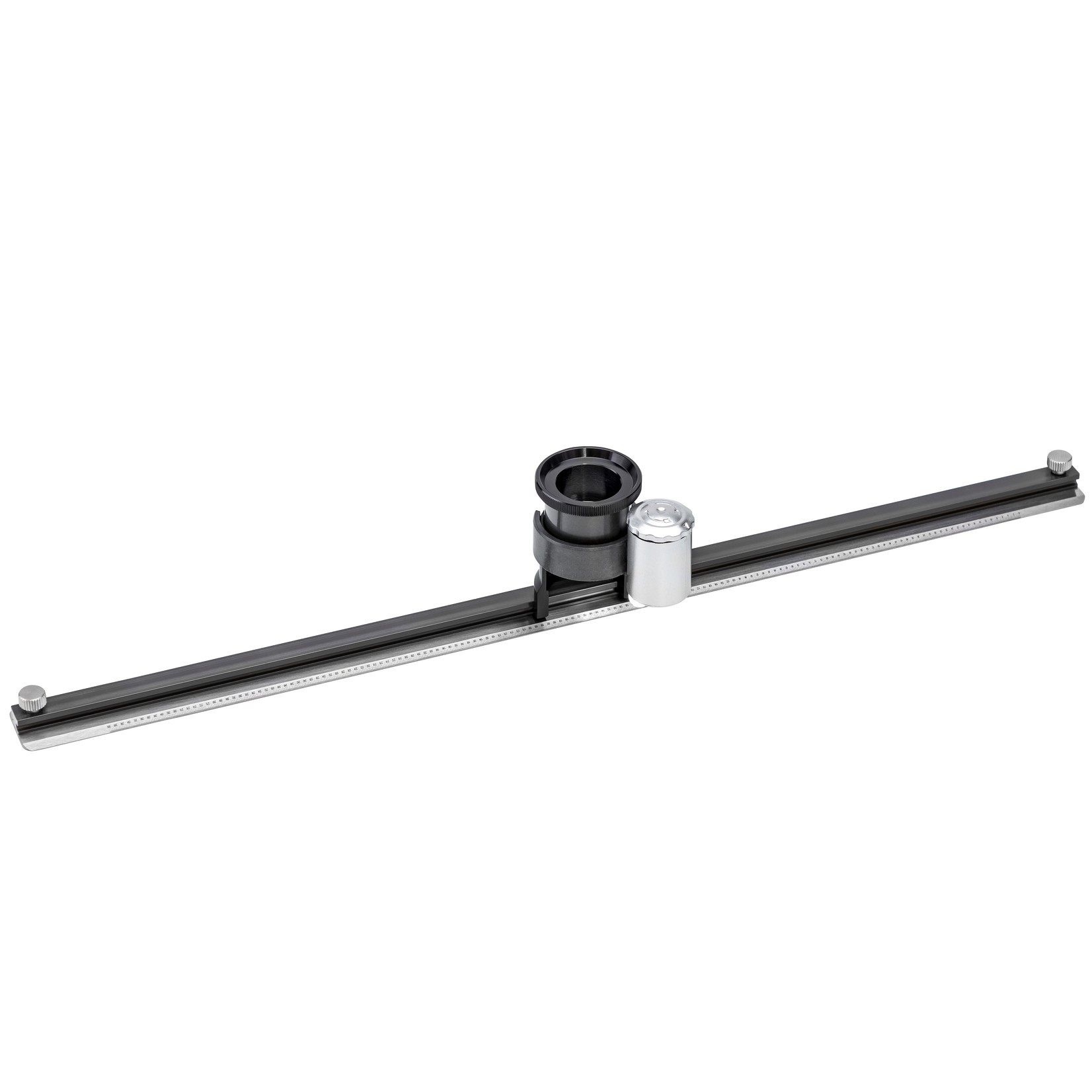

Metal scales RL-1 with a magnifying glass and LED lighting

Order number: RL-100-1-LED
€245,00 *

* Price without VAT - plus Shipping costs

The four metal scales of the RL-1-LED series are supplied with a 10-fold reading magnifier and LED illumination. The graduation is 0.1 mm

In stock (99) (Delivery time:1 - 2 working days)

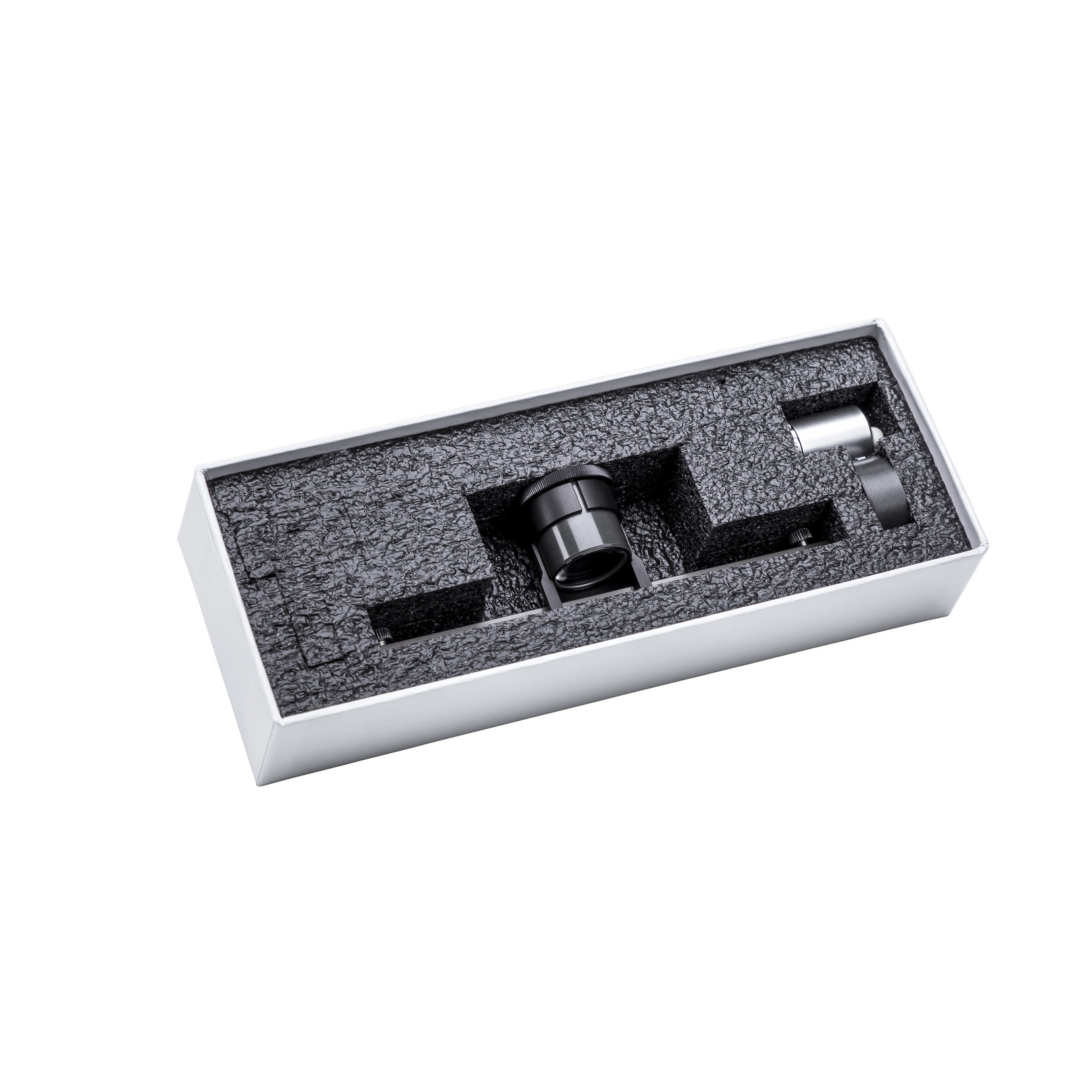

Measurement of greater distances with measuring magnifiers is possible only to a limited extent due to the length of the rods. RL metal measuring rods are the optimum supplement for quick and simple determination of lengths and distances. The four lengths of 100 mm, 212 mm, 300 mm and 400 mm are supplied with one or two reading magnifiers (crack magnifier RL-10-x without scale) in a transport box. The reading magnifiers are moved along a guiding rail which is mounted on the measuring rod. When measuring lengths and distances ensure that the measuring rod is parallel to the object to be measured, to prevent measuring errors. The RL steel measuring rods, which are manufactured with an accuracy of± 0.02 mm, do not contain a test report in the scope of delivery.

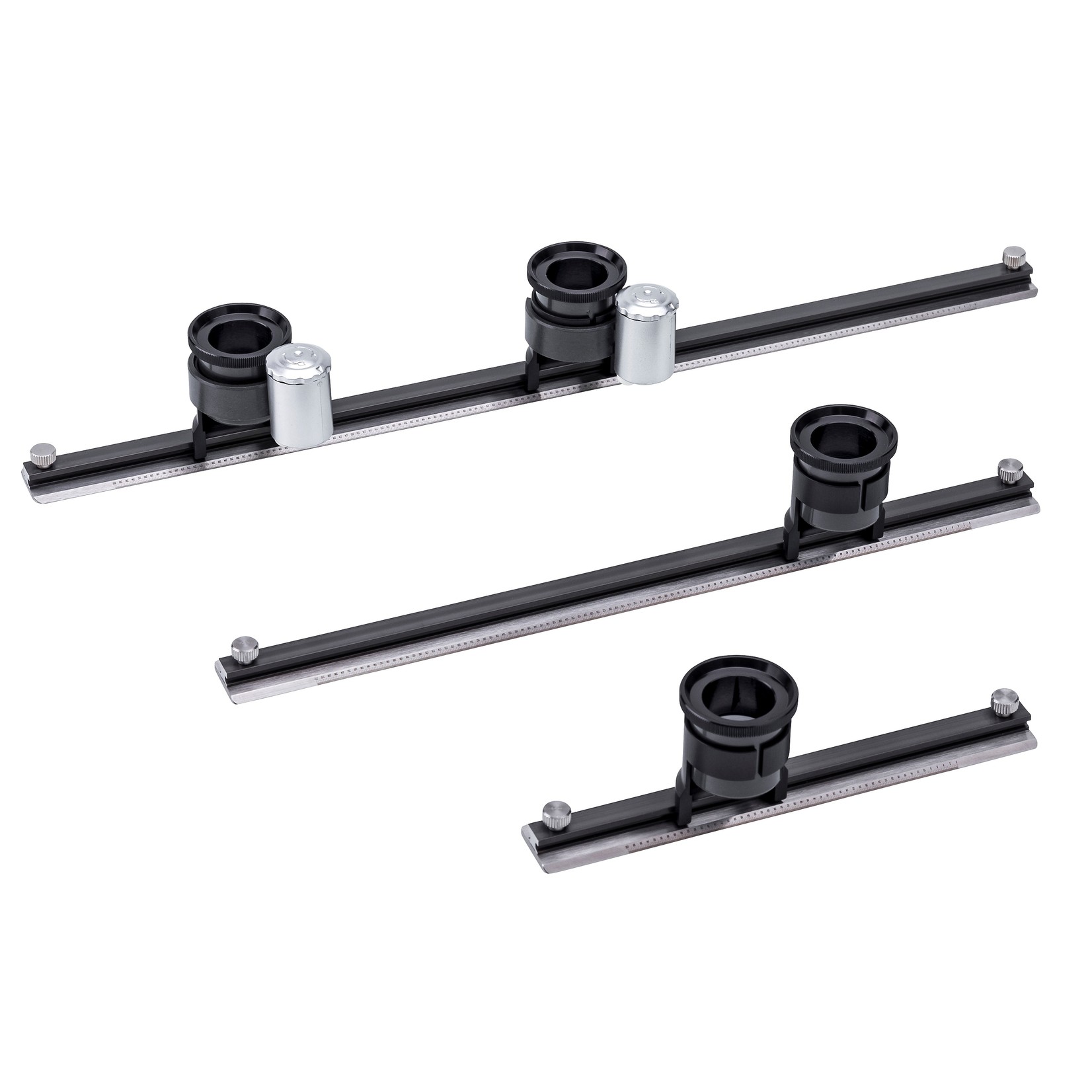

The four standard lengths of the metal measuring rods are supplied with one or two 10-x reading magnifiers as desired. In addition both versions can be supplied as separate models with an LED light. Please note that when using two magnifiers the minimum reading distance from magnifier centre to magnifier centre is approx. 32 mm. Upon request the metal measuring rods can be supplied for an extra charge with a factory calibration certificate (300 and 400 mm) or DAkkS (100 and 212 mm). This increases the delivery time by approx. two weeks. For installation purposes, we offer the four metal measuring rods under order number RL-OA as pure measuring rods without magnifiers or other attachments.

Technical specifications for RL metal measuring rods:

• Measuring scale: Increments = 0.1 mm, labelling 0 .10 .20 ...
• The scale divisions and numbers on the stainless steel body are laser-engraved
• The scale divisions have a thickness of 0.020 mm
• Accuracy of partition ± 0,02 mm on the entire measurement length (at 20 degrees)
• Thermal expansion coefficient: 0% = per % rel. humidity
• Material = 1-4301
• Scaling not centred - centred on metal body
• Length of metal body

  • 100 mm total length = 150 mm (+ 0,2 mm)
  • 212 mm total length = 262 mm (+ 0,2 mm)
  • 300 mm total length = 350 mm (+ 0,2 mm)
  • 400 mm total length = 450 mm (+ 0,2 mm)

• Width of metal body = 19,6 mm (DIN 7168 mean)
• Depth of metal body = 2,0 mm (DIN 7168 mean)

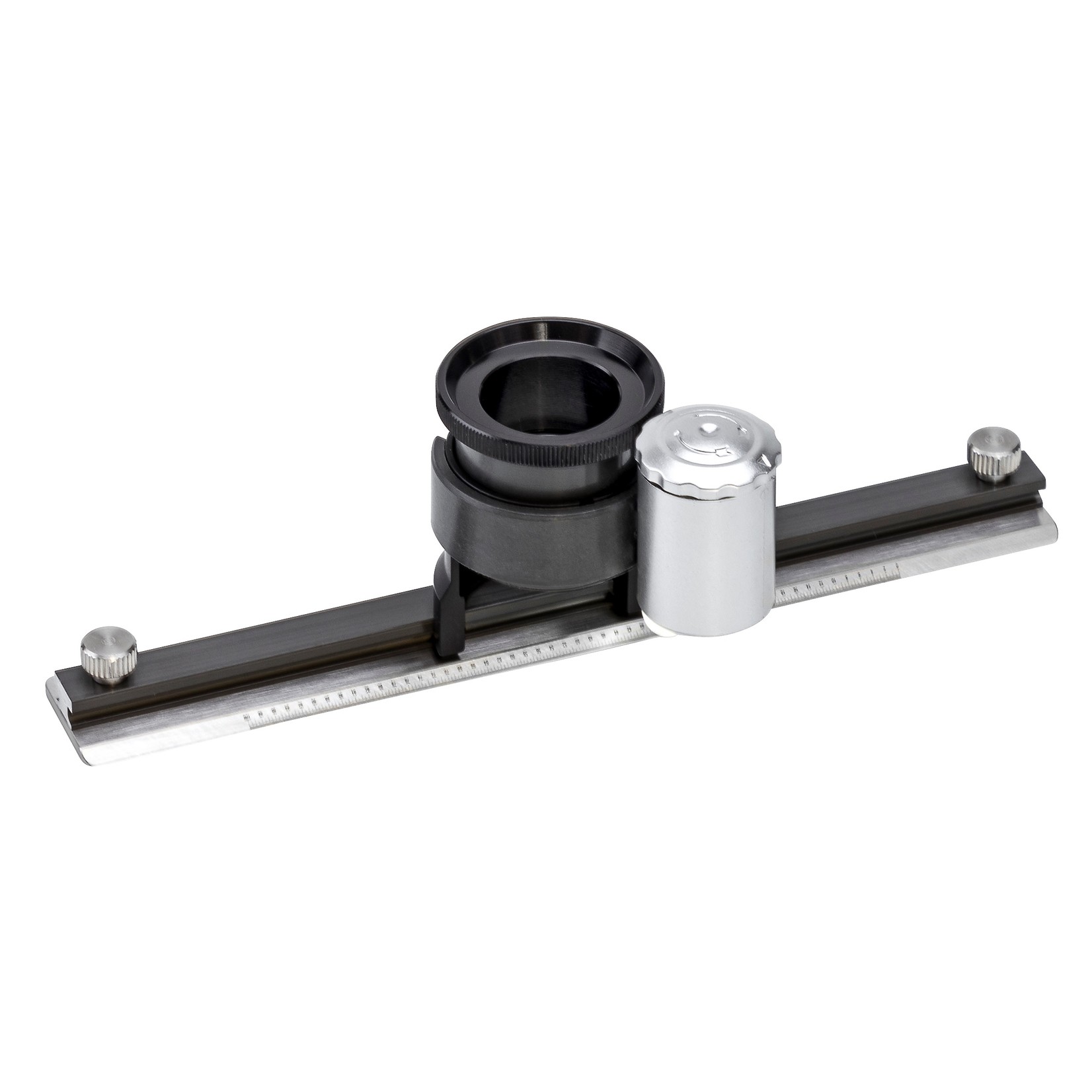

Metal scale RL-100-1-LED
Magnification (1 magnifier) 10x
Focusable Yes
Illumination 1 LED illumination
Field of view (magnifier) 20 mm
Measuring length 100 mm
Graduation 0.1 mm
Optics (1 magnifier) Aplanat, distortion-free
Dimensions with magnifier and LED 150 x 55 x 45 mm
Weight 106 grams
Transport box Included

Metal scale RL-212-1-LED
Magnification (1 magnifier) 10x
Focusable Yes
Illumination 1 LED illumination
Field of view (magnifier) 20 mm
Measuring length 212 mm
Graduation 0.1 mm
Optics (1 magnifier) Aplanat, distortion-free
Dimensions with magnifier and LED 262 x 55 x 45 mm
Weight 147 grams
Transport box Included

Metal scale RL-300-1-LED
Magnification (1 magnifier) 10x
Focusable Yes
Illumination 1 LED illumination
Field of view (magnifier) 20 mm
Measuring length 300 mm
Graduation 0.1 mm
Optics (1 magnifier) Aplanat, distortion-free
Dimensions with magnifier and LED 350 x 55 x 45 mm
Weight 181 gram
Transport box Included

Metal scale RL-400-1-LED
Magnification (1 magnifier) 10x
Focusable Yes
Illumination 1 LED illumination
Field of view (magnifier) 20 mm
Measuring length 400 mm
Graduation 0.1 mm
Optics (1 magnifier) Aplanat, distortion-free
Dimensions with magnifier and LED 450 x 55 x 45 mm
Weight 219 grammes
Transport box Included
