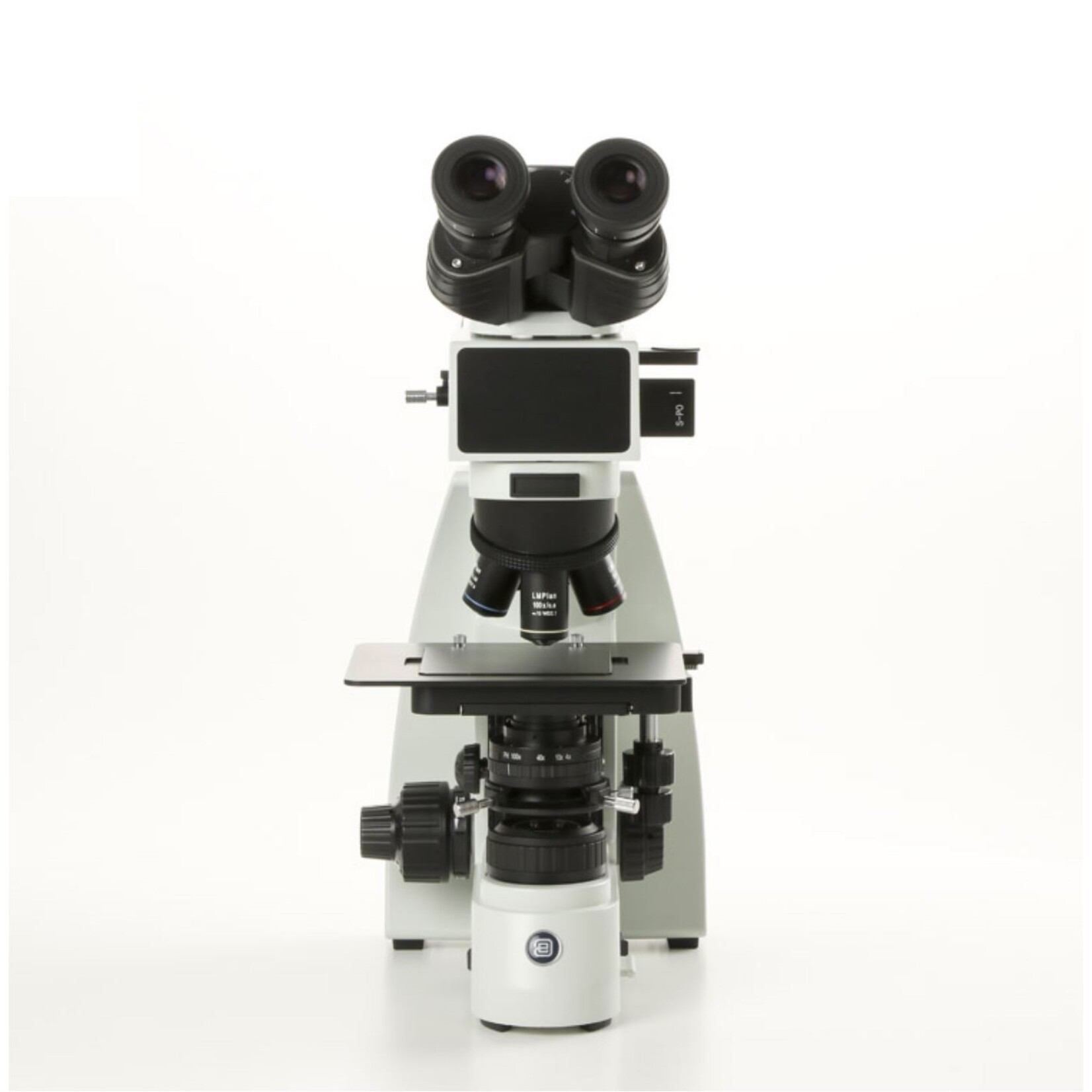

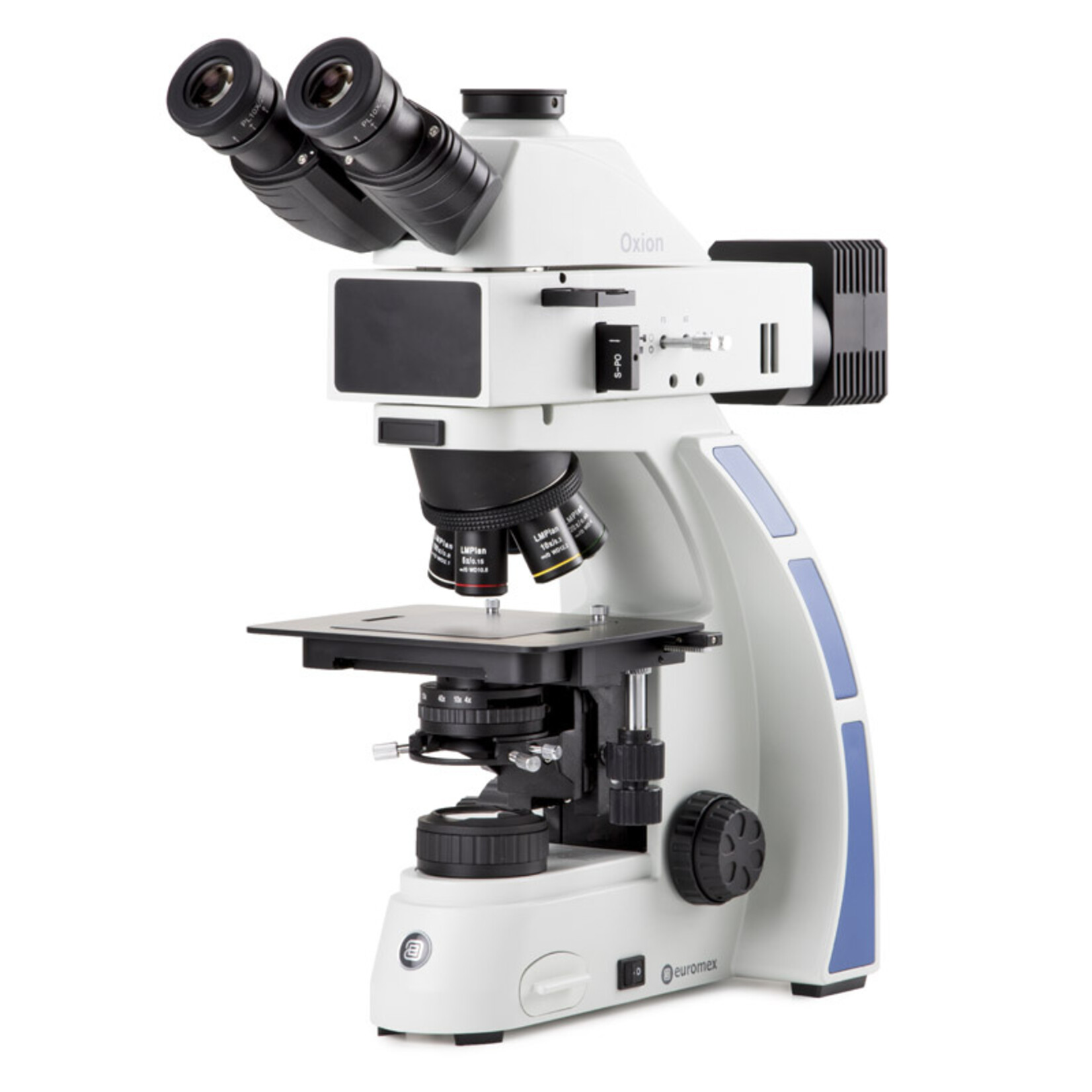

TECHNICAL DESCRIPTION:
OKULARS:
- HWF 10x/22mm eyepieces. All eyepieces can be secured

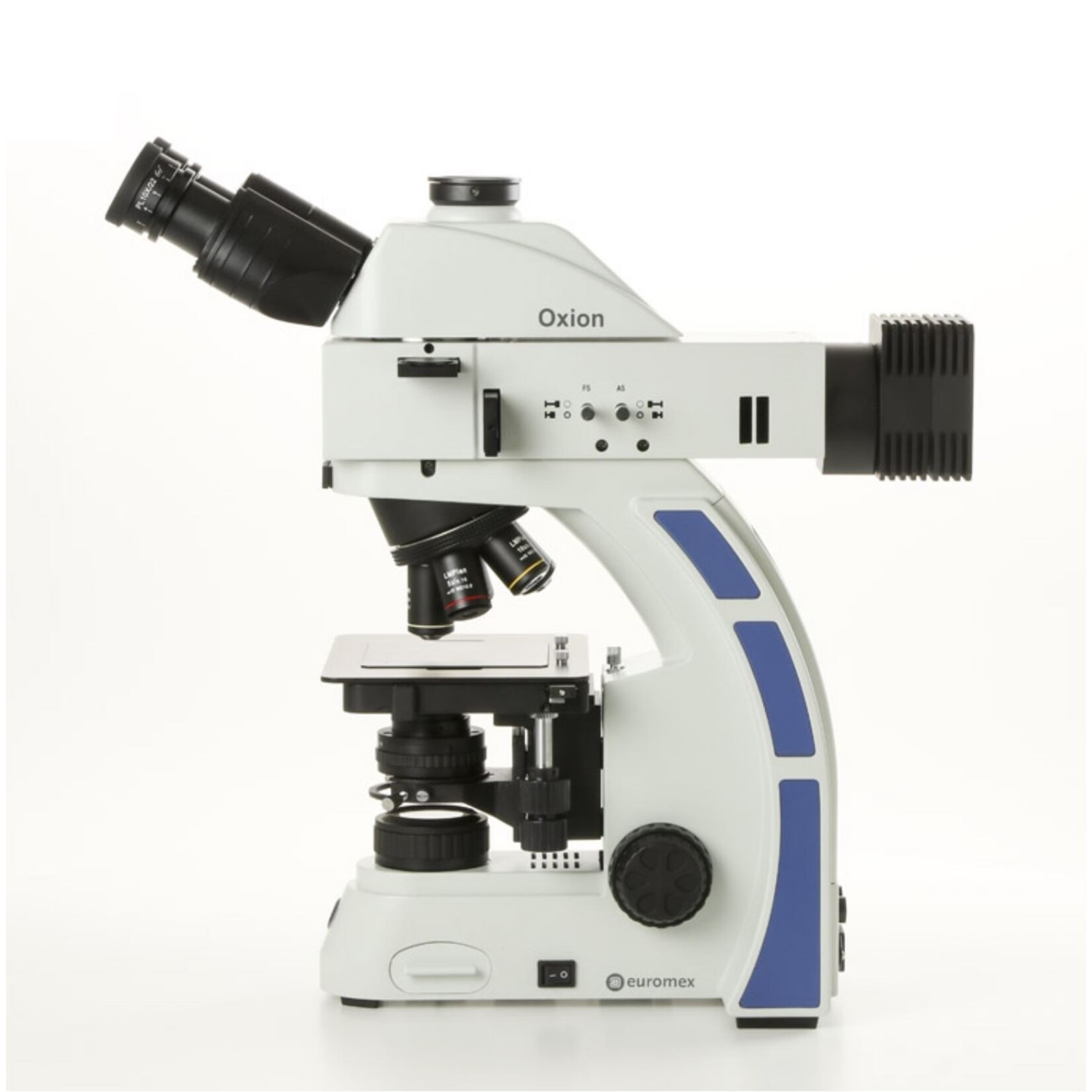

HEAD:
- Trinocular Siedentopf head with 30° inclined tubes. Interpupillary distance from 48 to 75 mm
- ± 5 diopter diopter adjustment on both eyepieces
- Unique rotation system allows ergonomic positioning of both tubes in an upper (431 mm) and lower (397 mm) position

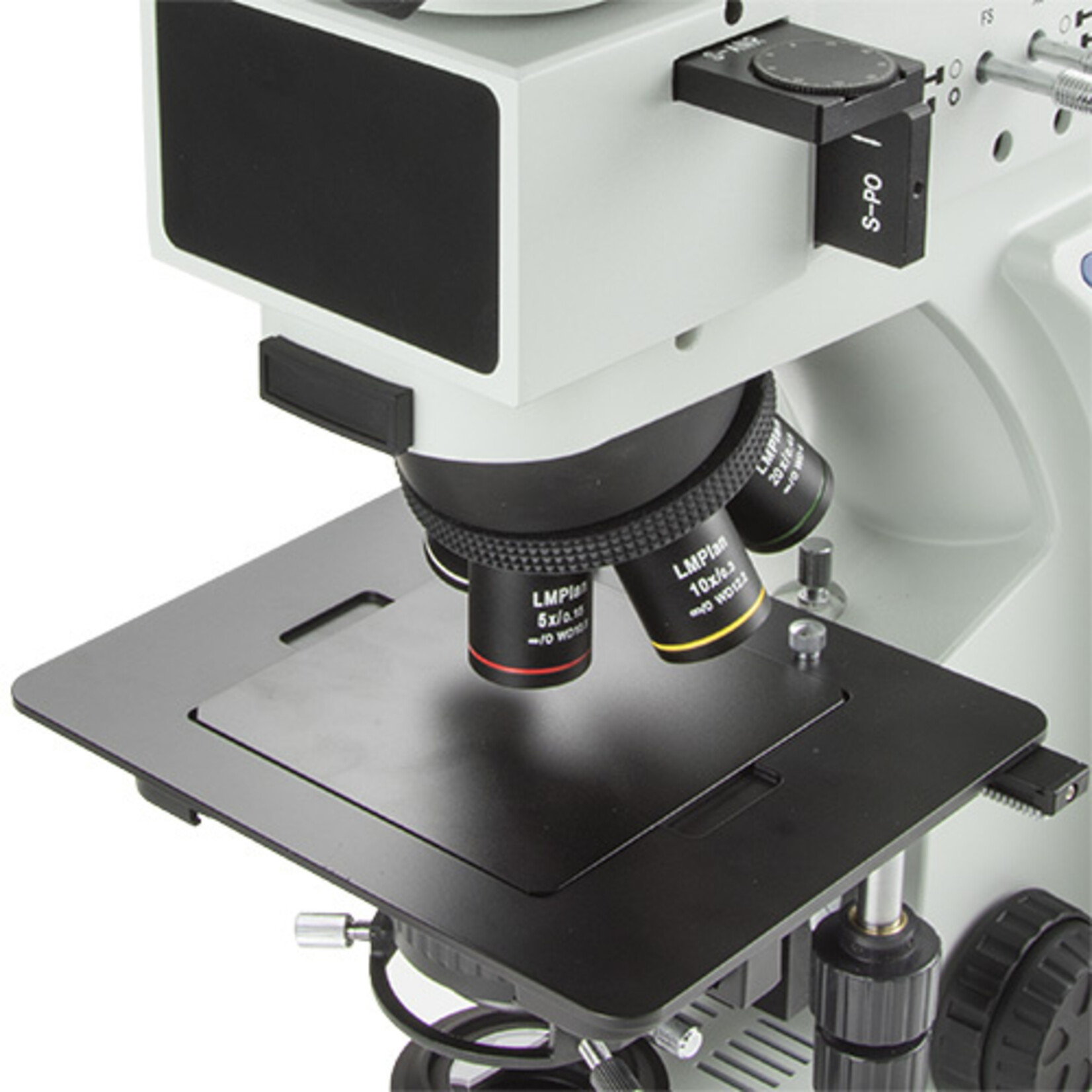

OBJECTIVE TURRET:
- Inverted nosepiece for 5 objectives
OBJECTIVES (IOS-iINFINITY CORRECTED SYSTEM):
- Standard configurations are equipped with infinity corrected DIN long working distance (LWD)
- Plan M-IOS 5x/0.14, 10x/0.25, 20x/0.40 and long working distance (LWD)
- Plan semi apochromatic M-IOS 50x/0.55 objective
Only with model OX.3245:
- Infinity Plan semi apochromatic objective 100x/0.80 IOS working distance 2.1 mm
- No cover glass correction
- All objectives have AR coating for maximum light transmission and are anti-fungus treated
FOCUS ADJUSTMENT:
- Coaxial coarse and fine drive, 200 μm fine adjustment, 1μm accuracy 200 μm per rotation
- the total adjustment range is approximately 28 mm
- Supplied with an adjustable rack stop so that damage to the specimen and objectives is avoided
- The coarse adjustments are equipped with friction control
TABLE:
- 180 x 145 mm stage with integrated mechanical 78 x 45 mm X-Y stage
- Supplied with simple metal and plain glass inserts
CONDENSER (FOR TRANSMITTED LIGHT ILLUMINATION):
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

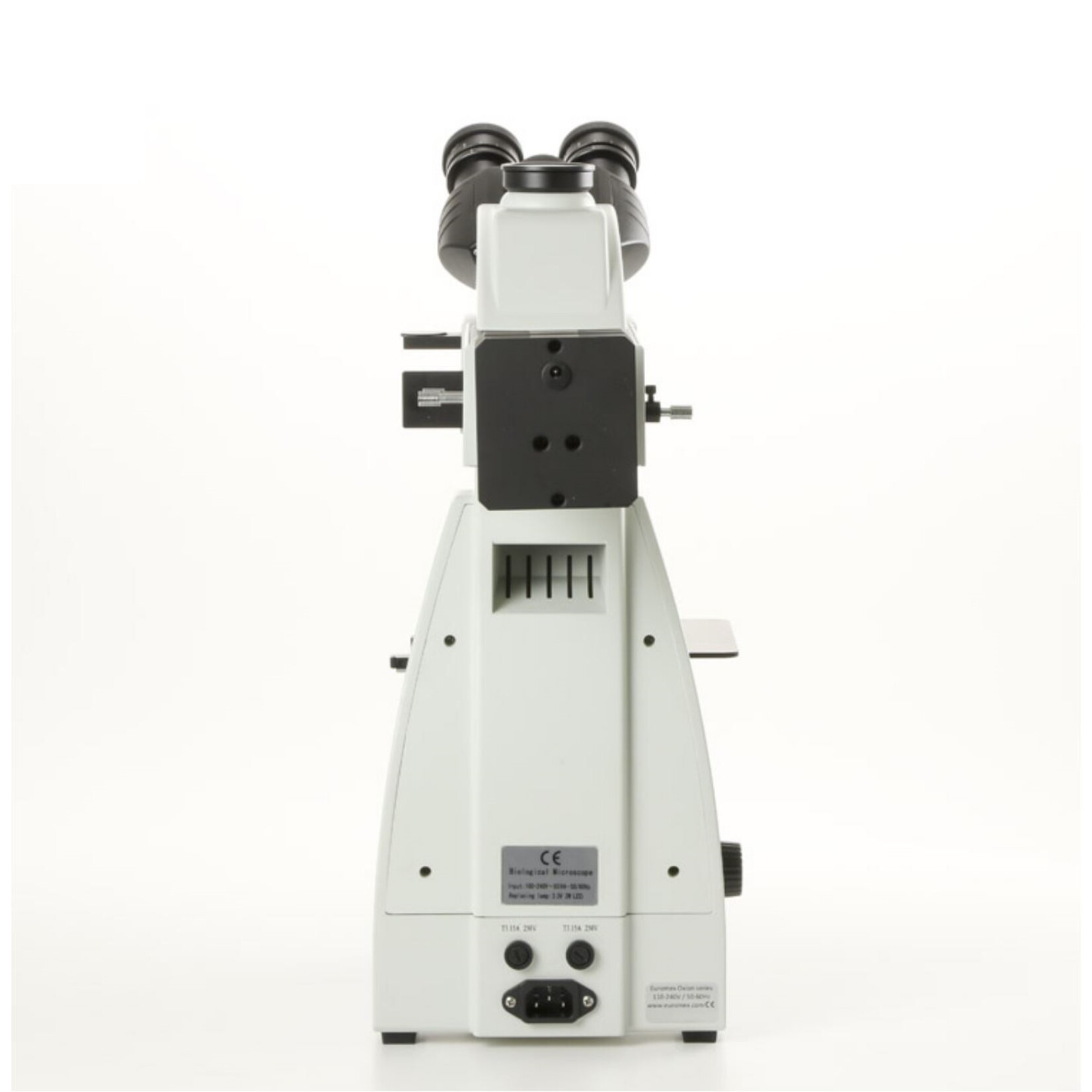

- All models are equipped with integrated 100-240 V power supply with 3 W adjustable NeoLed™ illumination
- Köhler illumination with illuminated field diaphragm
TRANSMITTED LIGHT ILLUMINATION:
- NeoLED-combined
- Adjustable 3 W NeoLED™ illumination with internal 85 V-240 V power supply. Köhler illumination with luminous field diaphragm

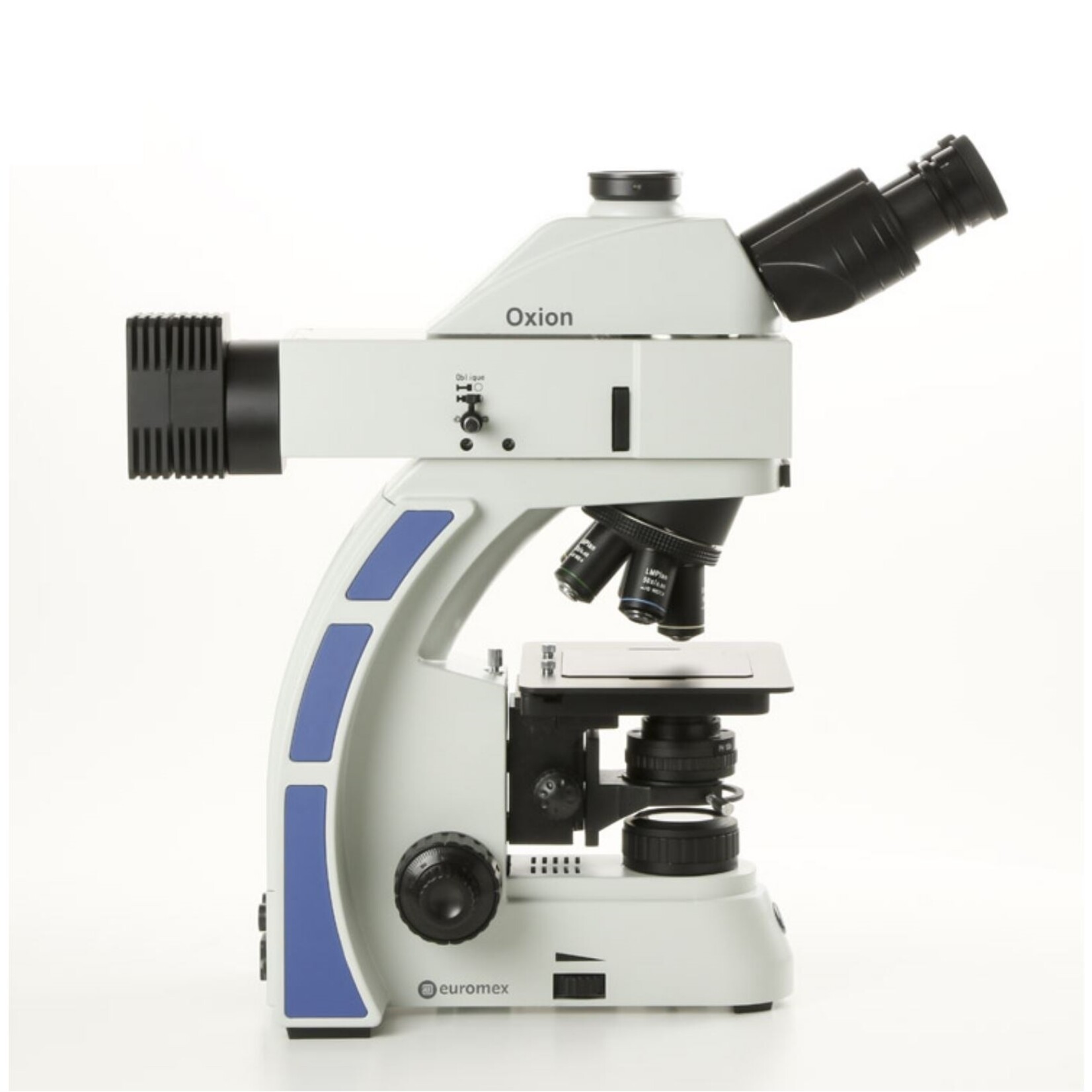

EPI TRANSMITTED LIGHT ILLUMINATION
- NeoLED-combined
- Intensity adjustable 3 W NeoLED™ Köhler illumination with external 110-240 Vac / 5 Vdc power supply

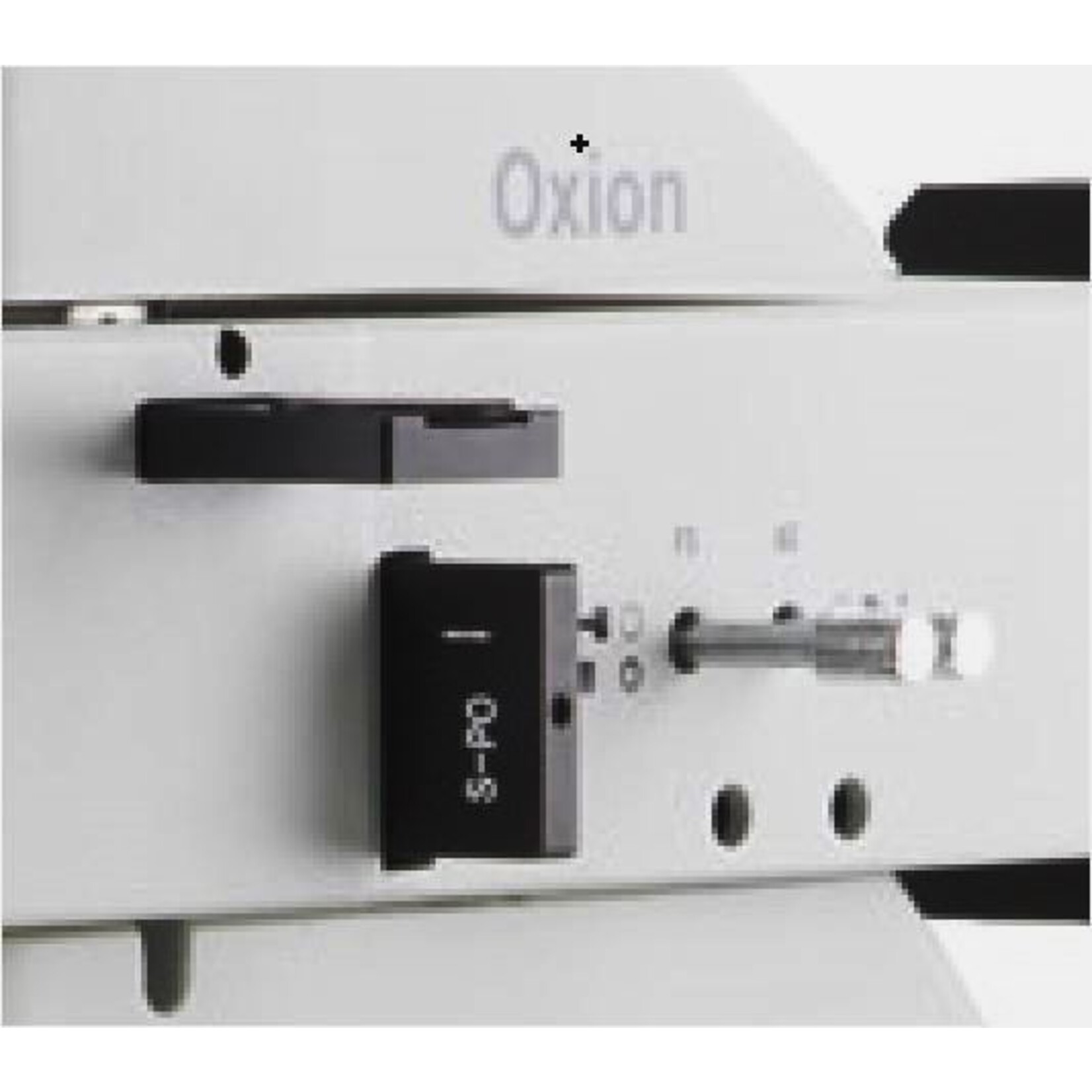

- Pull-push type 90° rotatable polarizer and fixed analyzer
- Built-in capacitor with iris diaphragm. Oblique illumination function
- Supplied with blue and green filter

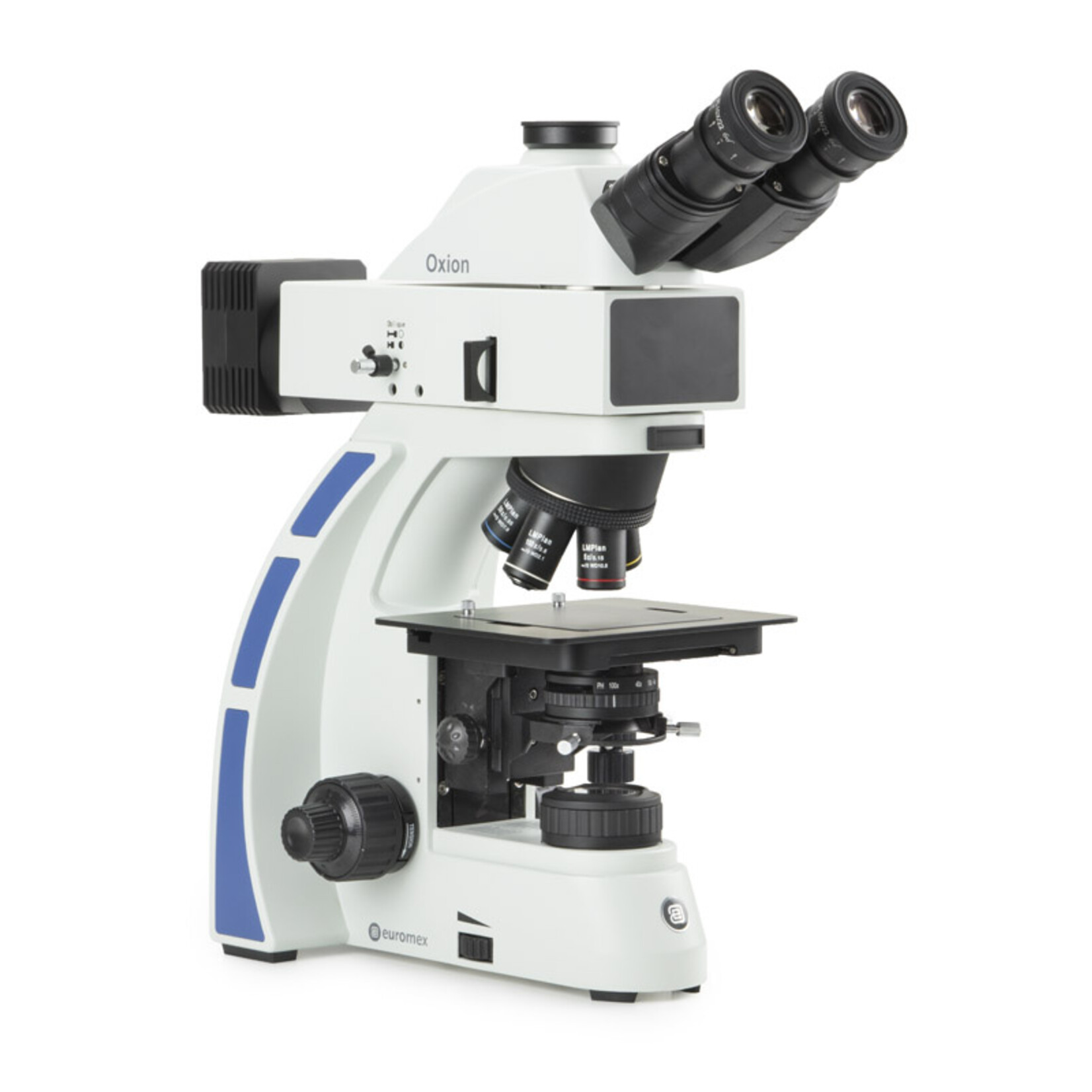

COAXIAL EPI-ILLUMINATION
- NeoLED-combined
- Intensity adjustable 3 W NeoLED
- Köhler illumination with external 110-240 V power supply
- Push-pull type 90° rotatable polarizer and fixed analyzer
- Built-in condenser with field and iris diaphragm. Oblique illumination function
PACKAGING:
- Supplied with power cord, dust cover, spare fuse and instruction manual
Specifications:
- HWF 10x/22 mm Eyepieces
- Trinocular head, 30° inclined tubes
- Tubes can be positioned in upper or lower position
- Pupil distance 48-75 mm
- Diopter adjustment on both eyepieces
- Reversed, five-position ball-bearing revolving nosepiece
- LWD M-plan 5x, 10x, 20x IOS infinity corrected objectives
- LWD M-plan semi-apochromatic 50x IOS objective with infinity correction
- all optics are anti-fungus treated and anti-reflective coated for maximum light transmission
- 150 x 140 mm stage with 76 x 50 mm mechanical stage
- Coaxial coarse and fine drives with 200 divisions
- Accuracy 1 μm, 0.2 mm per revolution
- Total travel approx. 28 mm
- Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
- Diascopic 3 W NeoLED™ Köhler illumination with adjustable intensity with internal power supply 100-240 V (CE)
- Reflected 3 W NeoLED™ Köhler epi-illumination attachment with external power supply
- Standard Supplied with analyzer and rotatable polarizer
- Oblique illumination
- Supplied with power cord and dust cover
Advantages and disadvantages of the Oxion to the HighEnd model Delphi are:
- Advantage: Oxion has LED illumination
- Disadvantage: No darkfield illumination
- Disadvantage: No retrofit with DIC filter
- Disadvantage: Limited specimen height (height of the materials to be tested max. 20 mm
