Especially for use with rotationally symmetrical parts, the round, parallel bottom light is the perfect solution. Especially recommended in combination with the telecentric zoom systems in grinding and dressing machines. This illumination provides sharp, high-contrast edge representations, especially for grinding wheels, dressing wheels or circular knives.

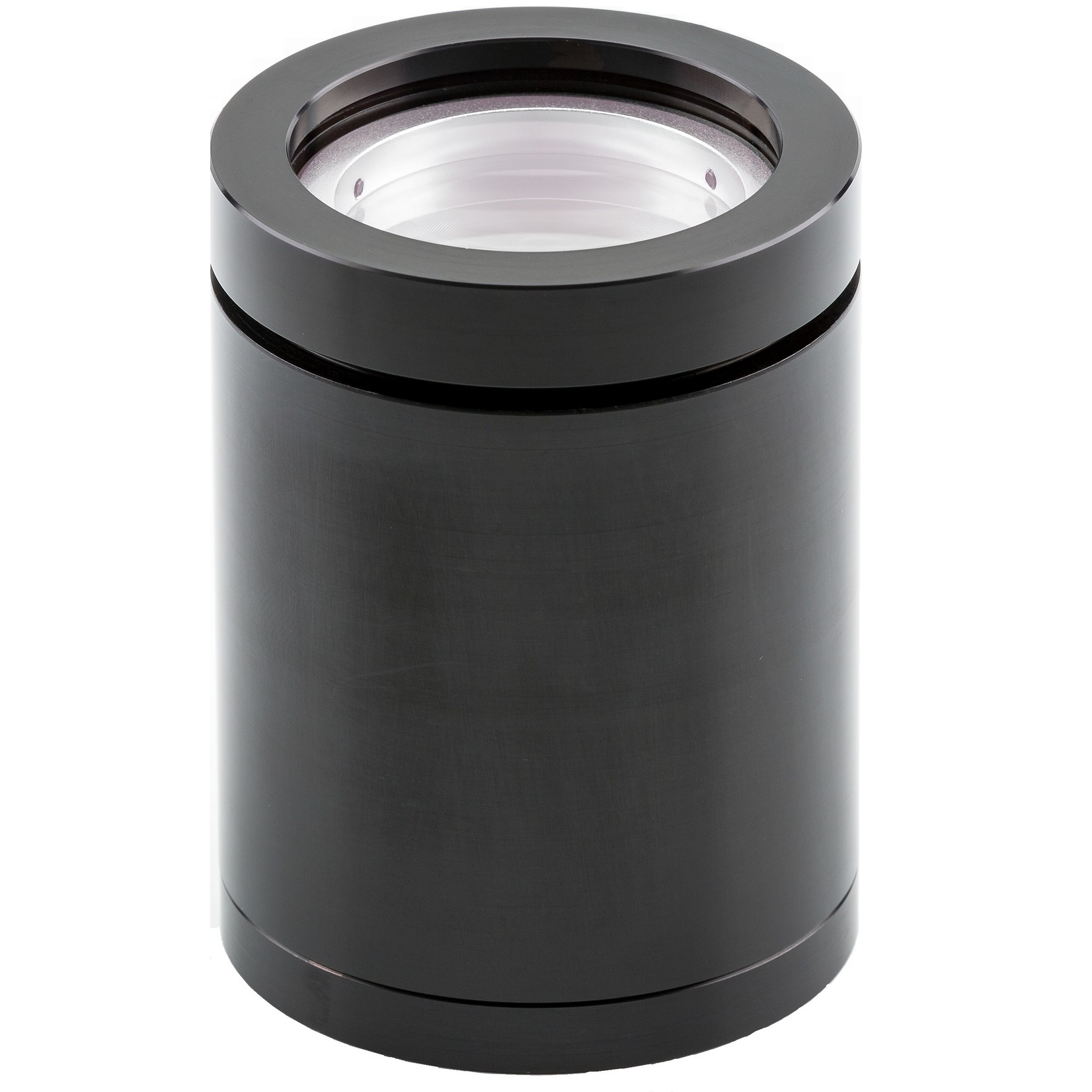

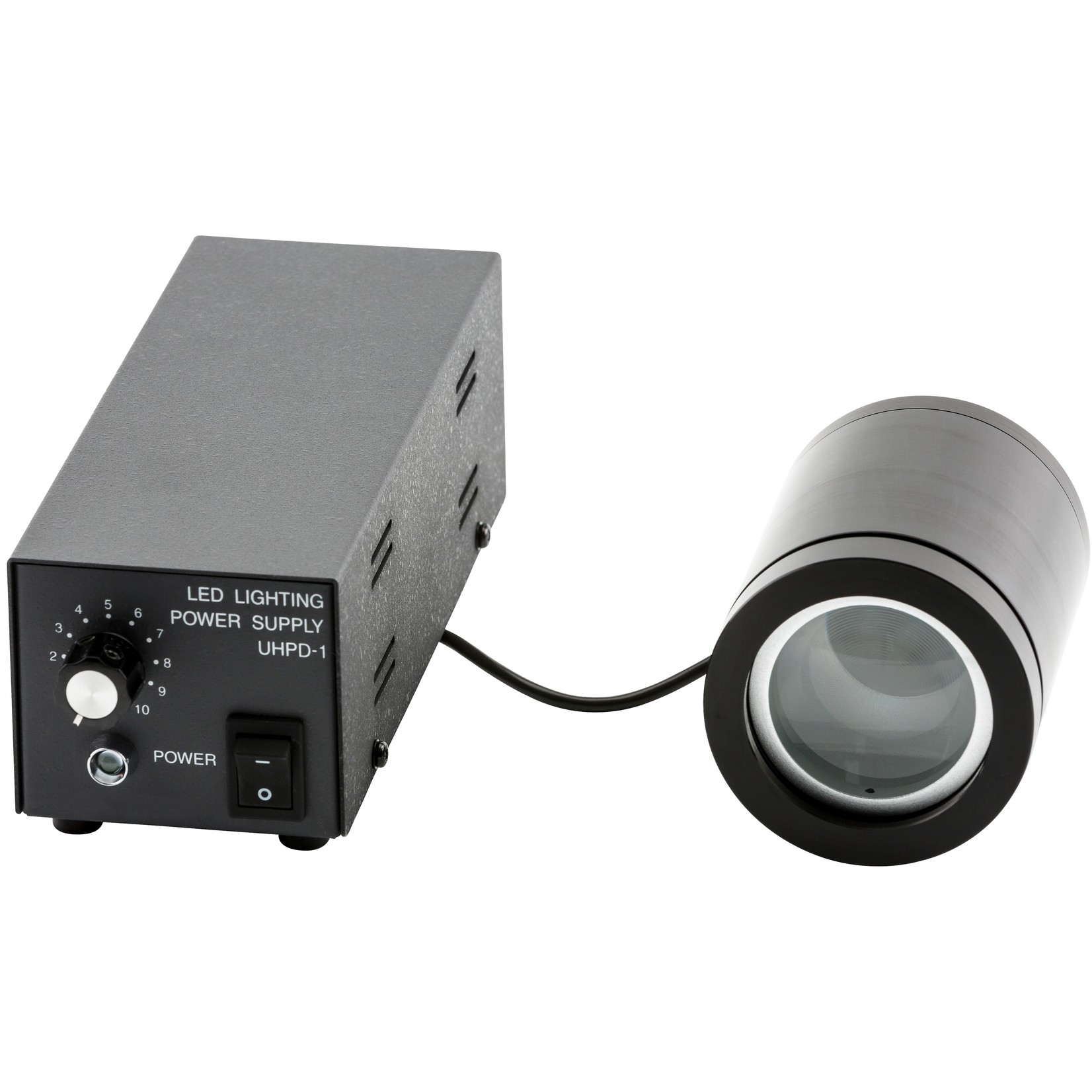

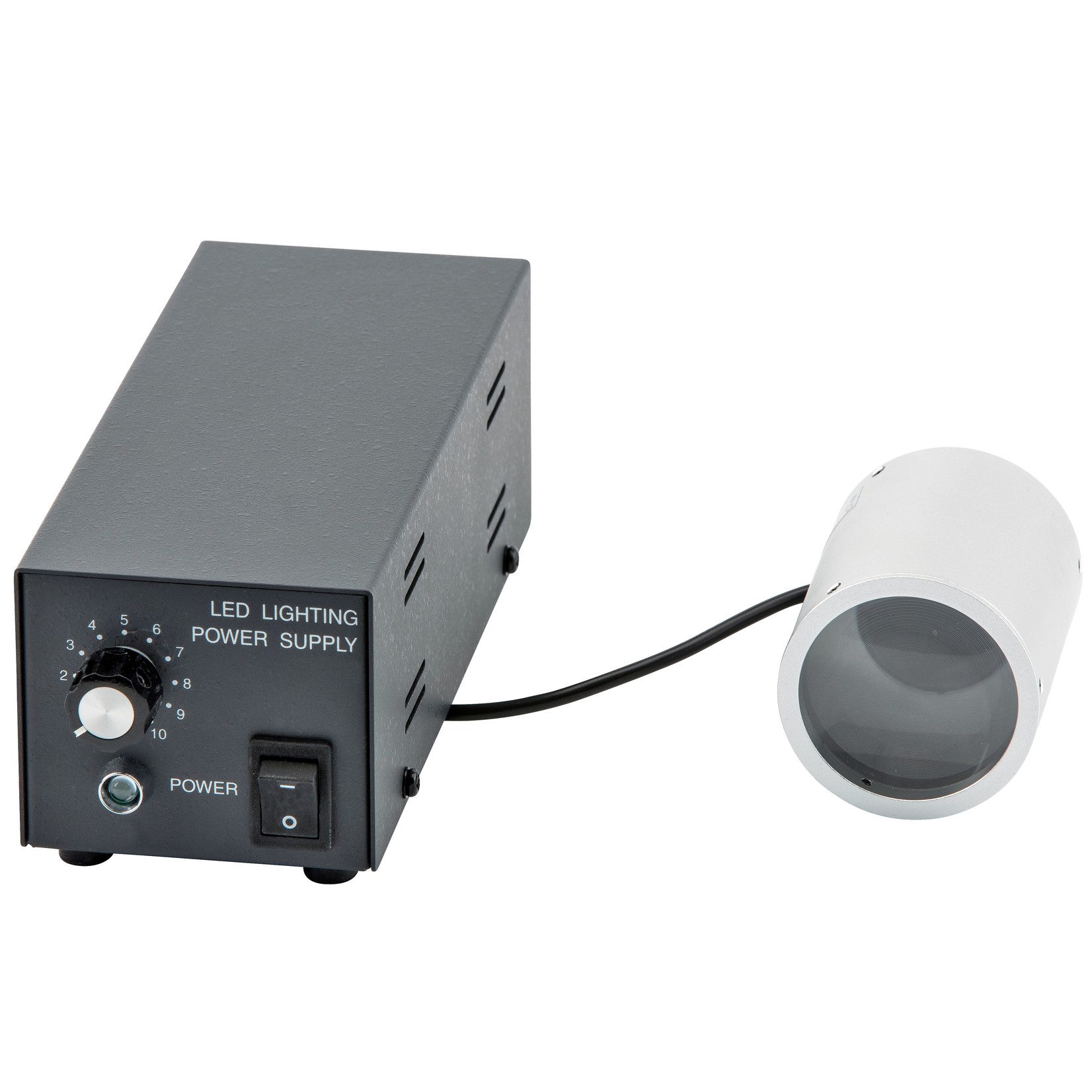

To avoid damage to the illumination unit, it is optionally supplied with a protective housing made of aluminium. There is a protective glass above the light emission which can be replaced very easily. A power supply unit with dimmer and an extension cable are included in the delivery. The light emission is 40 mm in diameter. Below you will find a drawing with the dimensions.
Zeichnung - Drawing - PPL-W-R_protective_housing
