  • PEAK Measuring Microscopes 2008 Series - 25x to 100x
  • PEAK Measuring Microscopes 2008 Series - 25x to 100x

PEAK Measuring Microscopes 2008 Series - 25x to 100x

Order number: 2008-25
€150,00 *

* Price without VAT - plus Shipping costs

The microscopes series 2008 are available in the magnifications 25x, 50x, 75x and 100x. Equipped with measuring scales from 0.05 to 0.005 mm

In stock (36) (Delivery time: immediately available)

All 2008 series microscopes can be focussed by turning the coaxial tube. Available with magnification factors of 25, 50, 75 and 100x. The ocular can be focussed on the scale, which, in contrast to the KITO-MI series, is not installed in the ocular. The measuring scale is installed separately above the tube where it is borne in a mounting shell. The top half of the tube can be screwed off for easy replacement of the measuring scale. The scale can be rotated inside the microscope making it unnecessary to turn the entire instrument.

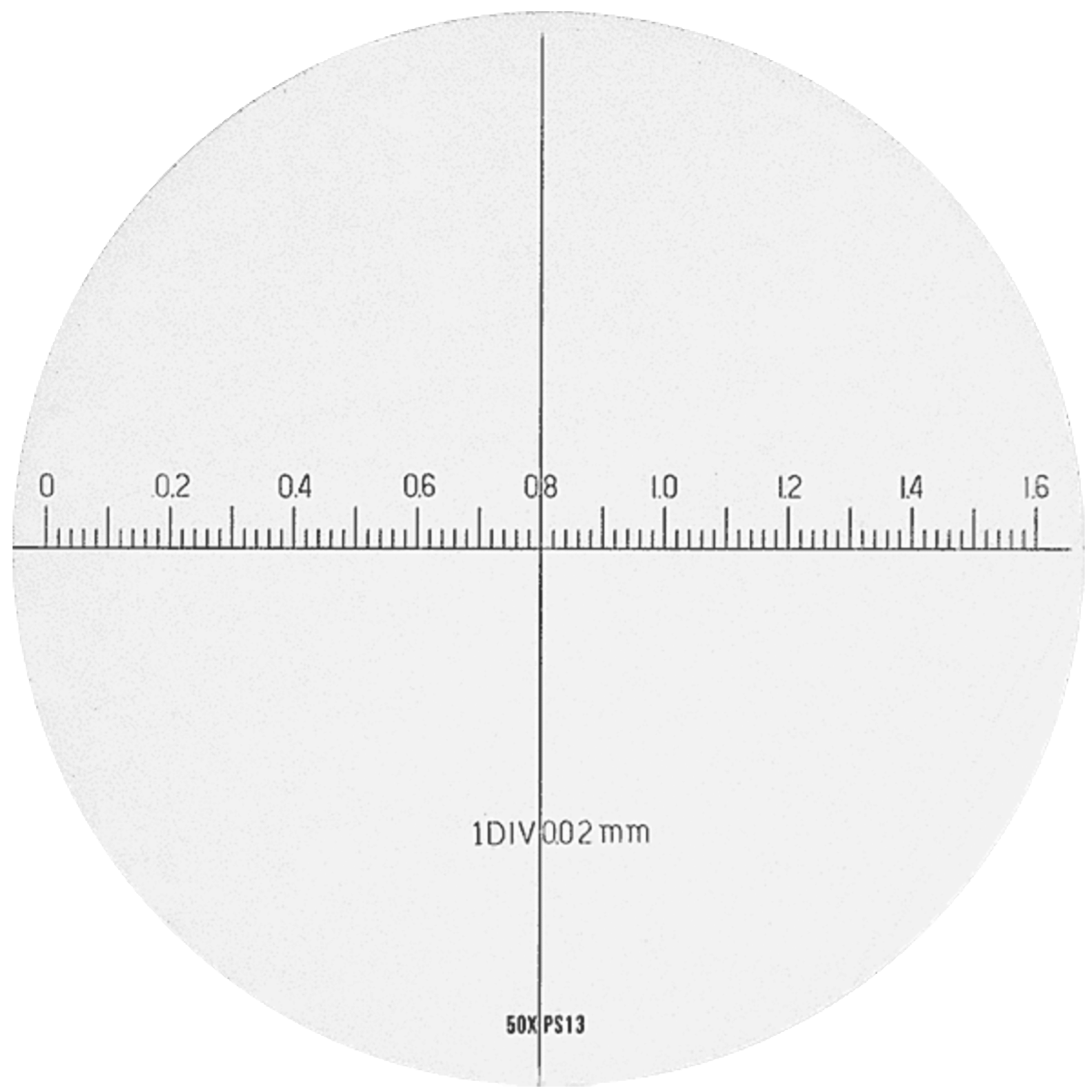

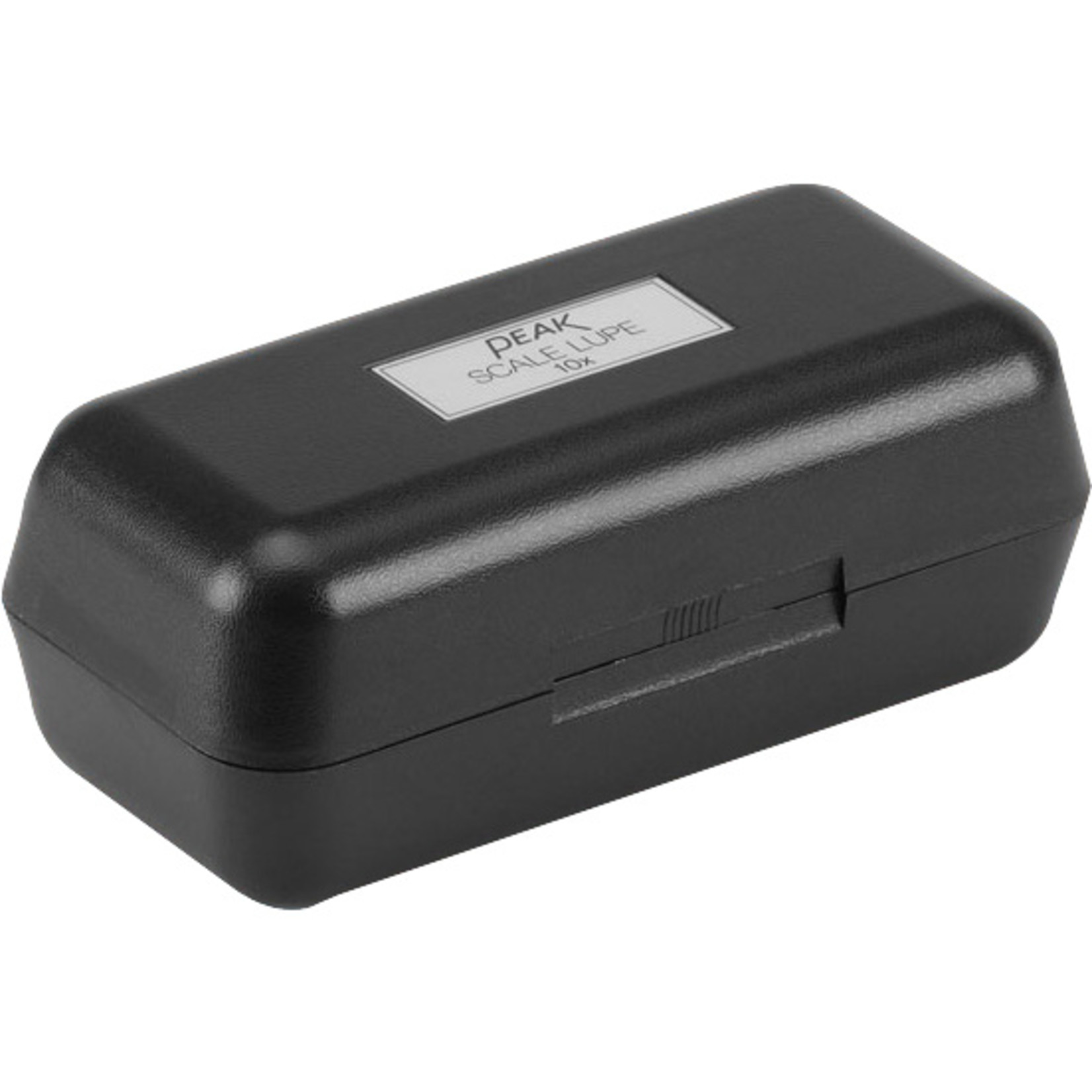

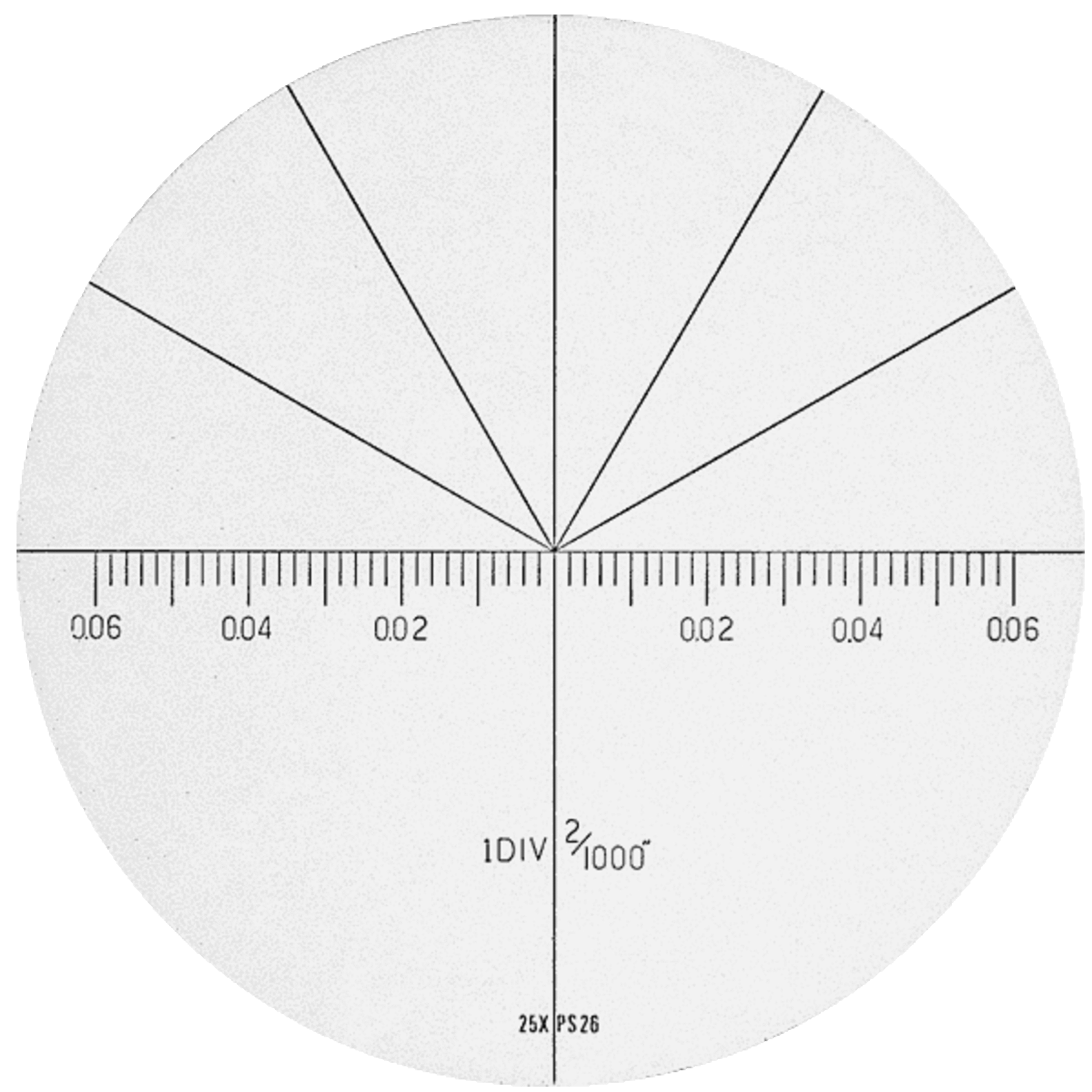

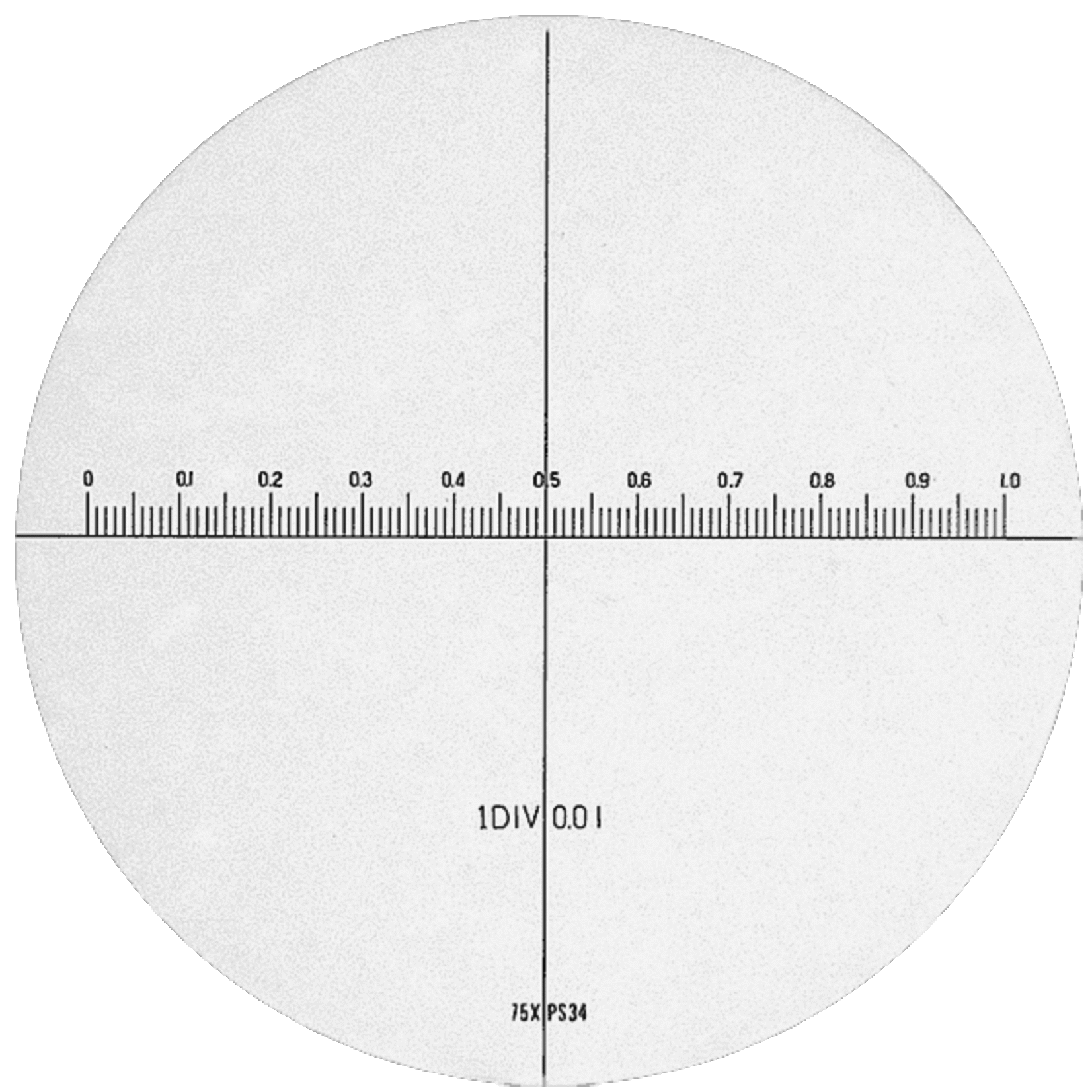

Two additional scales are available. These allow simply length measurement as well as determination of angles. No interchangeable lenses are available for the 2008 measuring microscopes A small, handy transport box prevents damage to this precision instrument with weight of only 82 grams. A clear acrylic base as well as an eye cup can be ordered as replacement parts.

The scale engraved on the focussing ring and the needle on the tube allow depth measurements to an accuracy of 0.1 mm. This microscope is practical for measuring the thickness, height, or depth of objects with different levels.

2008-25

Magnification 25x
Focusable yes
Focusable scale Yes
Field of view 3.3 mm
Measuring length 3 mm
Scale 0.05 mm
Working distance 17 mm
Numerical aperture 0.11
Focal length 19.8 mm
Dimensions 42 x 122 mm
Weight 82 gram
Case Included
Standard scale Included
Display inverted

2008-50

Magnification 50x
Focusable yes
Focusable scale Yes
Field of view 2 mm
Measuring length 1.6 mm
Scale 0.02 mm
Working distance 11.7 mm
Numerical aperture 0.18
Focal length 14.9 mm
Dimensions 42 x 122 mm
Weight 82 gram
Case Included
Standard scale Included
Display inverted

2008-75

Magnification 75x
Focusable yes
Focusable scale Yes
Field of view 1.09 mm
Measuring length 1 mm
Scale 0.01 mm
Working distance 11.7 mm
Numerical aperture 0.22
Focal length 9.9 mm
Dimensions 42 x 122 mm
Weight 82 gram
Case Included
Standard scale Included
Display inverted

2008-100

Magnification 100x
Focusable yes
Focusable scale Yes
Field of view 0.84 mm
Measuring length 0.8 mm
Scale 0.005 mm
Working distance 11.6 mm
Numerical aperture 0.22
Focal length 9.9 mm
Dimensions 42 x 122 mm
Weight 82 grammes
Case Included
Standard scale Included
Display inverted
