  • Cross slide stage for microscopes EK-200 and EK-300

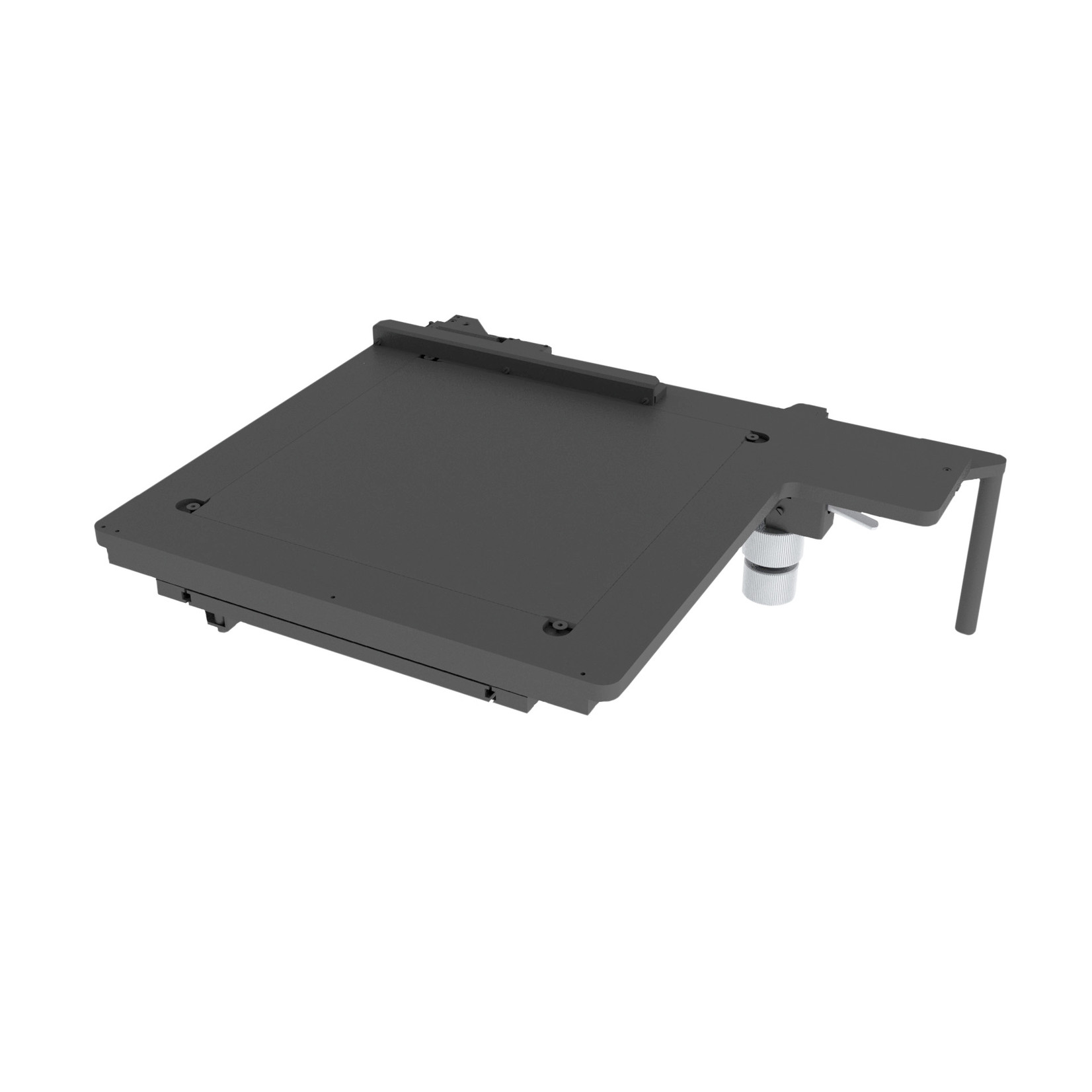

Cross slide stage for microscopes EK-200 and EK-300

Order number: EK-200
€2.200,00 *

* Price without VAT - plus Shipping costs

Precision cross slide table 200 x 200 mm and 300 x 300 mm, equipped with highly precise cross roller bearings

On backorder (Delivery time: 8 weeks after order)

Precision cross slide table 200 x 200 mm equipped with high-precision cross roller guides. The table is moved by means of the knurled screw on the side or by operating the handle (quick adjustment) in X and Y when the lever is turned. Mounting is done by means of the L-bars. The EK-200 is supplied with a metal or glass insert plate, depending on requirements (please specify when ordering). The EK-300 is only supplied with a closed support plate.

EK-200-GB

EK-300-GB

EK-200:

Travel range max. 205 × 205 mm (8" × 8")
Drive Coaxial drive / rack and pinion
with patented quick adjustment
Material Aluminium
Surface anodised, black lacquered
Load capacity 5.0 kg
Weight approx. 6.3 kg

EK-300:

Travel range max. 305 × 305 mm (12" × 12")
Drive Coaxial drive / rack and pinion
Material Aluminium
Surface anodised, painted black
Load capacity 5.0 kg
Weight approx. 18 kg
