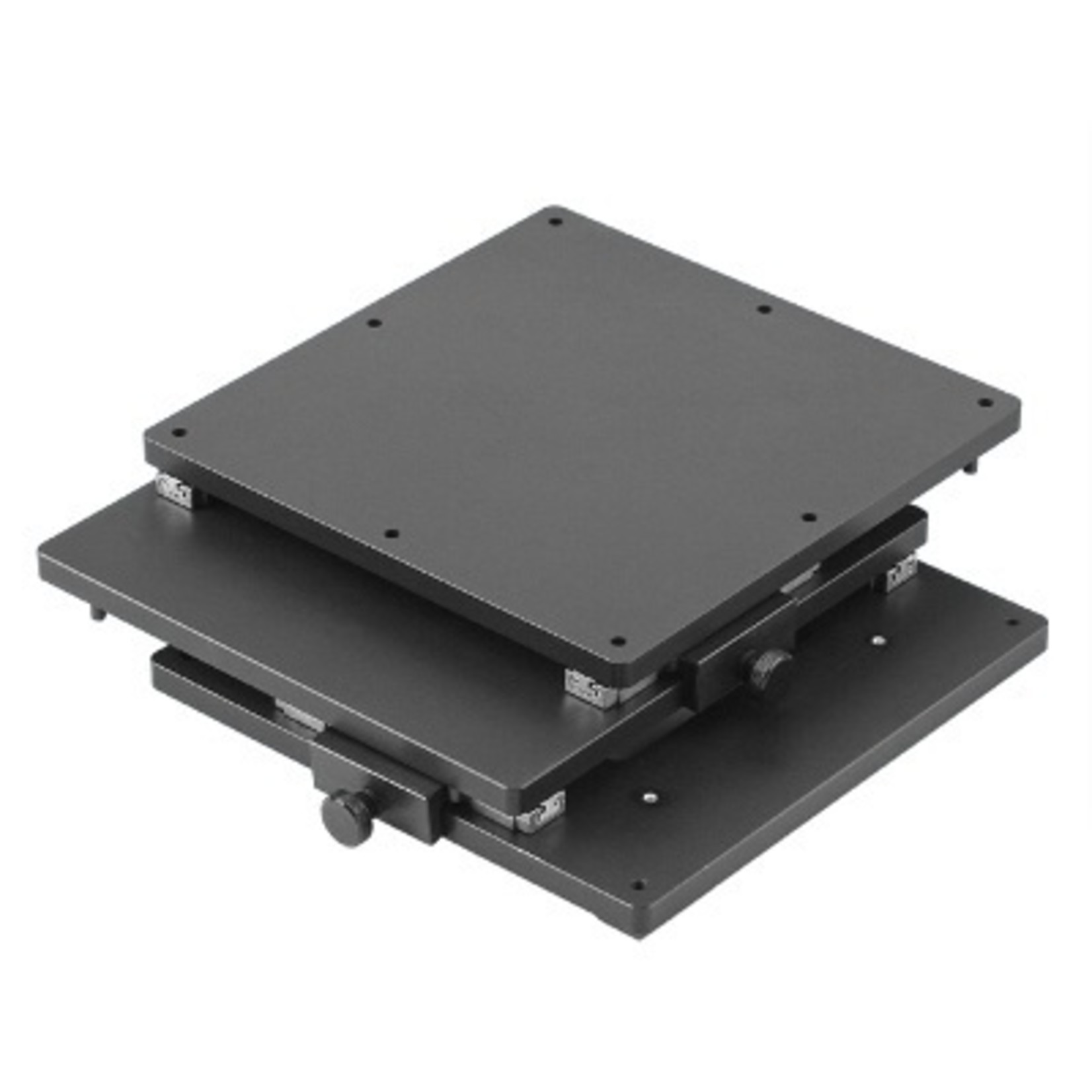

Cross slide stage with a travel of 100 x 100 mm for positioning specimens in microscopes and fixtures. Travel is 100 x 100 mm with closed plate for reflected light applications. Moving is done by hand (without fine adjustment). The stage can be combined with the KITO 10 video microscope. The KT-100 is completely made of aluminium. The surfaces are black anodised. The outer dimensions are 210 x 210 x 50 mm. In the outer positions (from left to right) the dimensions are 310 x 310 mm.

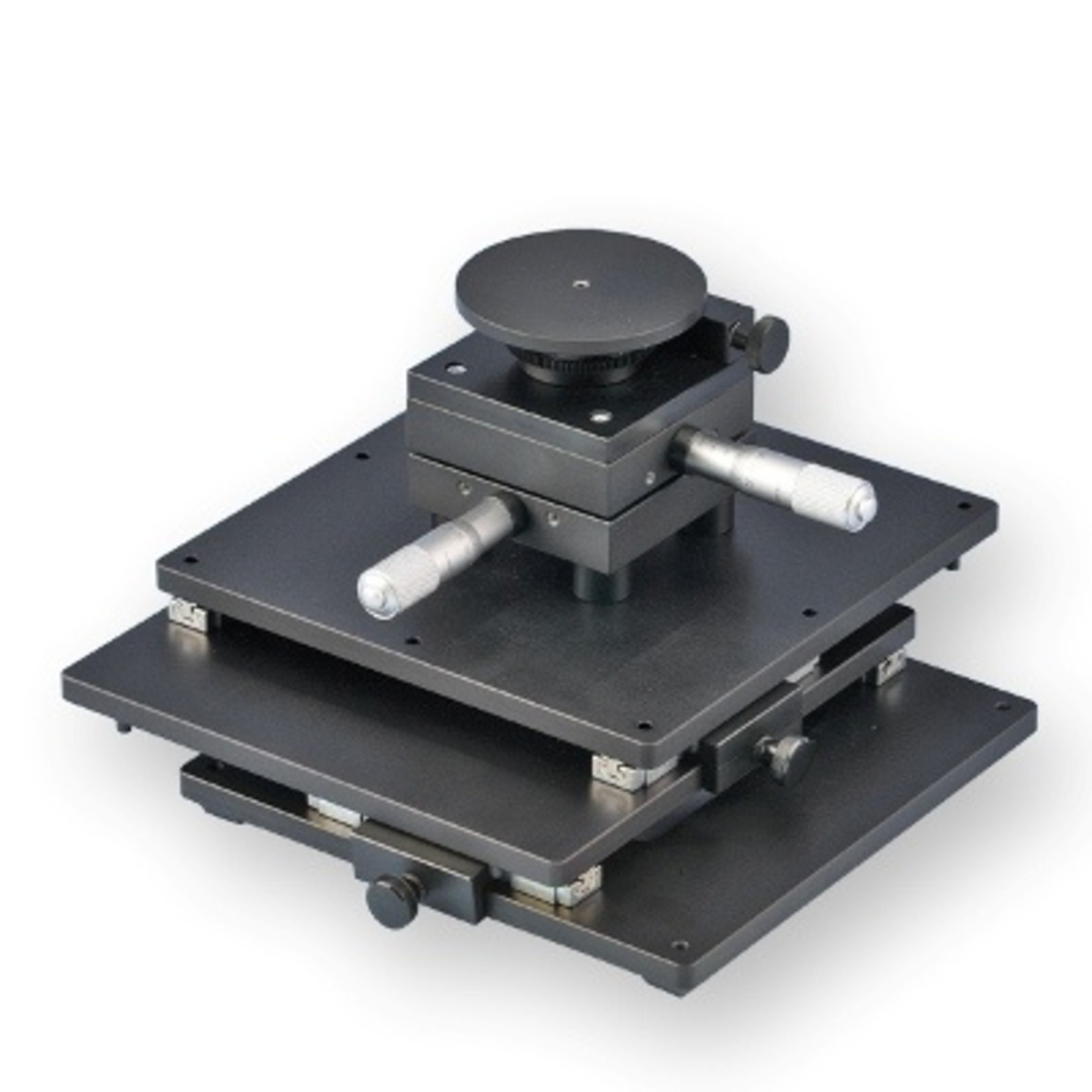

The KT-100 can optionally be combined with the precision cross table MT-25 and/or the rotary table RT-85. Below you will find a link for the drawing for installation purposes.
Zeichnung - Drawing - KT-100
