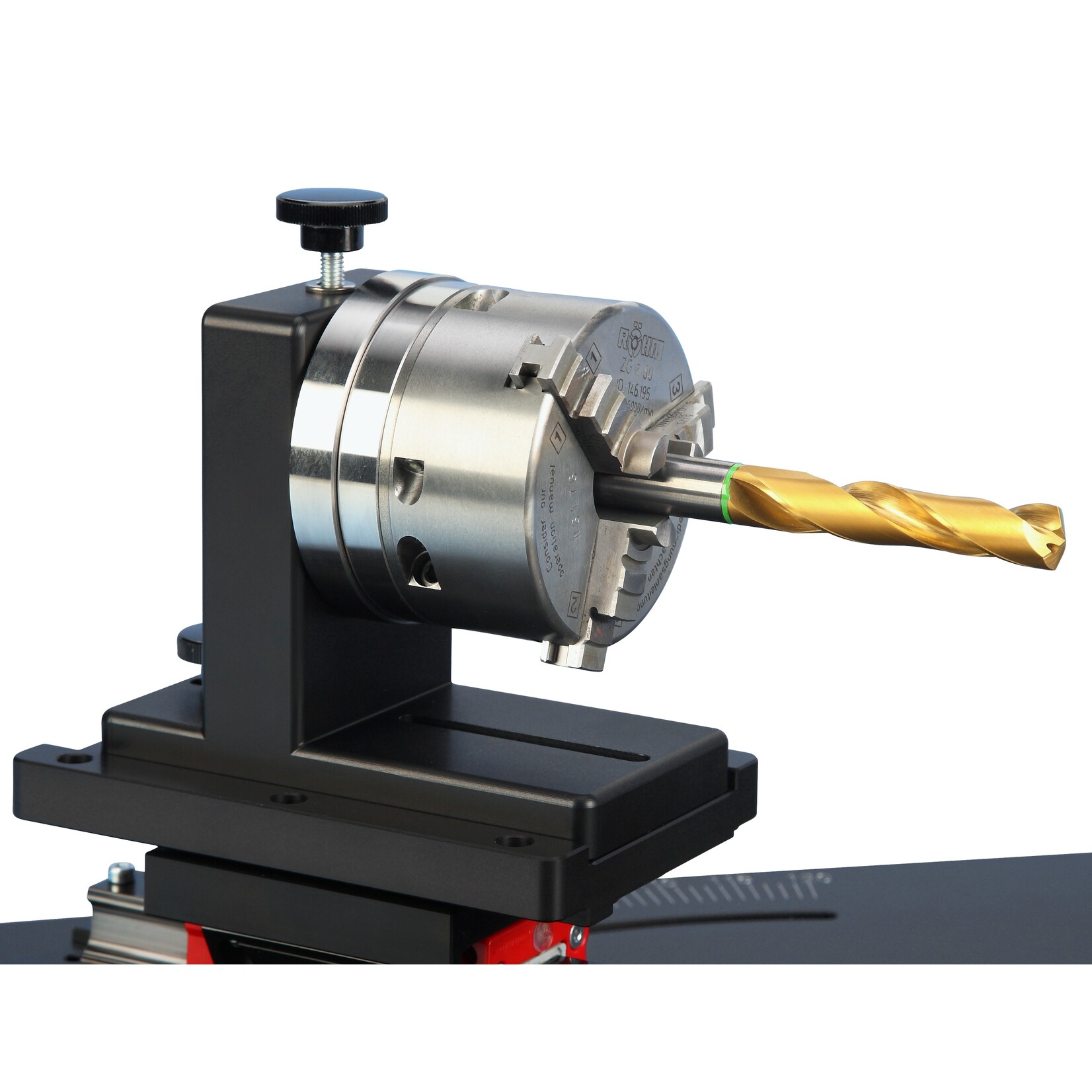

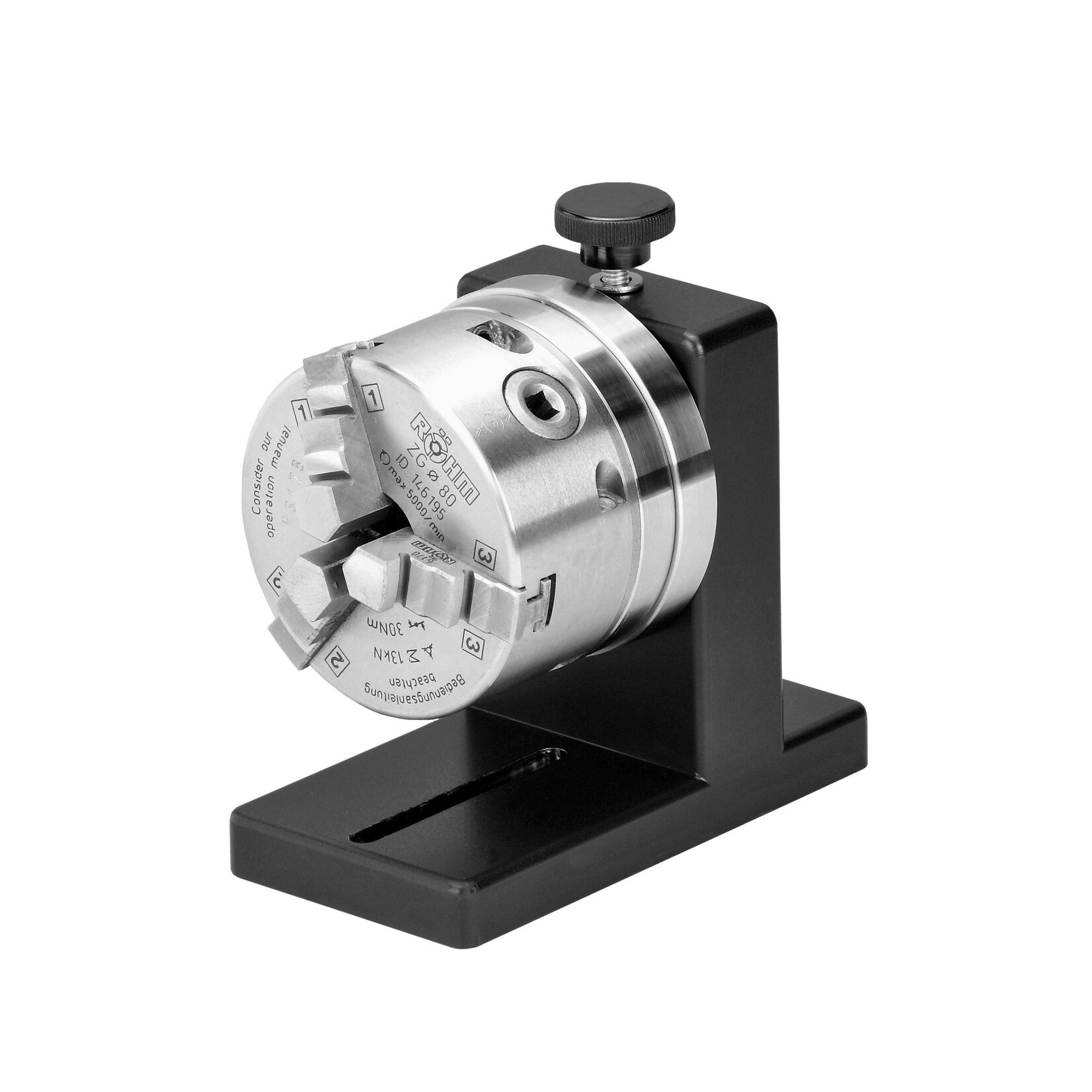

As an alternative mounting device for measuring drills and milling cutters in the CT series tool measuring systems, we offer the ZG HI-Tru precision turning and grinding chuck from Röhm in our adapter system for the CT series.

The RÖHM ZG Hi-Tru manual chuck is ideal for machining workpieces that require maximum concentricity. It is universal in application, but particularly advantageous on grinding machines, dividing heads, and lathes. It is very easy to use. The clamped workpiece can be adjusted very sensitively to the desired concentricity using three tangentially arranged adjustment spindles. Centric clamping via a drive pinion. Technical features: - With one set of turning and drilling jaws each - With spiral ring - With radial fine adjustment for maximum concentricity - Centric clamping - Hardened adjustment spindles - Hardened spiral ring - The chuck must be lubricated regularly to maintain the clamping force. Customer benefits: - Adjustment accuracy within 0.005 mm - Repeat clamping accuracy 0.015 mm - Inductively hardened support surface for adjustment spindle - Steel mounting flange - Cast body - Fine adjustment without loosening the chuck fastening screws
