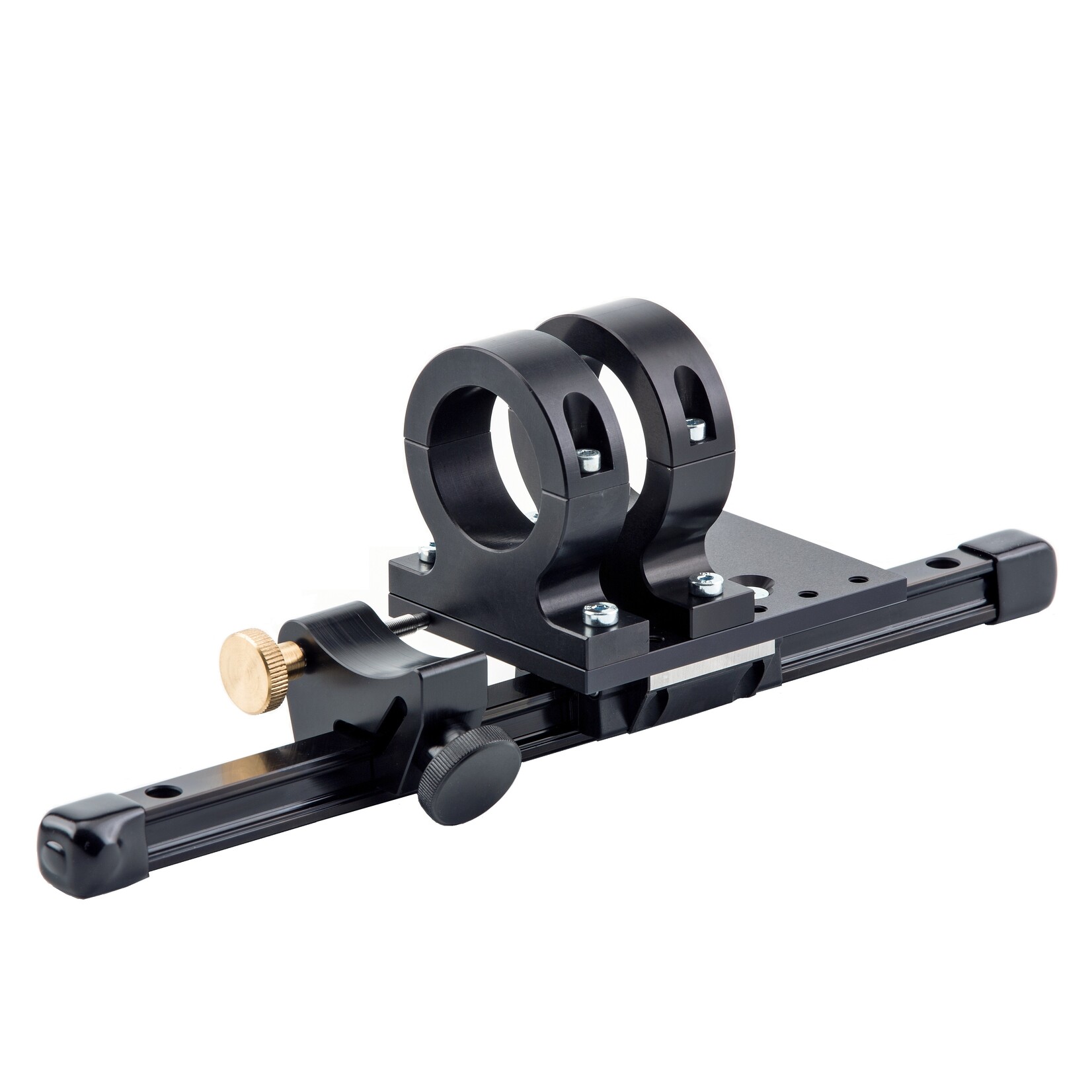

The Schneeberger precision guides of the K1/G0 class are combined with an adapter plate and clamps for zoom optics and fine adjustment. The 300 mm guide has one carriage and the 400 mm guide has two carriages. The SHR-P series clamps can be screwed onto the adapter plate (see product group SHR-P) or the user's own clamps can be used. The adapter plate ADP-NAV can be screwed either vertically or horizontally on the carriage of the guideway (horizontally on 400 only on one carriage). The fine adjustment consists of a clampable holder with a mechanical built-in spindle with upright spindle and 25 mm adjustment travel.
The prices quoted here for the guide do not include holding clamps. These must be selected from the SHR-P product group as required.
Zeichnung - Drawing - P300-P
