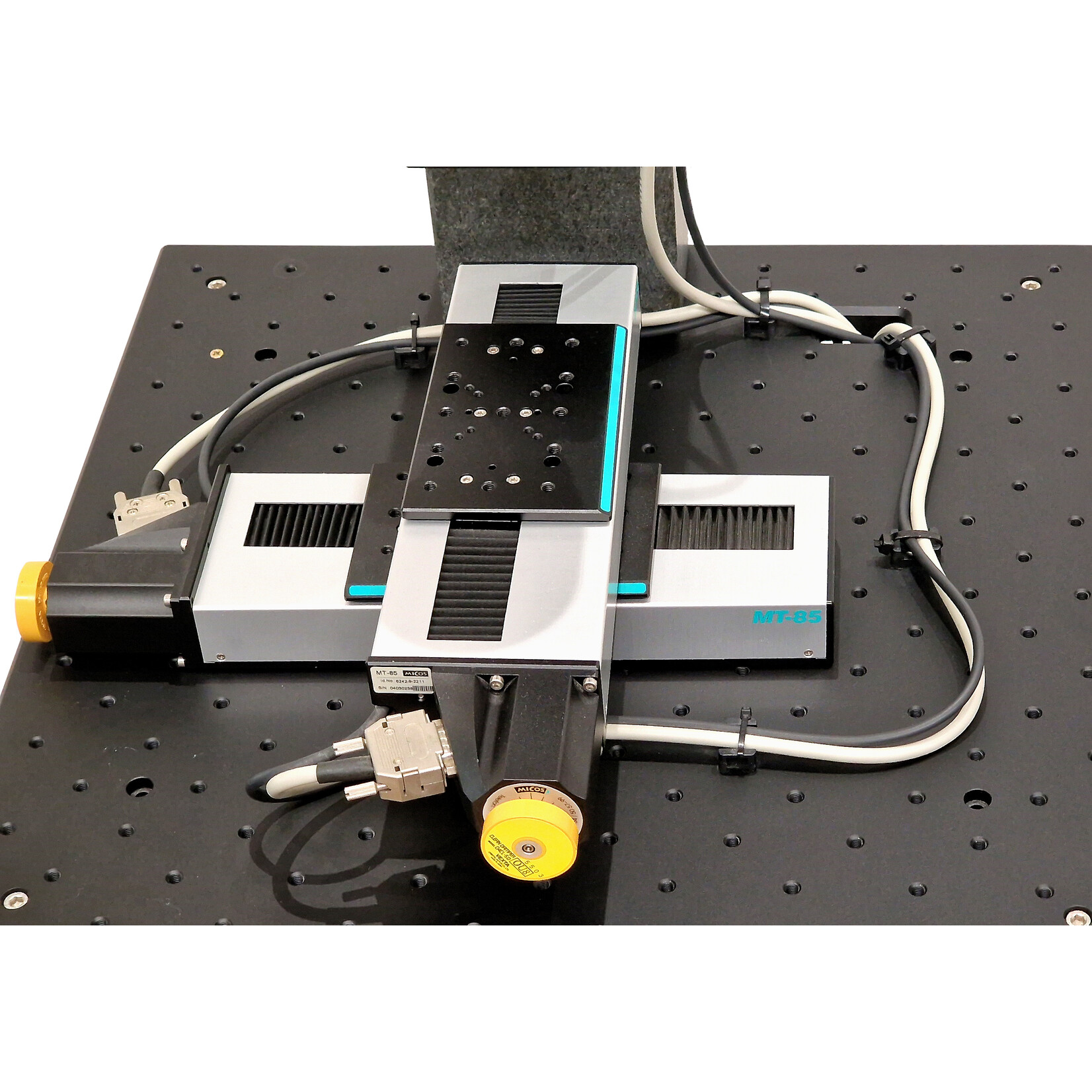

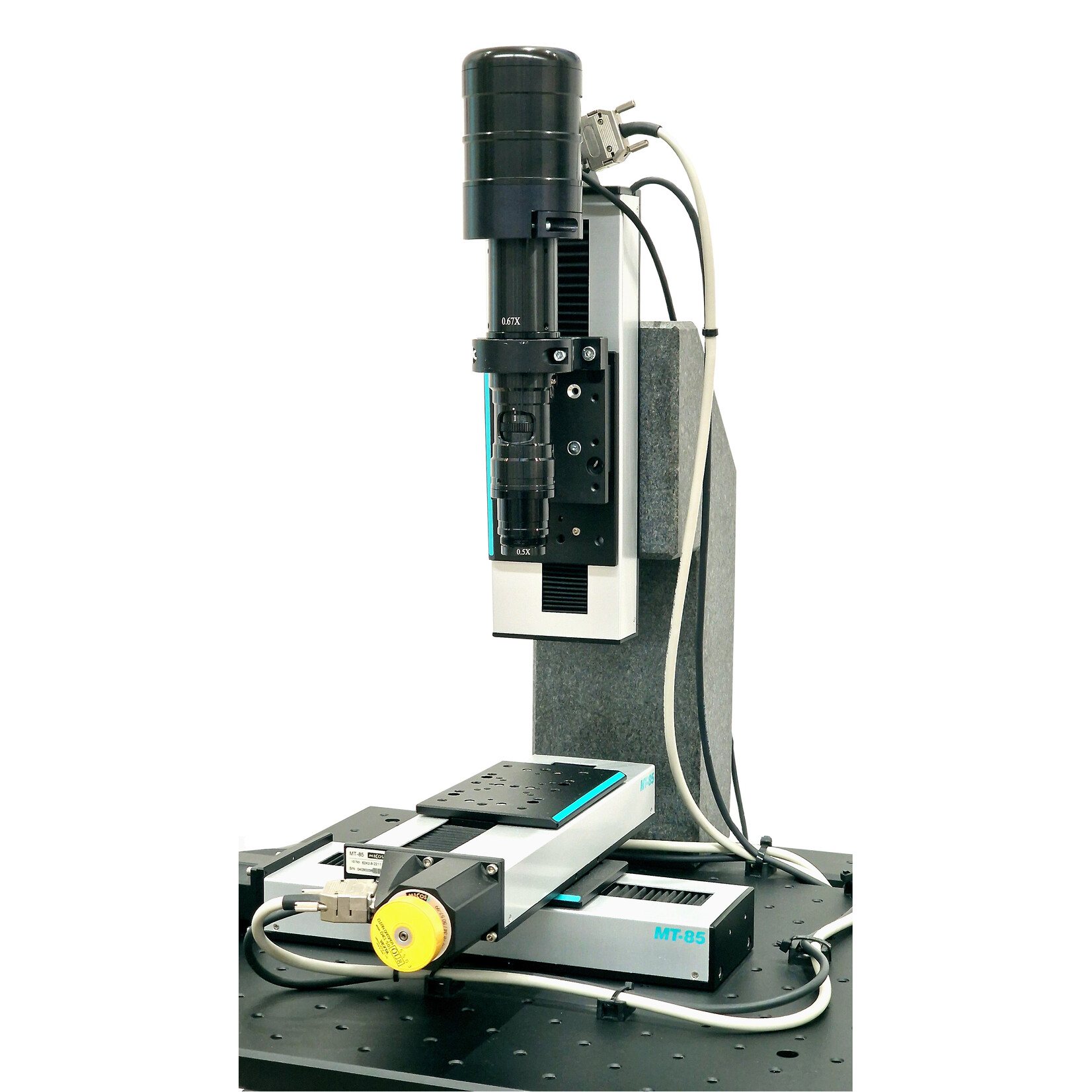

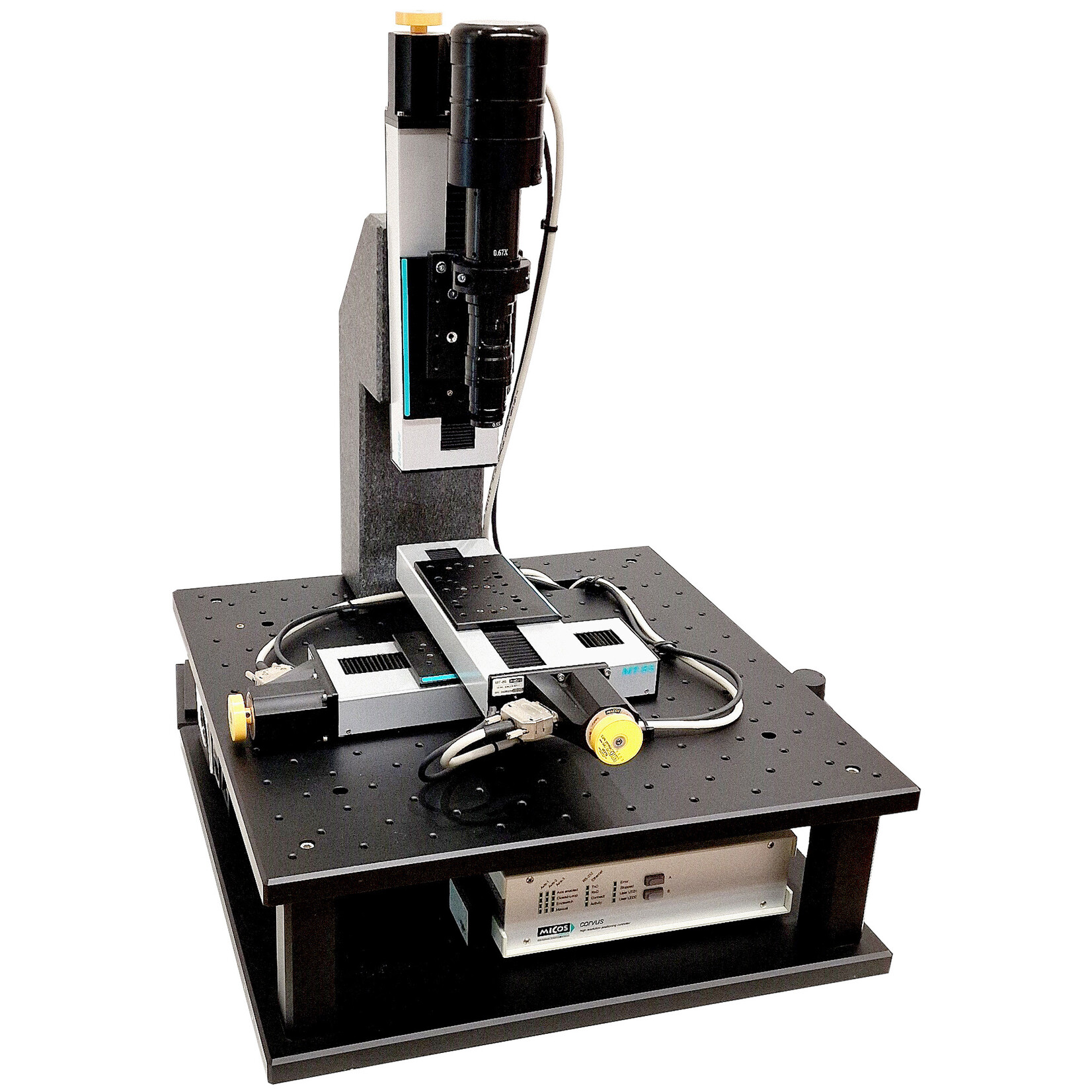

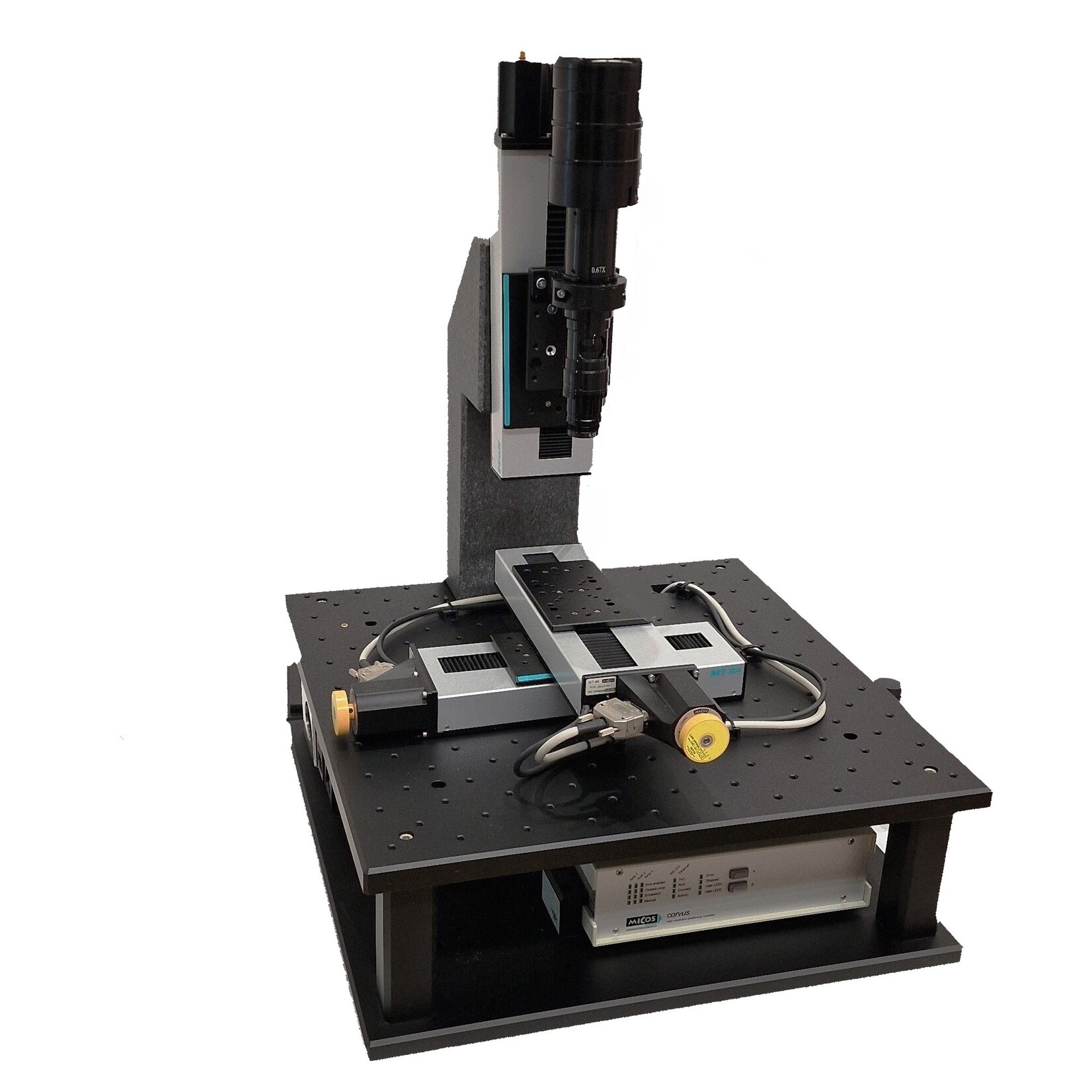

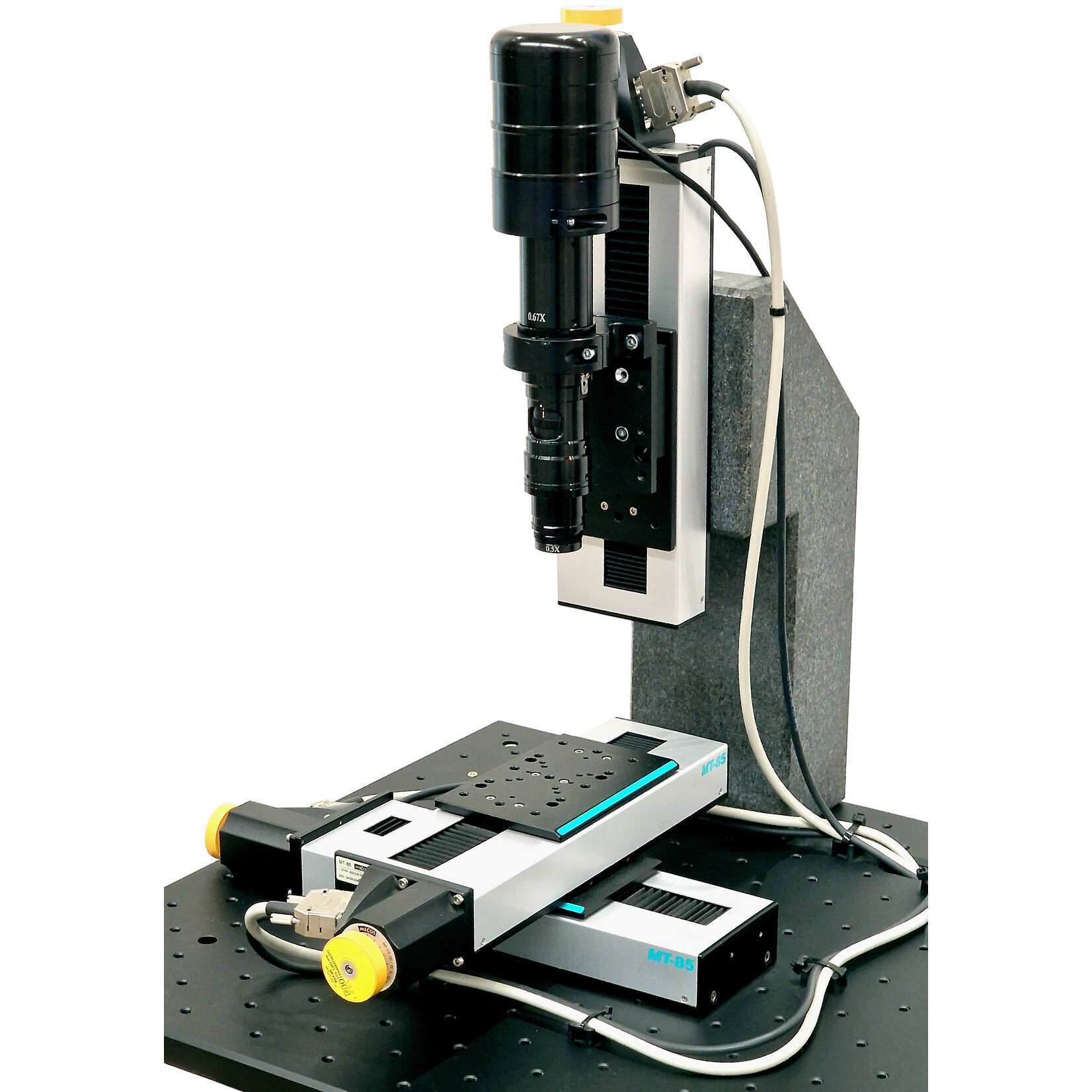

High-quality video microscope with motorized measuring axis – precise Z-axis, X- and Y-axes, USB video zoom microscope. This robust special measuring system is based on a heavy aluminum double plate. A granite extension arm for the motorized Z-axis is mounted on it, to which the USB video zoom microscope is attached. The three motorized axes X, Y, and Z each have an integrated measuring system that transmits the data directly to the Metric measuring software.

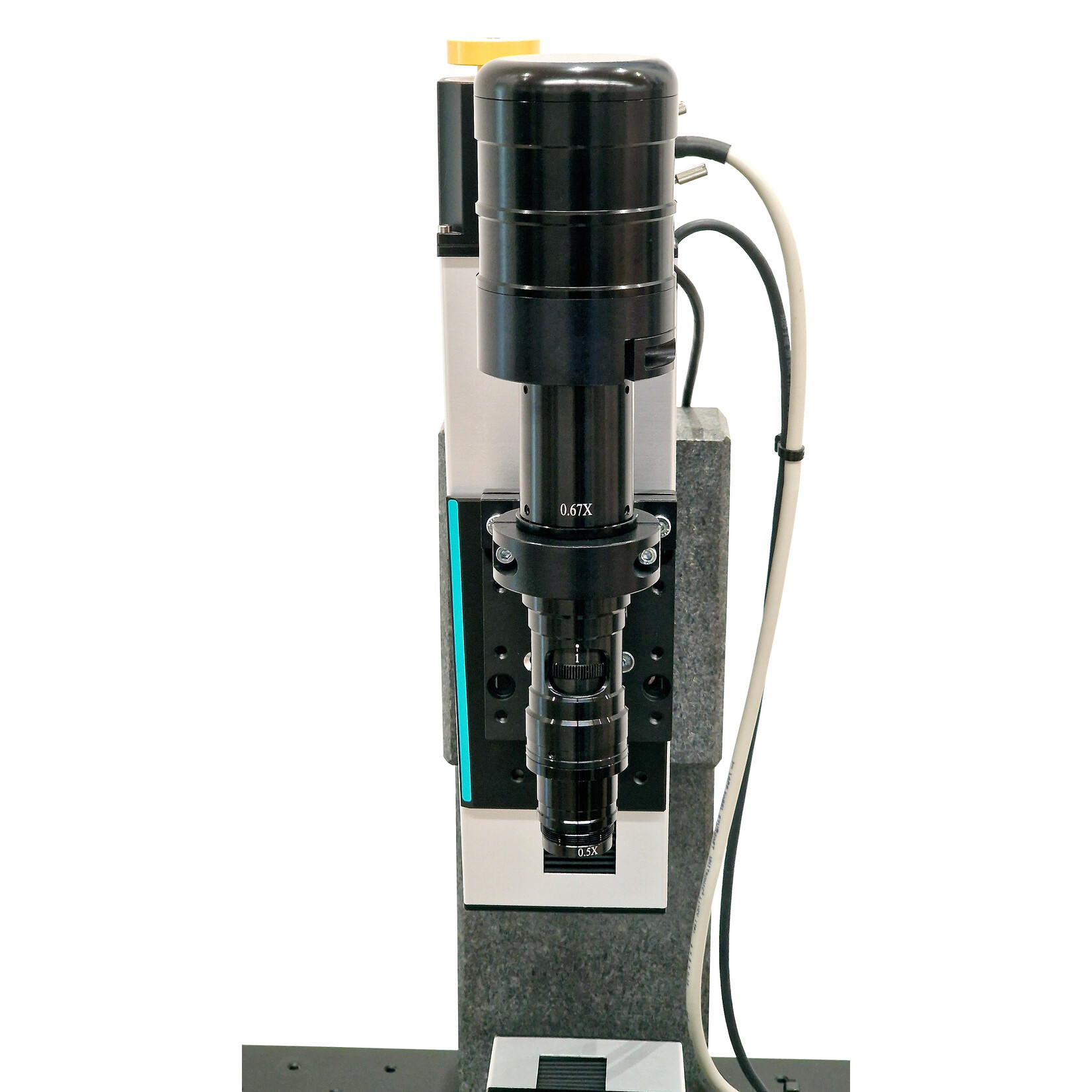

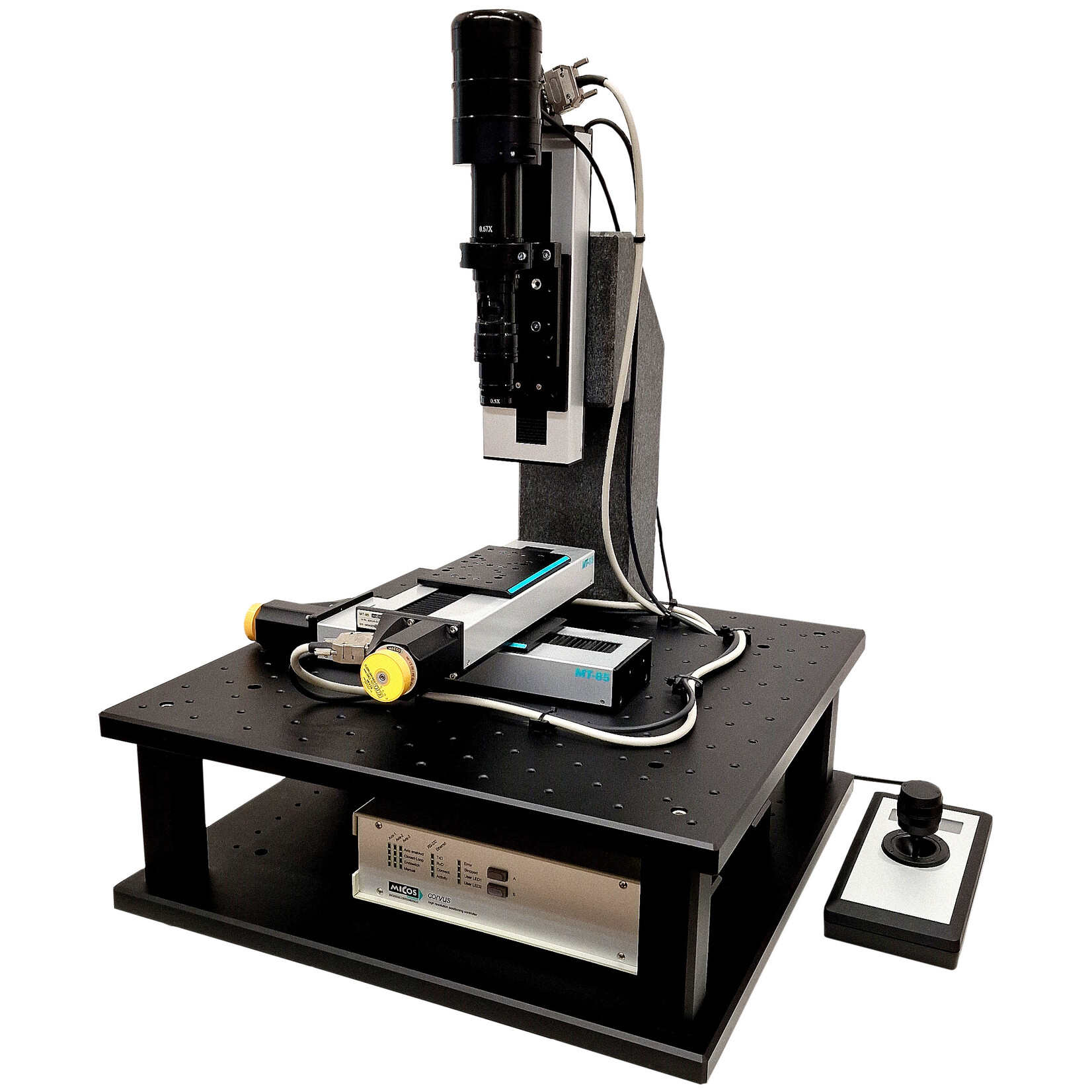

The axes can be controlled either via the joystick or via freely programmable travel ranges, resulting in maximum flexibility in measurement control. The zoom optics offer various lighting options: The standard version comes with a high-quality, dimmable LED ring light. DOM lighting or coaxial lighting are available as options to optimize contrast depending on the application. Different attachment lenses for the zoom optics allow for a wide range of magnification options – ideal for precise measurements of small components and fine surface structures.

• Precise measurement thanks to integrated measuring systems in X, Y, and Z
• Flexible control: joystick or programmable travel ranges
• Versatile lighting for optimal contrast and detail recognition
• Scalable magnification through various attachment lenses
