Microscope stand with and without drilling patterns in the base plate

Order number: CV-ST-OL
€1.020,00 *

* Price without VAT - plus Shipping costs

The CV-ST stand is available in two versions. One base plate with and one without drilling patterns as well as precision guide 400 mm long and fine focus system

In stock (5) (Delivery time: immediately available)

We can supply the microscope stand CV-ST in two different versions:

Stand without perforations. Mounted is a 400 mm long precision guide with two carriages and fine focusing.
- Order. No. CV-ST-OL

Stand with perforations. Mounted is a 400 mm long precision guide with two carriages and fine focusing.
- Order. No. CV-ST-ML

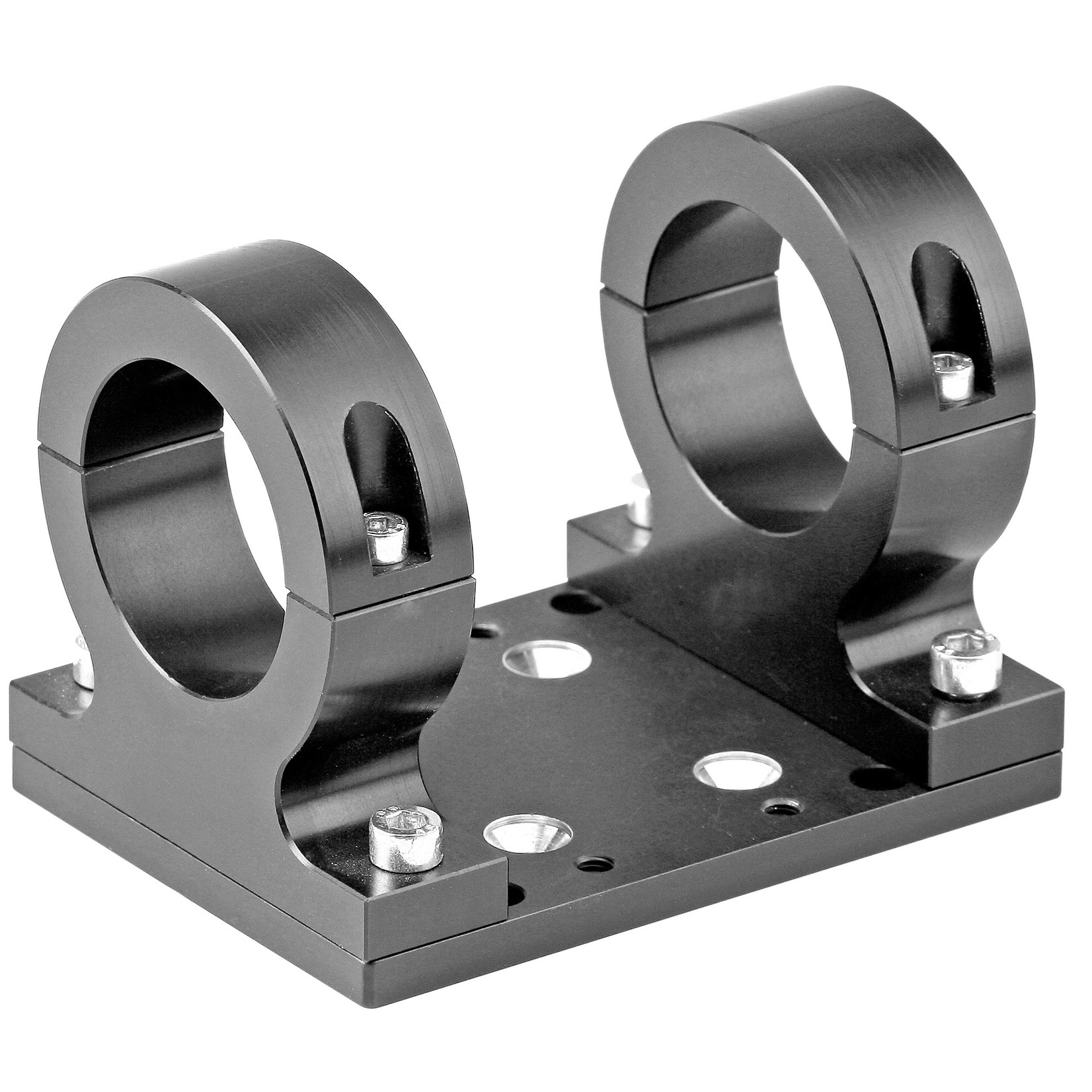

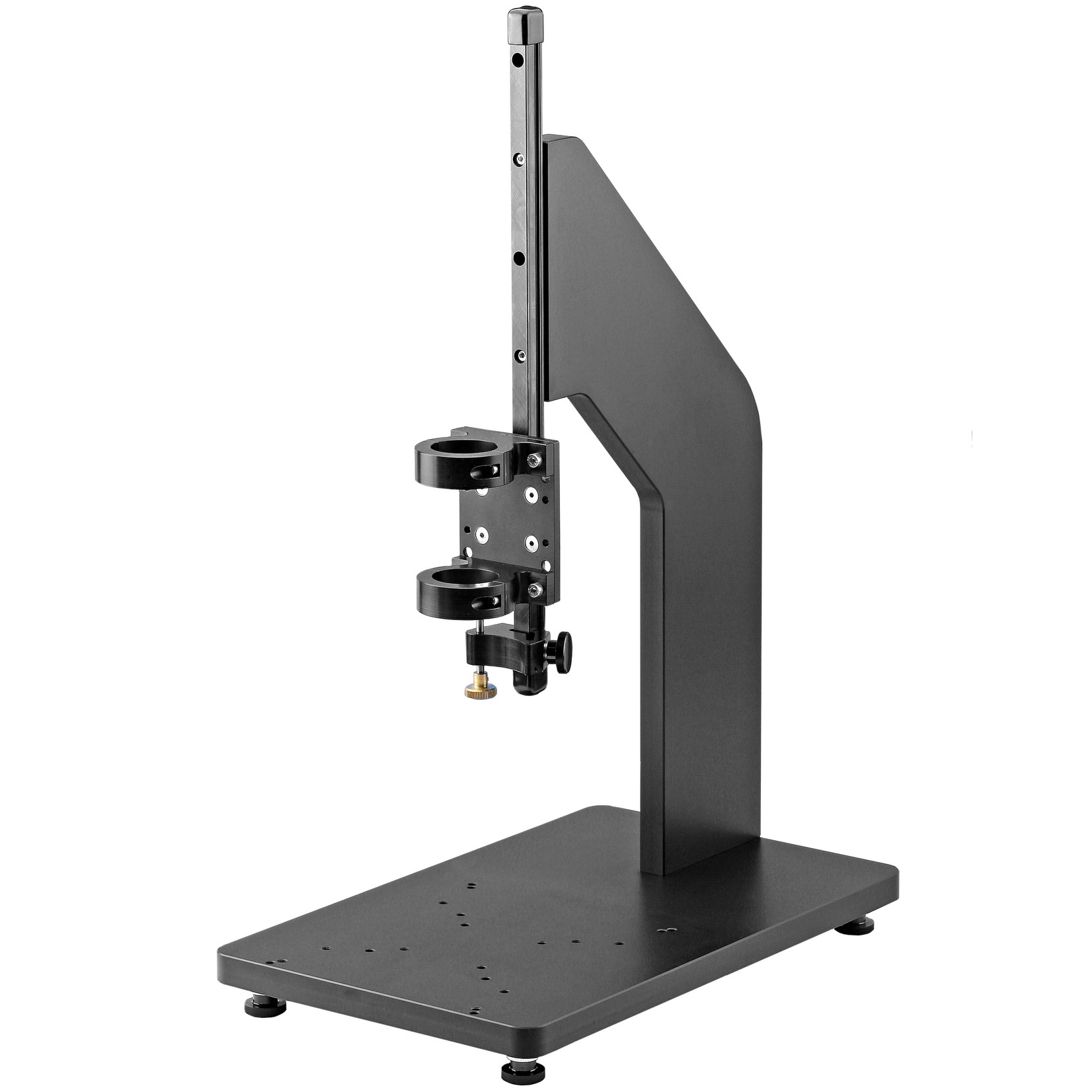

The stand consists of an arm made of 20 mm thick milled aluminum and the height adjustment by means of a precision guide BM-15 which is equipped with two carriages. On the two carriages is mounted an adapter plate with various perforations. The fine focusing is done by a mechanical dial gauge with a standing spindle. The 400 x 250 mm base plate is also made of 20 mm face-milled and anodized aluminum. The feet of the base plate can be individually adjusted in height and fixed. Weight: 12 kg, dimensions: 400 x 250 x 550 - 500/700 mm. Below you can download a drawing for the stand and the adapter plate for mounting brackets. The scope of delivery already includes a mount on the adapter plate. You will also find a drawing for this mount below.

Stativ_CV-ST

Adapter_plate_ADP-NAV

Adapter_ADP-NAV-3
