SUNFLOWER stereomicroscope LED illumination

Order number: SF-DOM
€3.600,00 *

* Price without VAT - plus Shipping costs

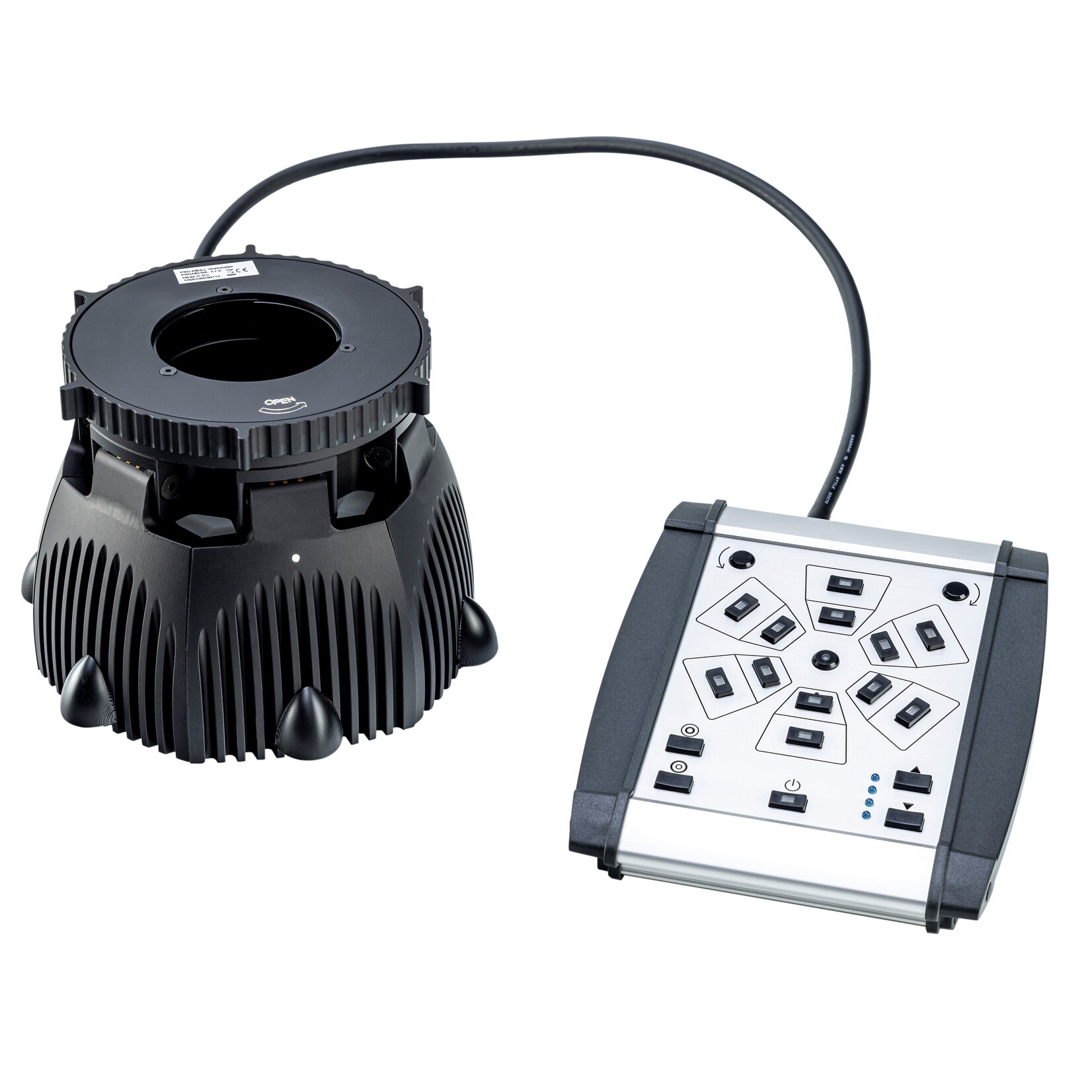

The SUNFLOWER multisegment LED microscope illumination is designed to provide exceptional incident light illumination for difficult to illuminate stereomicroscope specimens

In stock (1)

SUNFLOWER multi-segment LED microscope illuminator is designed to provide extraordinary incident light illumination for difficult-to-illuminate stereomicroscope samples. It generates soft, glare-free diffused illumination suitable especially for cases, where other illumination techniques fail. LEDs with high color rendering index Ra>95 provide excellent color reproduction. The exceptionally high-quality workmanship of the LED lighting units, the CNC-manufactured aluminium components and the perfectly functioning control unit result in lighting of the absolute extra class. Excellent for illumination of insects, semiconductor parts, jewelry, gemstones, metals, rocks, plastics, glass, specimens in liquids in Petri dishes and highly reflective surfaces

  • 12+1 independently controlled LED segments creating pseudo-spherical surface
  • Illuminate the specimen from almost all directions without producing shades
  • Diffusers of LED segments for glare reduction

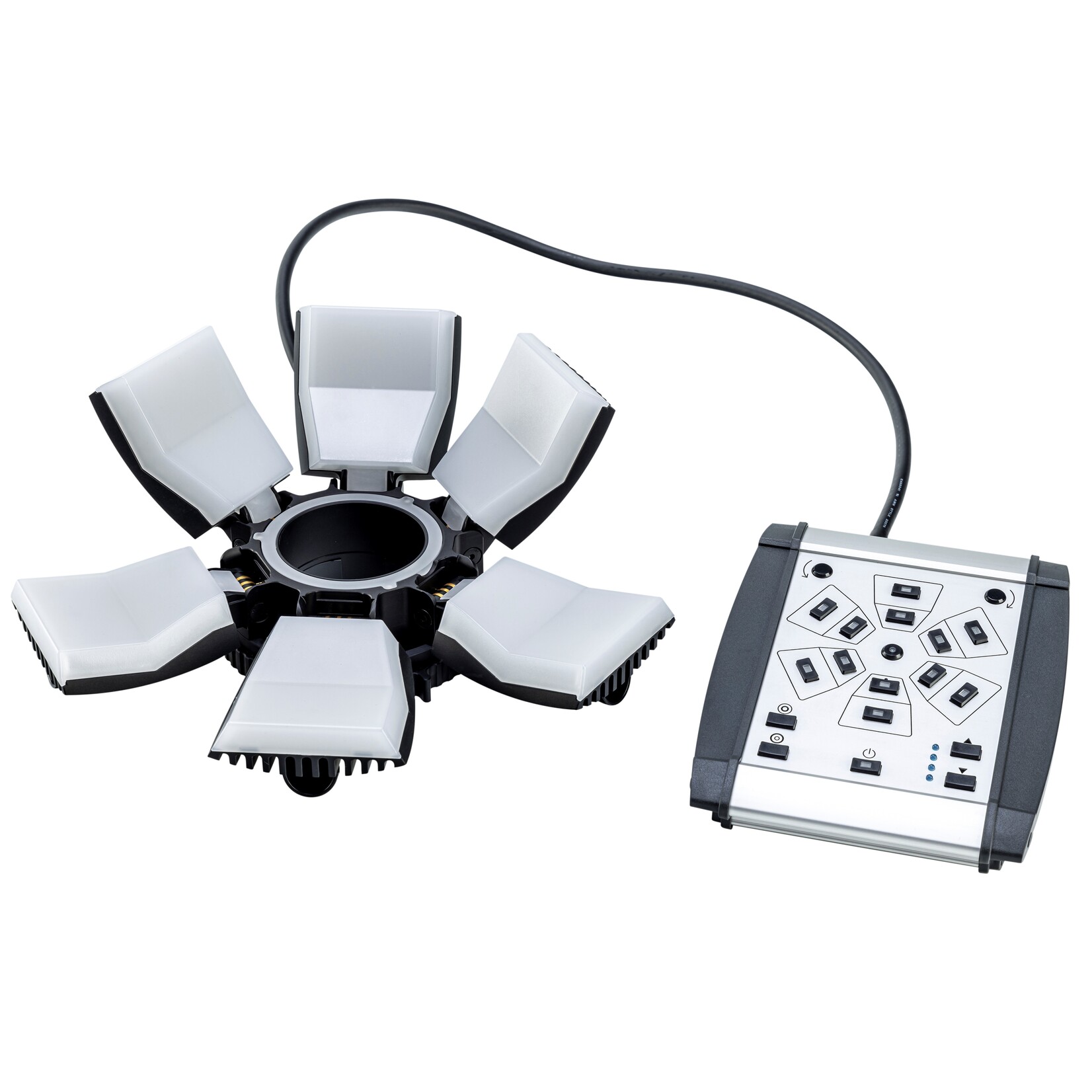

  • 6 tilting arms for convenient specimen handling and setting the angle of light incident on a specimen
  • 432 LEDs provide high illuminating power
  • LEDs with high color rendering index Ra>95 provide excellent color reproduction
  • Single button press switches on / off the whole upper and lower ring formed by LED segments
  • Rotation of the preset combination of lit / switched off LED segments clockwise and counter clockwise
  • Constant color temperature over the whole illumination range
  • Constant brightness – no flickering and no interference with the camera’s image frequency
  • Low power consumption, lifetime over 54 000 hours
  • Environmentally friendly solution – free from halogen and mercury, RoHS compliant
  • Dimensions: 195 mm x 195 mm x 133 mm (height)
  • PC control option (SDK available)
  • CE certified

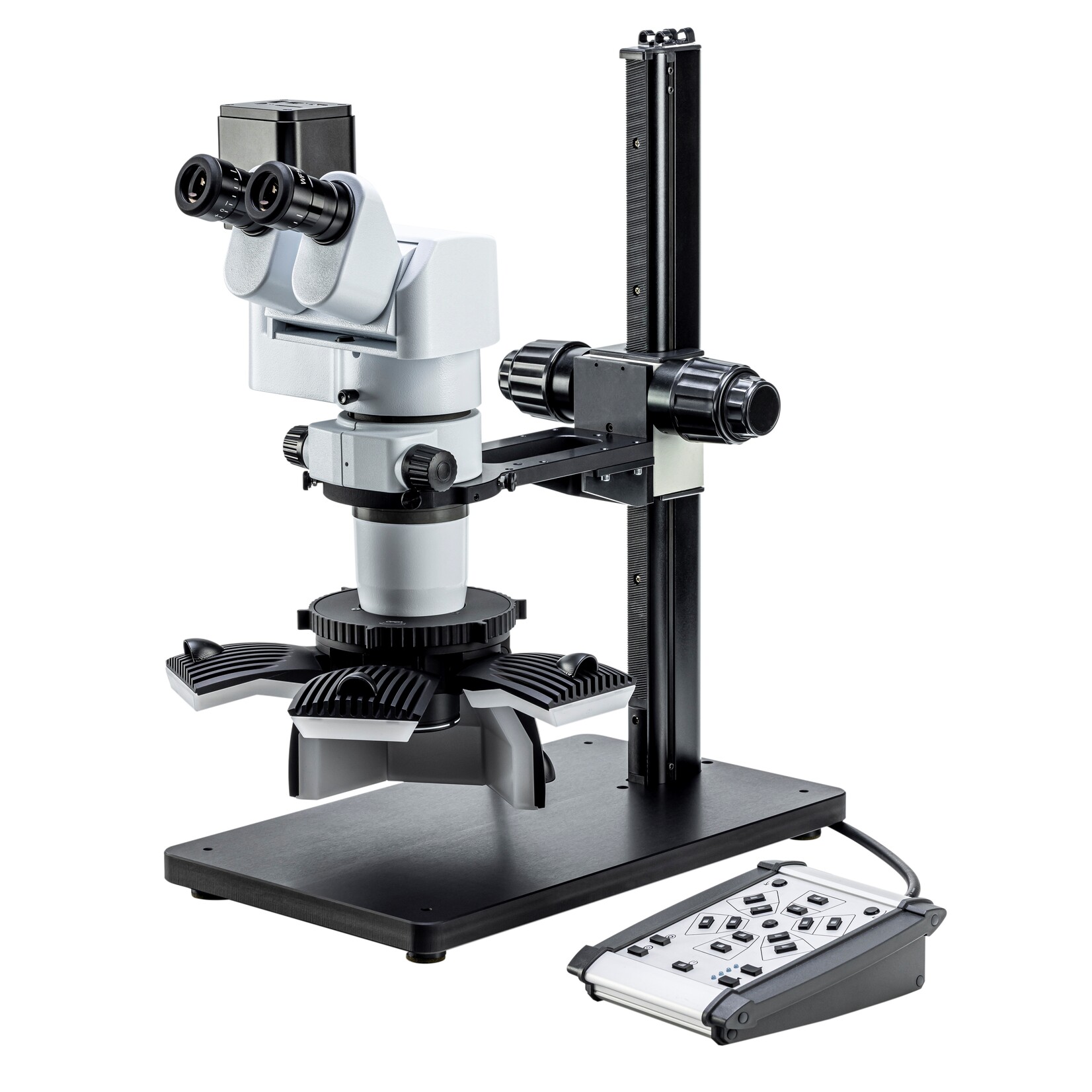

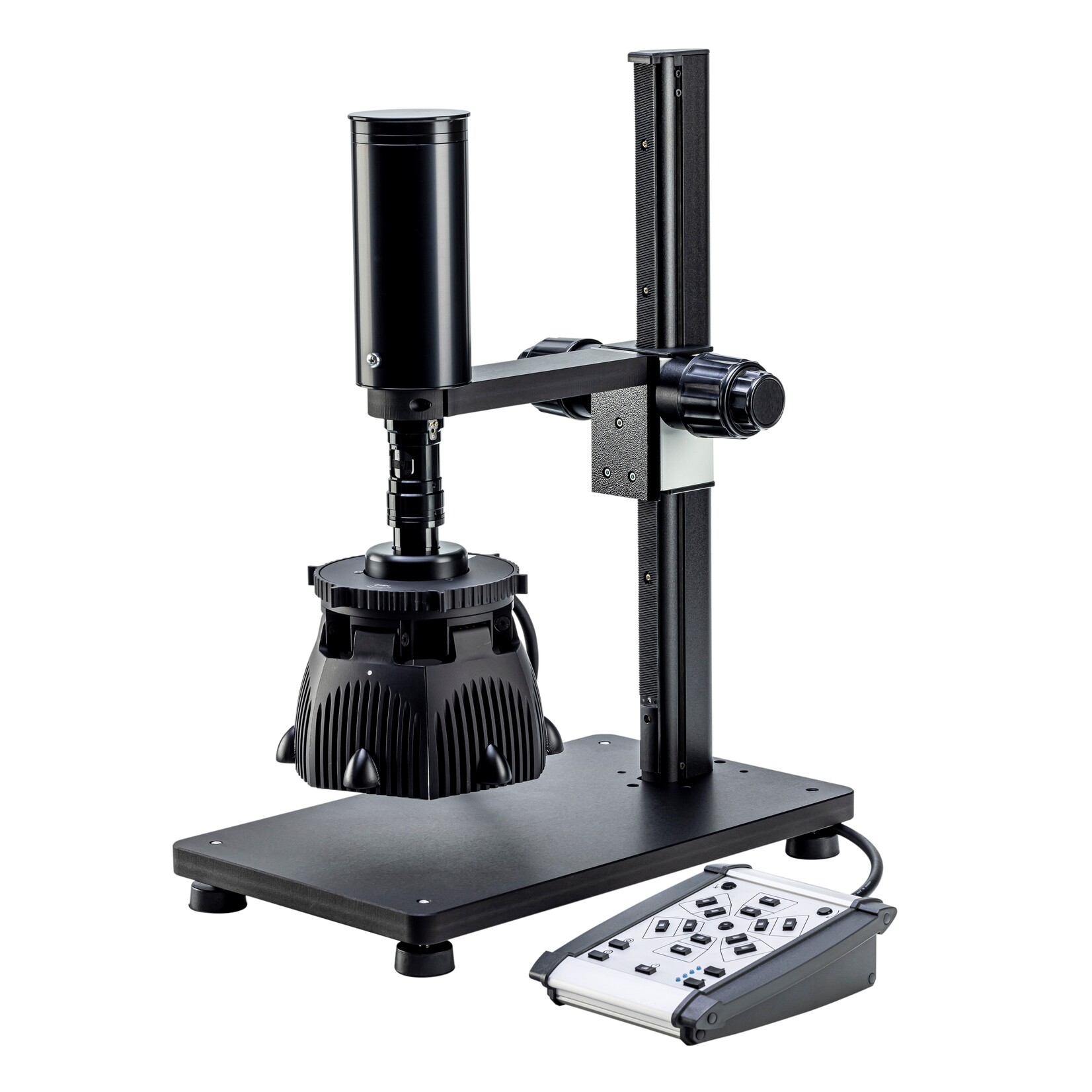

The SUNFLOWER illuminator can be used with stereomicroscopes from various manufacturers. Regarding the compatibility, the most important parameter of the stereomicroscope is a diameter of its lens (objective). The reason is, the diameter of illuminator’s upper opening for the lens is 69 mm. Lenses with diameter up to 69 mm can go through the upper opening of the illuminator. In such case, there are two important parameters of the lens, which need to be considered:

WD – Working Distance
LL – Length of the Lens

In order to be able to focus the microscope without a need to lift up the specimen or to open the arms of the illuminator, the following criterion should be accomplished: WD + LL > 133 mm (That means, that the sum of Working Distance of the lens and Length of the Lens needs to be higher than is the height of the illuminator.) Lenses with diameter greater than 69 mm: Lenses with diameter greater than 69 mm cannot go through the upper opening of the illuminator. In such cases, the working distance of the lens used needs to be higher than is the height of the illuminator (which is 133 mm) or the specimen needs to be lifted up under the illuminator.
