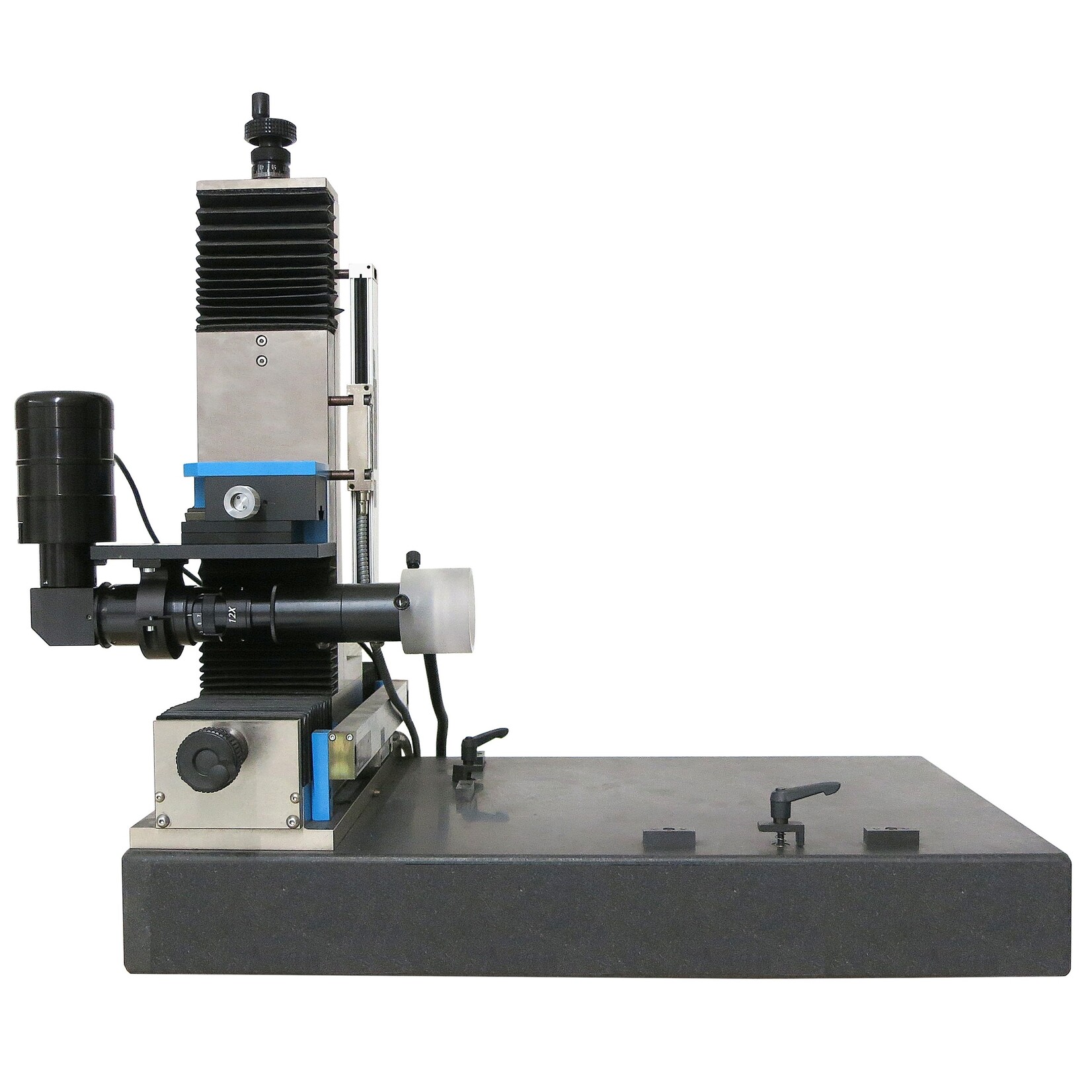

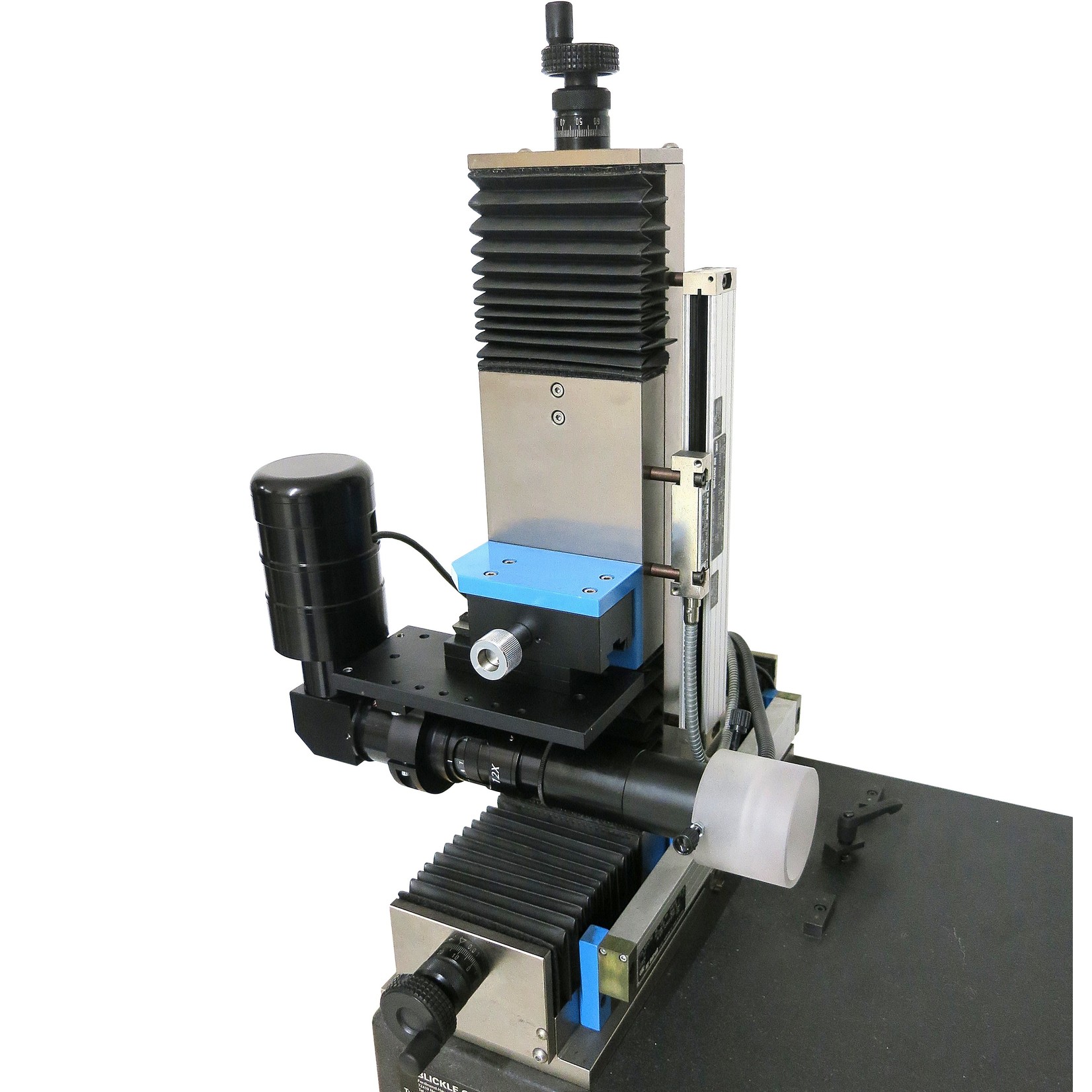

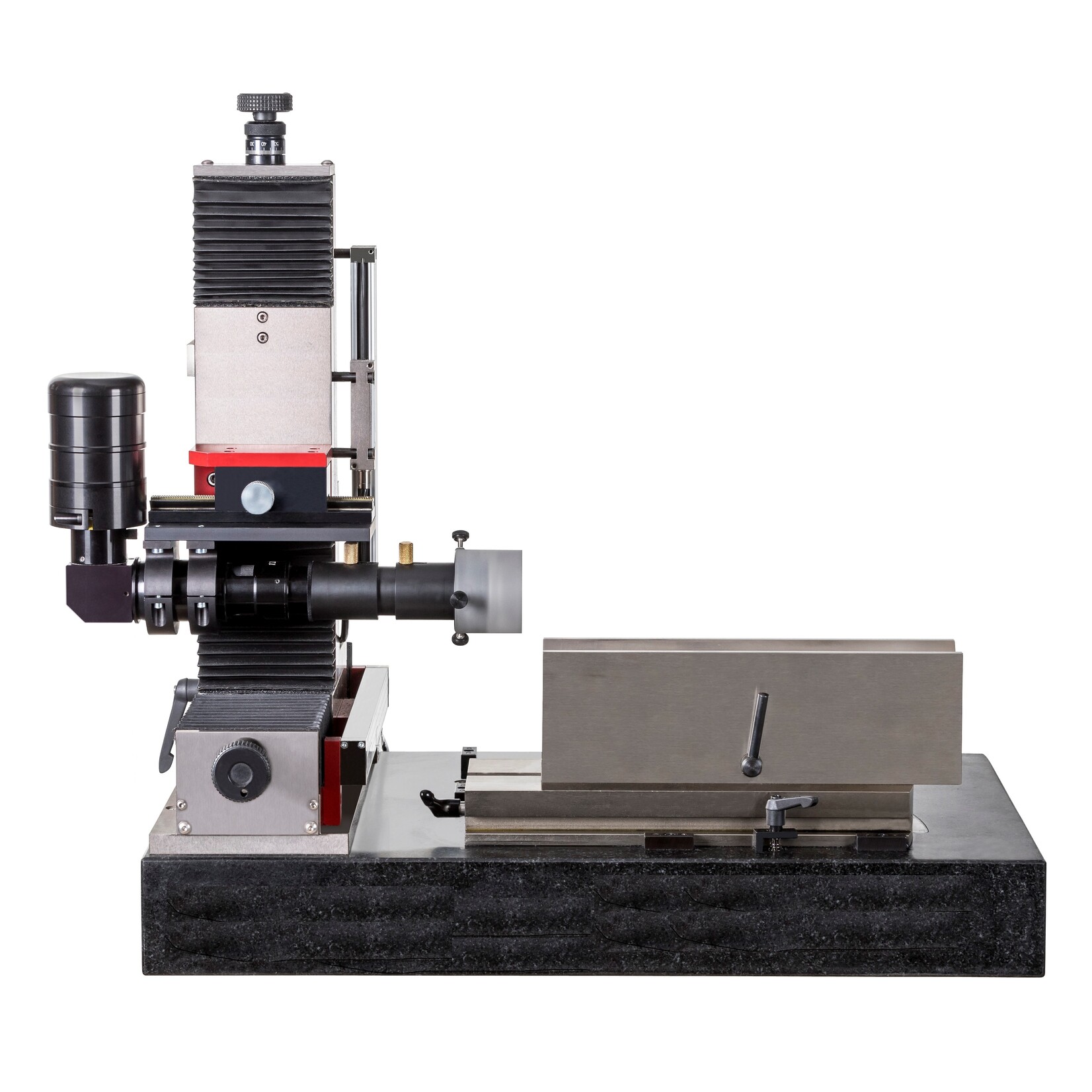

Here we offer you the upgrade of a Blickle Multi Check tool measuring system. The extremely solidly built Multi Check PC500 still enjoy great popularity. We have put together an upgrade for these devices. The old optical solution is dismantled and by means of an adapter plate which has the appropriate hole pattern, the ready adjusted zoom system can be mounted immediately. The zoom system is mounted on an adapter plate and can be adjusted by the existing rack and pinion adjustment.
This system uses a 12x detent zoom system, which has an extended depth of field and zoom range. The measuring systems of the Multi Check are read out by means of a new interface and transferred to the Metric MT measuring software. In this way, an old device is upgraded to the latest technology and offers all the conveniences of video measurement technology and fast documentation of the measurement results.
Scope of delivery of the retrofit KITO Blickle-Multi-Check
KITOZOOM 12x zoom with 3 Mpx USB camera
LED cold light source with slit ring light and diffuser
Adapter with clamps
Interface for the measuring systems
Measuring software Metric MT
Calibration disc with test certificate
Installation and training as well as delivery of a PC and 4K monitor is of course possible. If delivered with a PC, the measuring software is installed and the video system is completely calibrated.
