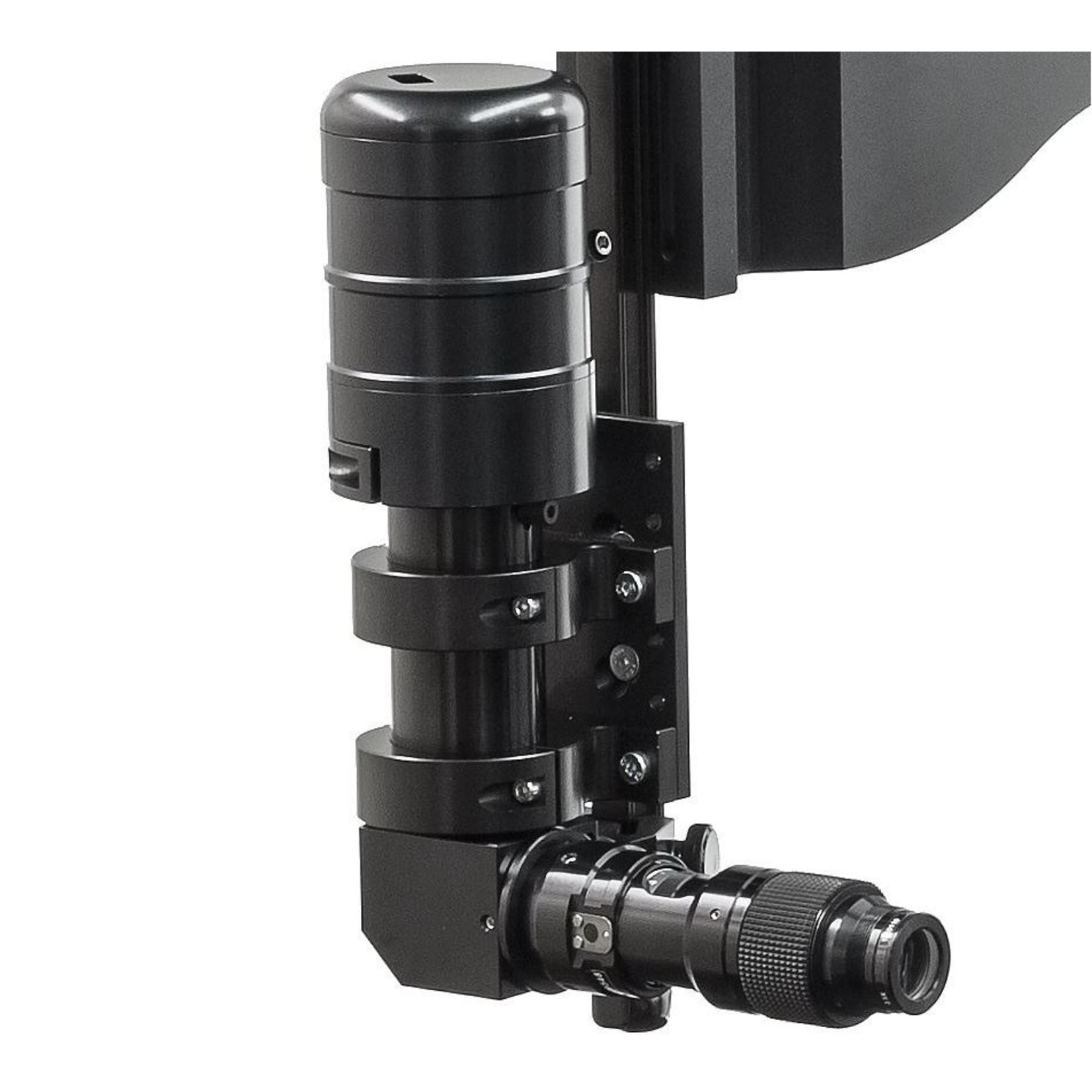

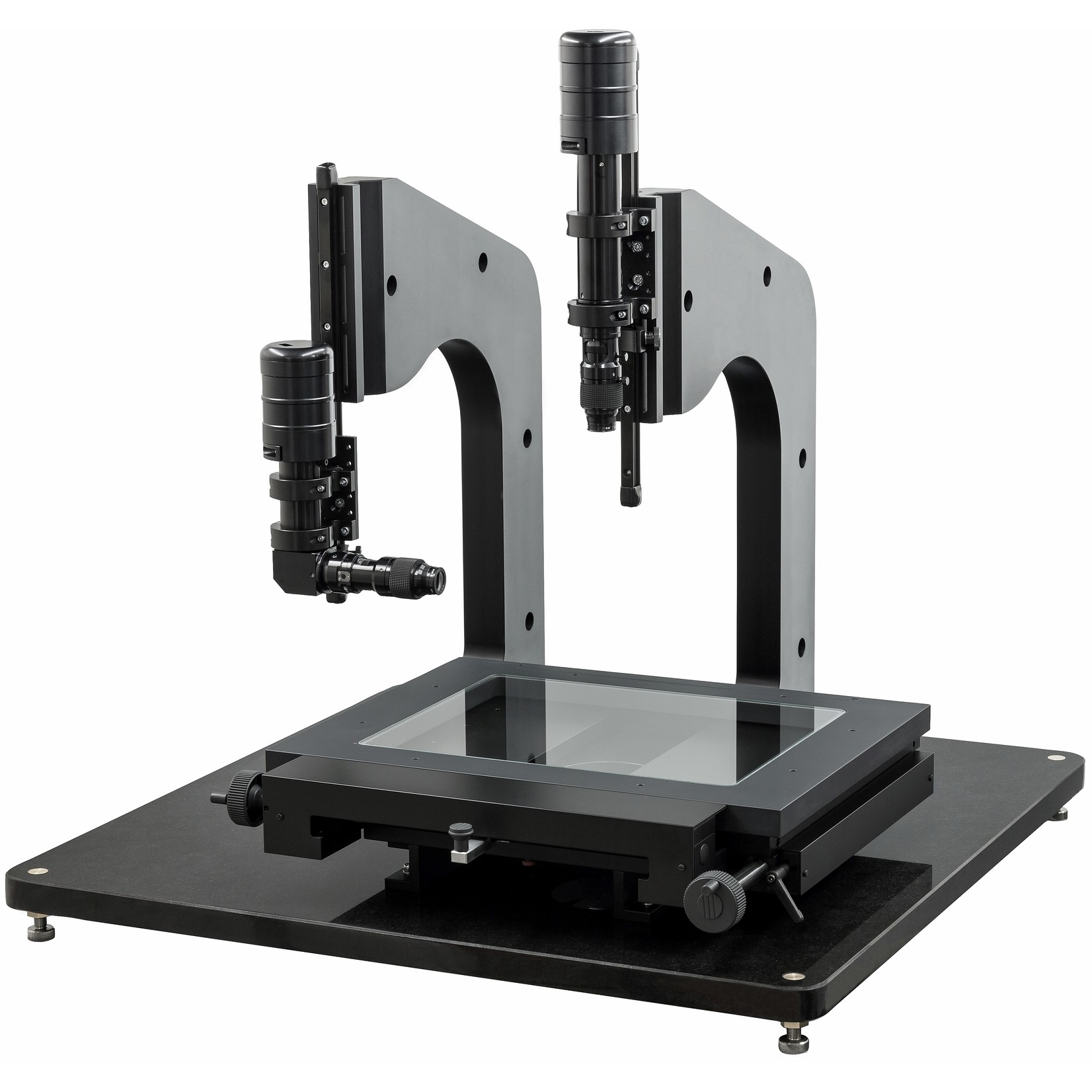

This special model is designed for special assembly and inspection tasks. The left optic is angled and adjusted to align with the same focus point as the horizontally mounted zoom optic. The 12x zoom optics with a working distance of 165 mm offer a zoom range from 40x to 300x magnification (field of view 10 mm to 1.5 mm). For height adjustment, the two zoom optics are mounted on precision guides with an additional fine focus adjustment. The guides are mounted on two extremely heavy aluminium holding arms with a guide groove. The base plate consists of a 40 mm thick granite plate with adjustable feet.
The manual cross measuring table with a measuring range of 300 x 230 mm can be supplied with a glass or metal insertion plate. A dimmable LED light plate is included in the delivery. A parallel bottom light can be supplied as an option. The zoom optics have two special LED ring lights with dimming as standard. Other types of illumination can also be used here as an option. The Metric MT measuring software is included in the scope of delivery.
Please contact us for other sizes of cross measuring stages, optical configurations or motorisation of the cross measuring stages and zoom systems.
