KITOTEC Kitozoom with HDMI camera and autofocus

Order number: KITO 10-HDMI
€2.700,00 *

* Price without VAT - plus Shipping costs

Zoom video microscope for visual inspection and quality control without PC. The HDMI camera with autofocus and 1920 x 1080 pixels offers magnifications from 8x to 450x.

In stock (3) (Delivery time: Immediately available)
What makes a good video microscope?

What criteria should we use to look for one? It must meet the points listed here: Excellent pictures, simple to operate, depth of focus, large zoom range, good lighting, autofocus feature, XY measurement table suitable for the task of measuring, and: Really good value for money!

The three models in the KITOZOOM HDMI range offer precisely these qualities


To minimize the difficulty of choosing, we first inform you of the technical characteristics and operation of the optical system. In the following the three standard models plus the possible options are described. The demands on the optical system, lighting, stand and XY measurement table are a result of the inspection- or measuring job. We must take care here to use a magnification which is geared to the required inspection task. If the following information is insufficient for you to choose the system or find the correct components, please call us. We will be glad to help you put the correct model together.

KITOZOOM: Optical system and HDMI camera


A zoom system consists of the following components: zoom unit with 6.5x optical magnification, adapter, accessory lens and C-mount adapter. This is in addition to the KITOCAM HDMI camera with autofocus feature. You do not require an extra PC, but connect the camera directly to a PC monitor with HDMI input.

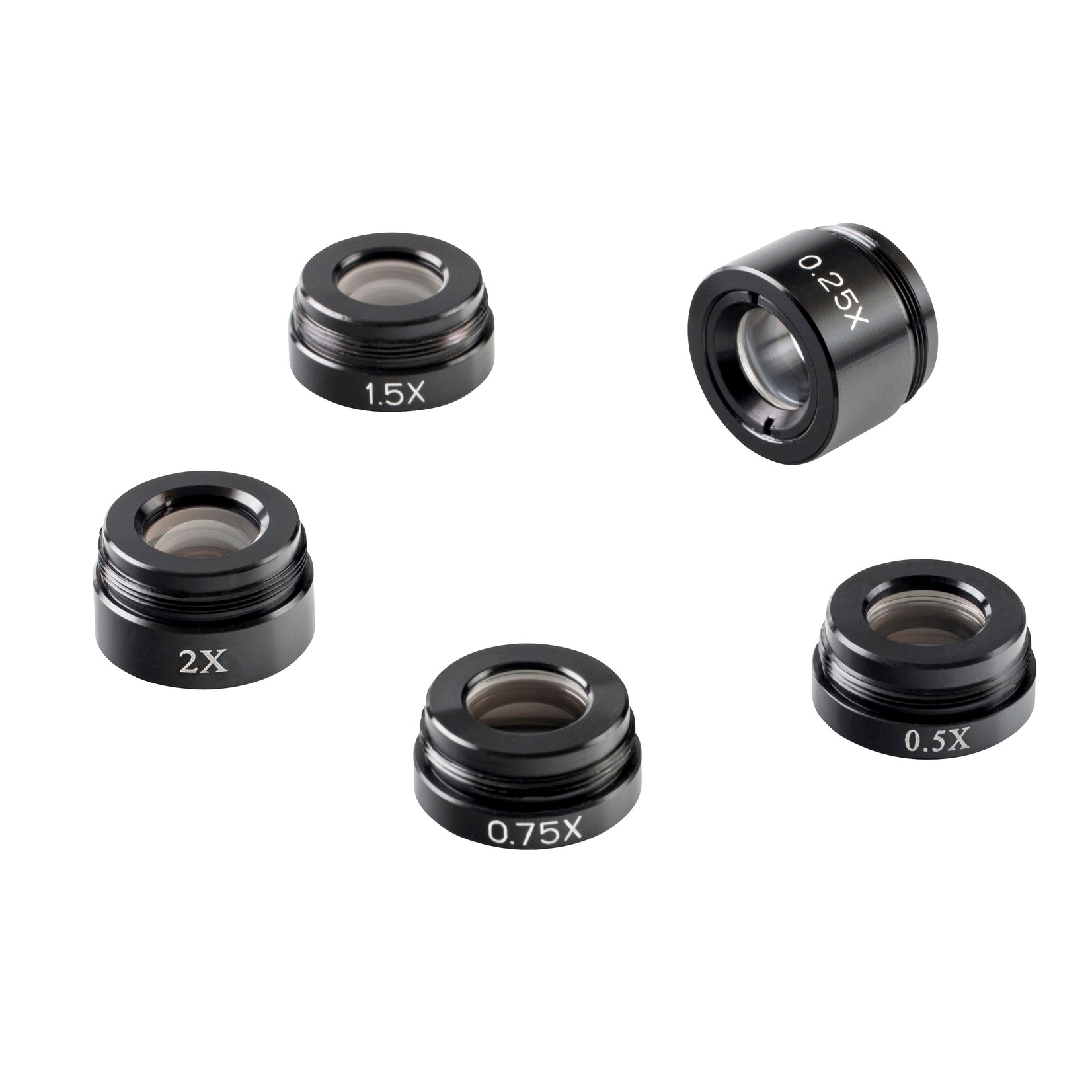

One of the great advantages of the zoom system is that within the zoom range the working distance (end of lens to test subject) does not need to be changed. The distance is adjusted at the highest magnification level and then remains in force for the entire zoom range. The KITOZOOM's scope of delivery includes an 0.5x accessory lens. This way we obtain two zoom ranges, which will be entirely sufficient in 95% of all cases. Four additional accessory lenses (0.25x, 0.75x, 1.5x and 2.0x) are available for larger visual fields or higher magnifications.


This autofocus camera is a CMOS camera with multiple interfaces (HDMI + WLAN + SD card) and autofocus function. The camera chip is a Sony CMOS sensor with ultra-high performance. HDMI and WLAN are used as a data transfer interface to an HDMI screen or computer. A sharp image can be easily achieved via the HDMI output using the built-in auto focus function. Manual focusing via the coarse/fine adjustment knob on the microscope is therefore not necessary in most cases. The additional option of transferring the image to a PC via WLAN is very convenient. The necessary software for the PC is included in the scope of delivery.



With attachment lens 0.25x:
Field of view: 60 mm - 9 mm
Working distance: 310 mm
Magnification: 8x to 54x (on 24" monitor)

With attachment lens 0.5x:
Field of view: 30 mm - 4.5 mm
Working distance: 170 mm
Magnification: 15x to 105x (on 24" monitor)

With attachment lens 0.75x:
Field of view: 20 mm - 3 mm
Working distance: 116 mm
Magnification: 25x to 160x (on 24" monitor)

Without attachment lens:
Field of view: 15 mm - 2 mm
Working distance: 85 mm
Magnification: 30x to 215x (on 24" monitor)

With attachment lens 1.5x:
Field of view: 10 mm - 1.5 mm
Working distance: 47 mm
Magnification: 50x to 330x (on 24" monitor)

With attachment lens 2.0x:
Field of view: 7 mm - 1 mm
Working distance: 27 mm
Magnification: 80x to 450x (on 24" monitor)



KITO 10-HDMI

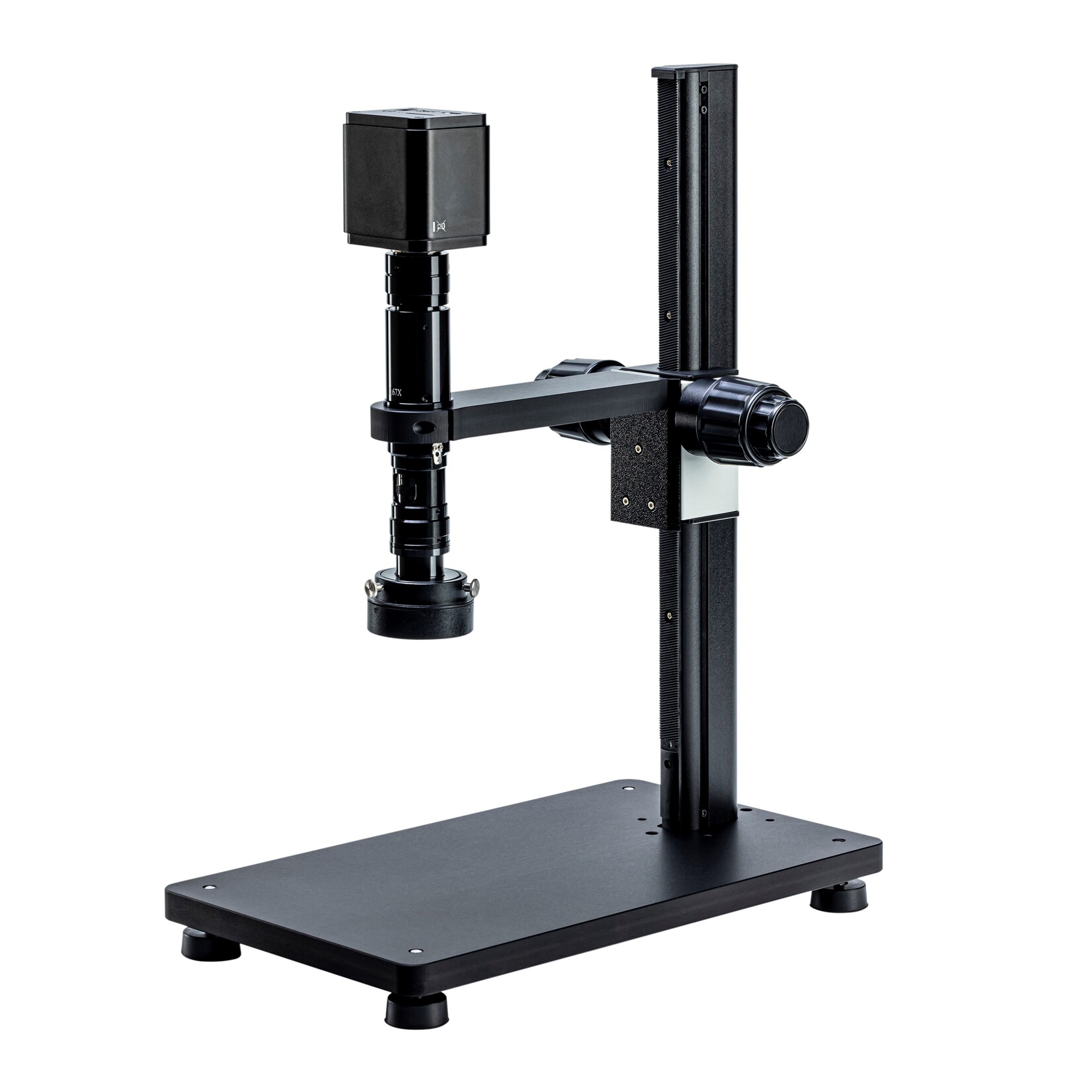

The KITO 10-HDMI model consists of the KITOZOOM zoom unit with HDMI camera, an LED ring light with dimmer, height adjustment using a rack and pinion system which offers quick- and fine adjustment, and the base plate. This 400 x 250 mm large plate is manufactured from 20 mm precision-milled and anodized aluminum. The base plate mounting feet can be individually adjusted in height and fixed. Weight: 10 kg, dimensions: 400 x 250 x 550 – 670 mm.

KITO 10-HDMI scope of delivery:

KITOZOOM video microscope series
Order. no. KITO 10-HDMI
KITOZOOM - grid zoom at six levels
- LED ring light with power pack, dimmable
- includes 0.5x accessory lens
- base plate 400 x 250 mm
- two zoom ranges - twelve zoom levels
- HDMI camera 1920 x 1080 pixels with autofocus


KITO 30-HDMI

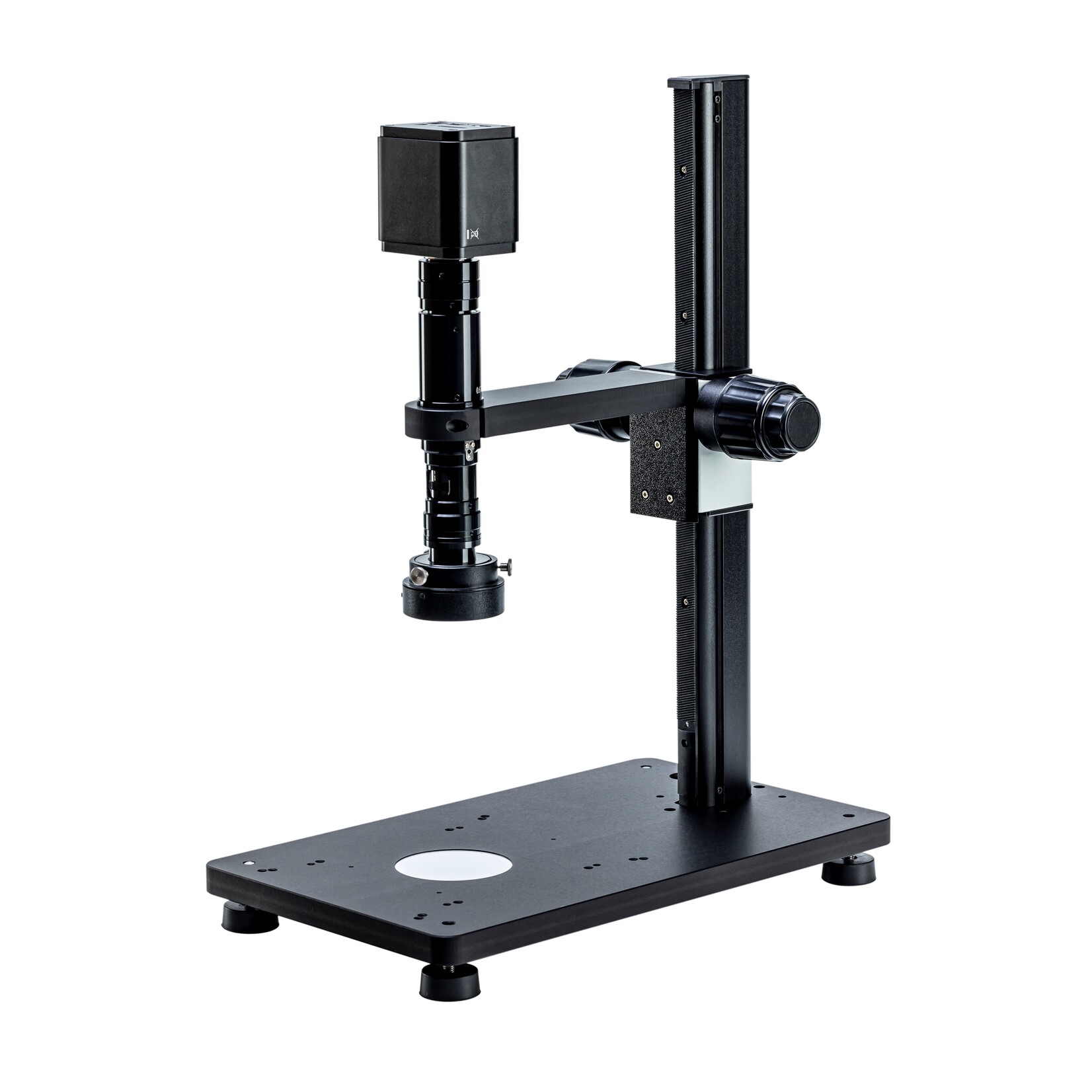

The KITO 30-HDMI model is a configuration with a 50 x 50 mm XY measurement table and two digital measuring spindles (Mitutoyo Digimatic). Inspection tasks which only require a simple but accurate distance measurement constantly occur in production or quality control. The KITOCAM HDMI camera is able to show crosshairs in various thicknesses and colors. The crosshairs make precise positioning of the origin possible. Then the dial gage is set to zero and the cross table moved using the dial gage and, after the end point has been determined using the crosshairs, the value is read off. As the dial gages have a data output, the values can be transmitted in a process-safe manner by means of an optional interface. Please note that this configuration has a precision of ± 5 µm via the 50 x 50 mm. Alternatively an XY measurement table with SCD system can be used which offers a precision of ± 2 µm. Weight: 12 kg, dimensions: 580 x 400 x 550 – 670 mm.

KITO 30-HDMI scope of delivery:

KITOZOOM video microscope series
Order. no. KITO 30-HDMI
KITOZOOM - grid zoom at six levels
- LED ring- and bottom light with power pack, dimmable
- includes 0.5x accessory lens
- base plate with 50 x 50 mm XY measurement table
- inc. two Mitutoyo dial gages
- two zoom ranges - twelve zoom levels
- HDMI camera 1920 x 1080 pixels with autofocus



KITO 40-HDMI

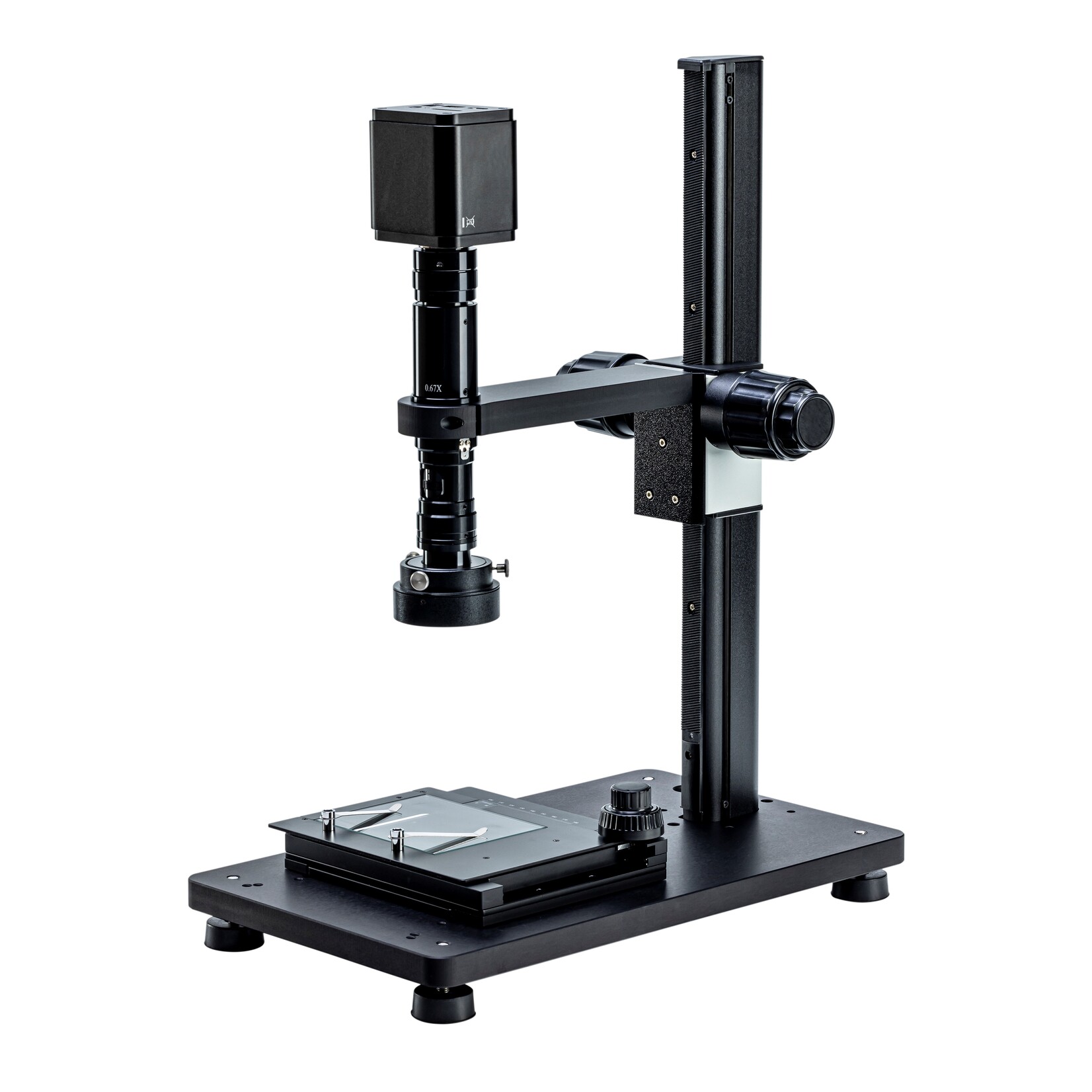

The KITO 40 model is a complete configuration with a separate height-adjustable positioning table. The adjustment range is 80 x 60 mm. The fine adjustment for height is made via the cross table unit. The KITO 40-HDMI is the ideal solution for the quick and easy positioning of small parts. As an option we offer a rotation table for the KITO 40-HDMI which can simply be placed into the cross table. The glass insert plate of the cross table is then used for the rotation table. We would however like to point out that for very fine positioning jobs in the 0.01 mm range it makes more sense to use a KITO 10-HDMI model with an appropriate precision cross slide table.. (see: EK-100 and EK-150 models). Weight: 13 kg, dimensions: 400 x 250 x 550 – 670 mm.

KITO 40-HDMI scope of delivery:

KITOZOOM video microscope series
Order. no. KITO 40-HDMI
KITOZOOM - grid zoom at six levels
- LED ring- and bottom light with power pack, dimmable
- 80 x 60 mm height-adjustable cross table
- includes 0.5x accessory lens
- base plate 400 x 250 mm
- two zoom ranges - twelve zoom levels
- HDMI camera 1920 x 1080 pixels with autofocus
