Here you will find the following spare parts for the three different assemblies of the V1 to V7:
- Aluminium base plate with graticule and acrylic ring

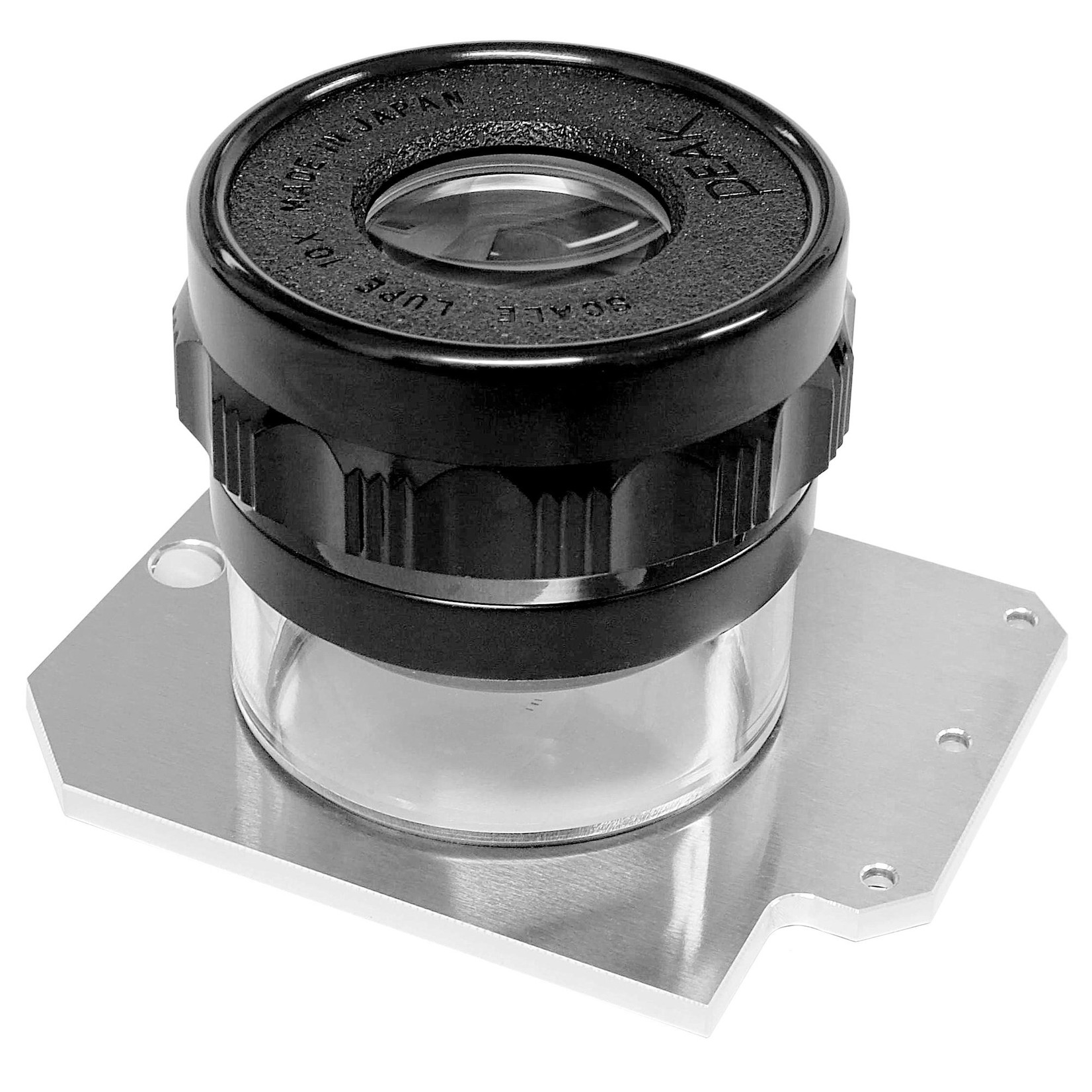

- Aluminium base plate with graticule, acrylic ring and 10x magnifier
- Aluminium base plate for microscope (ESM)
- Graticule single without base plate
- Magnifier 10x with acrylic ring single
Please note: As the dimensions of versions 1 - 7 are different, please send us the serial number of the electronic scale with your order. You will find this number on the factory test certificate or on the underside of the metal rod. Delivery without the serial number is not possible. We would also like to point out that the validity of the factory test certificate expires immediately if the base plate is replaced.
If you replace the graticule yourself, please refer to the documentation below. Please note that we do not assume any warranty for the measuring systems if the exchange is not carried out by us.
