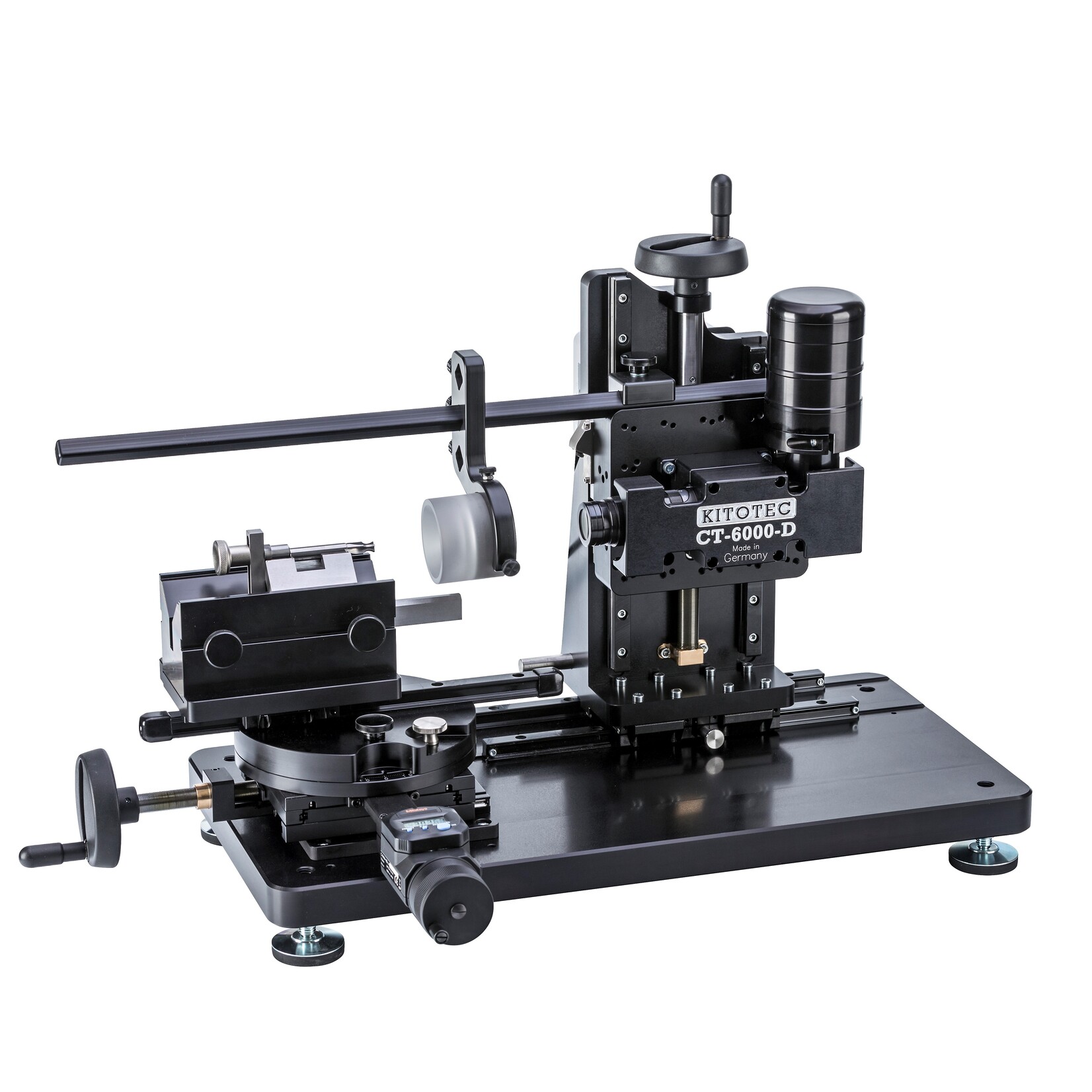

CT-6000-D: The new design and extremely fast change of attachment lenses enable you to measure tools from 30 mm to 50 µm in diameter with the CT-6000-D. Magnifications of up to 1,100x can be achieved on the screen. The 240° rotatable and movable mounting plate can be combined with a prism, an HSK mount, or a Rollomatic Concentricity Pro, ensuring perfect positioning of the tool to be measured. (HSK and Rollomatic optional)
The optics: This model features a motorized 10-step zoom system. At the highest zoom setting, the optics are adjusted to the object. The user can now work with precise focus across the entire zoom range without the need for readjustment. The CT-6000-D model comes with a 0.5x attachment lens. Removing this attachment lens doubles the magnification of the zoom system across the ten levels. Additional attachment lenses are available as an option for much higher magnification, for example for micro drills. The zoom levels are automatically changed using hotkeys. A USB 3.0 color camera with an optimal 5.6 megapixels is used as the camera.
Lighting: The tools must be perfectly illuminated. That is why we work with a 1,300-lumen LED cold light source. The connected split ring light produces homogeneous illumination. We use parallel blue lighting as a backlight to ensure that the light does not “creep” around the tools. For micro tools, a special LED ring light with diffuser and dimming is used in reflected light. (LED ring light and rear backlight optional)
Calibration: The software is already calibrated on delivery using a certified calibration disc. The advantage for you is that you no longer need us to check the calibration – no service costs. This check can be carried out in a few minutes and is documented in a corresponding report for your quality management system.
The software: Metric, which can be switched to 35 languages, has many standard functions and more than 40 manual or automatic special measuring functions for tools. It is supplemented by automatic edge detection and image processing functions, all of which can be used for tool measurement. Special functions for measuring the pitch of cooling channels in raw bars offer an additional option for precise control of manufacturing processes. All functions can be assigned to hotkeys.
In addition, it is possible to assign a separate combination of hotkeys with zoom levels and the corresponding lighting parameters to the hotkey levels for the incident light and backlight. This saves a lot of time and allows you to assign the measurement functions that can be used for the respective lighting type.
Updates: Free updates guarantee that you, as a customer, will not incur any expensive follow-up costs. Our download system makes you independent of our working hours. The latest drivers for the cameras and video clips in the help section will support you even after years of use.
The measuring systems: We use guides of the highest precision class with integrated measuring systems made in Germany.

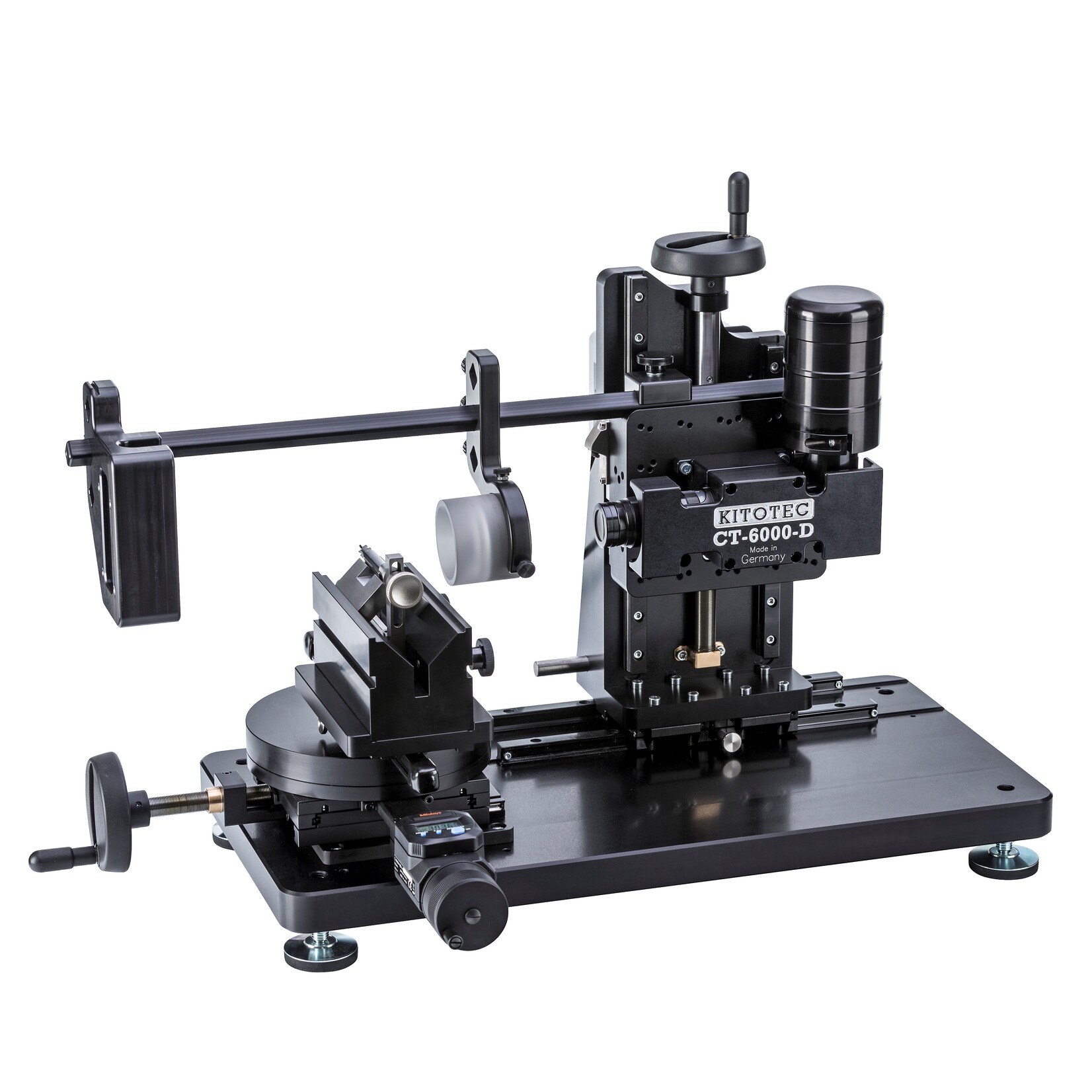

The tool holders: We offer various holders for perfect and, above all, fast positioning of your tools. The CT-6000-D comes with a prism with rear stop and insert prism. The Rollomatic Concentricity Pro, HSK holders from Diebold, and other systems are available as options. If you already have these devices, we will be happy to supply you with the appropriate adapter plates for the respective system. Further special accessories are available on request.
The universal mounting plate of the CT-6000-D allows you to manufacture your own mountings according to your requirements. We will be happy to provide you with the drawing or a step file of the mounting plate.
